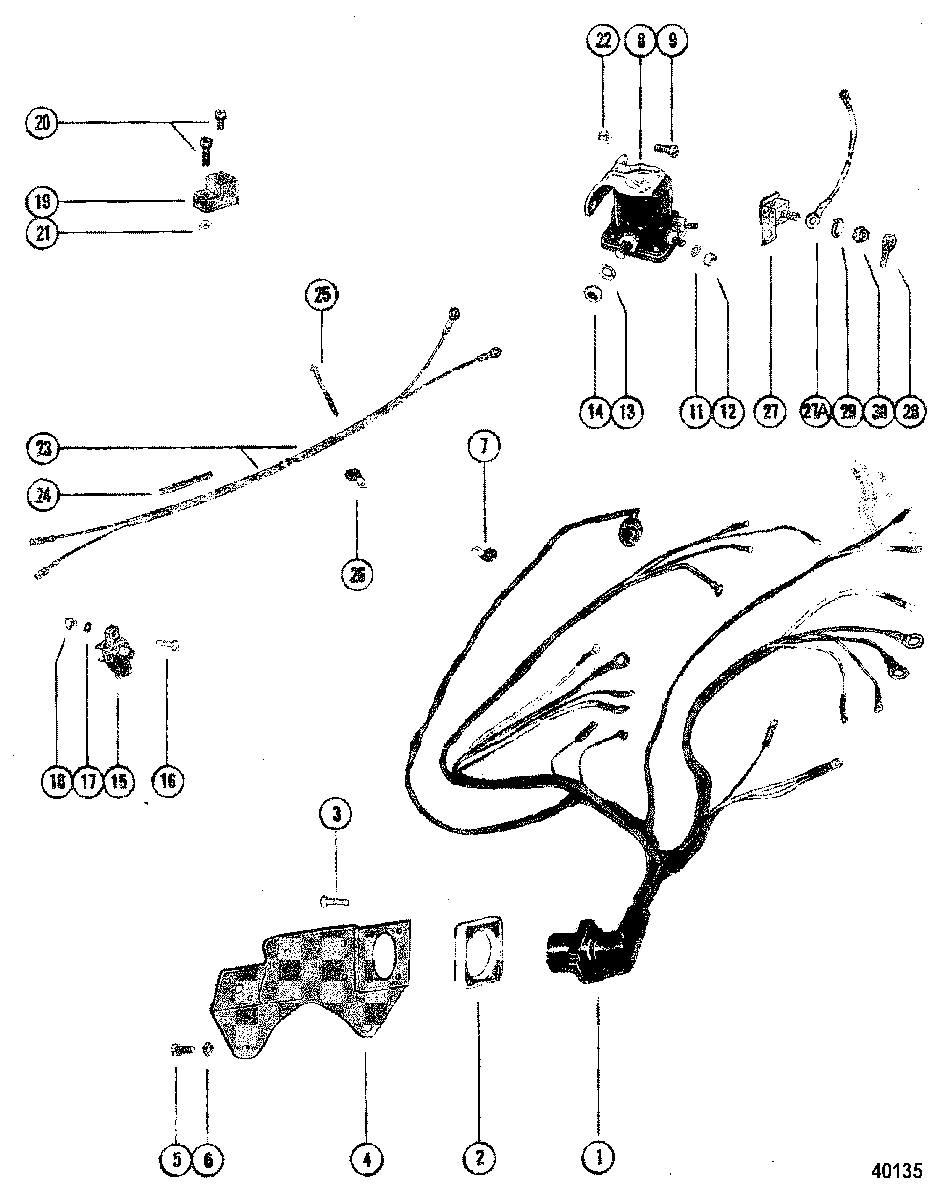

WIRING HARNESS, CIRCUIT BREAKER AND STARTER SOLENOID для Mercruiser - 260 (4 BBL.) GM 350 V-8 1978-1982 4908850 THRU 6218461

  • №
    Артикул
    Название
  • 1
    84-86676A2 HARNESS ASSEMBLY (Fused Engines)
    HARNESS ASSEMBLY (Fused Engines)
  • 1
    84-86676A2 HARNESS ASSEMBLY (Non-Fused Engines)
    SN# 5818557 & Below
    HARNESS ASSEMBLY (Non-Fused Engines)
    SN# 5818557 & Below
  • 1
    84-93177A1 HARNESS ASSEMBLY (Non-Fused Engines)
    SN# 5818558 & Up
    HARNESS ASSEMBLY (Non-Fused Engines)
    SN# 5818558 & Up
  • 2
    26079A2 PLATE, Wiring Harness to Mounting Bracket
    PLATE, Wiring Harness to Mounting Bracket
  • 3
    10-46718 SCREW, (#8-32 x 3/4), Wiring Harness Plate to Mounting Bracket
    SCREW, (#8-32 x 3/4), Wiring Harness Plate to Mounting Bracket
  • 4
    77440A1 BRACKET, Mounting, Harness and Circuit Breaker
    BRACKET, Mounting, Harness and Circuit Breaker
  • 5
    10-34354 SCREW, (.375-16 x 1.50), Mounting Bracket Attaching
    SCREW, (.375-16 x 1.50), Mounting Bracket Attaching
  • 6
    13-35048 LOCKWASHER, (.375), Mounting Bracket Screw
    LOCKWASHER, (.375), Mounting Bracket Screw
  • 7
    64884 TAB, Wiring Harness
    (USED WITH B-84-77441)
    TAB, Wiring Harness
    (USED WITH B-84-77441)
  • 7
    54-55098 J CLIP
    (USED WITH B-84-86676A2)
    J CLIP
    (USED WITH B-84-86676A2)
  • 8
    89-76416A1 SOLENOID ASSEMBLY, Starter
    SOLENOID ASSEMBLY, Starter
  • 9
    10-69028 SCREW, (.250-28 x .750) Stainless Steel, Starter Solenoid to Moutning Bracket
    SCREW, (.250-28 x .750) Stainless Steel, Starter Solenoid to Moutning Bracket
  • 11
    13-26996 LOCKWASHER, (#10) Stainless Steel, Starter Solenoid
    LOCKWASHER, (#10) Stainless Steel, Starter Solenoid
  • 12
    11-68219 NUT, (#10-32) Stainless Steel, Starter Solenoid
    NUT, (#10-32) Stainless Steel, Starter Solenoid
  • 13
    13-26993 LOCKWASHER, (.312), Starter Solenoid
    LOCKWASHER, (.312), Starter Solenoid
  • 14
    11-68292 NUT, (.312-18), Starter Solenoid
    NUT, (.312-18), Starter Solenoid
  • 15
    88-11178A01 BREAKER, Circuit (40 AMP)
    BREAKER, Circuit (40 AMP)
  • --
    11-68219 NUT, (#10-32) Stainless Steel, Circuit Breaker Terminal
    NUT, (#10-32) Stainless Steel, Circuit Breaker Terminal
  • --
    13-26996 LOCKWASHER, (#10) Stainless Steel, Circuit Breaker Terminal
    LOCKWASHER, (#10) Stainless Steel, Circuit Breaker Terminal
  • 16
    10-24637 SCREW, (#10-32 x .875), Circuit Breaker to Bracket
    SCREW, (#10-32 x .875), Circuit Breaker to Bracket
  • 17
    12-30164 WASHER, (.192 x .375 x .0312) Stainless Steel, Circuit Breaker Screw
    WASHER, (.192 x .375 x .0312) Stainless Steel, Circuit Breaker Screw
  • 18
    11-46438 NUT, (#10-32), Circuit Breaker Screw
    NUT, (#10-32), Circuit Breaker Screw
  • 19
    26-45916 SEAL, Oil
    SEAL, Oil
  • 20
    10-62568 SCREW, (#10-16 x .375), Terminal Block
    SCREW, (#10-16 x .375), Terminal Block
  • 20
    10-32228 SCREW, Terminal Block
    SCREW, Terminal Block
  • 21
    11-46438 NUT, (#10-32), Terminal Block Screw
    NUT, (#10-32), Terminal Block Screw
  • 22
    11-8267089 NUT, (.250-28), Starter Solenoid Screw
    NUT, (.250-28), Starter Solenoid Screw
  • 23
    84-78581A1 HARNESS ASSEMBLY, Alternator
    Use with Fused Engines
    HARNESS ASSEMBLY, Alternator
    Use with Fused Engines
  • 24
    5790811 SLEEVE
    Use with Fused Engines
    SLEEVE
    Use with Fused Engines
  • 26
    54-78945 J CLAMP, Harness Support-ALTERNATOR HARNESS USED WITH FUSED ENGINES
    Use with Fused Engines
    J CLAMP, Harness Support-ALTERNATOR HARNESS USED WITH FUSED ENGINES
    Use with Fused Engines
  • 27
    88-79023T56 FUSE ASSEMBLY (55 AMP)
    Use with Fused Engines SN# 5060218 & Below
    FUSE ASSEMBLY (55 AMP)
    Use with Fused Engines SN# 5060218 & Below
  • 27
    88-79023T90 FUSE ASSEMBLY, 90 Ampere
    SN# 5060219 THRU 5375022
    FUSE ASSEMBLY, 90 Ampere
    SN# 5060219 THRU 5375022
  • 27A
    84-79139A3 WIRE ASSEMBLY, Jumper, 90 Amp. Fuse to Circuit Breaker
    SN# 5060219 THRU 5375022
    WIRE ASSEMBLY, Jumper, 90 Amp. Fuse to Circuit Breaker
    SN# 5060219 THRU 5375022
  • 28
    85-79695T BOOT, Insulator - Black
    Fused Engines
    BOOT, Insulator - Black
    Fused Engines
  • 29
    13-26992 LOCKWASHER, (.250) Stainless Steel, Harness to Fuse Stud Nut
    Fused Engines
    LOCKWASHER, (.250) Stainless Steel, Harness to Fuse Stud Nut
    Fused Engines
  • 30
    11-21825 NUT, (.250-28), Harness to Fuse Stud
    Fused Engines
    NUT, (.250-28), Harness to Fuse Stud
    Fused Engines
  • -
    84-94227A2 RESISTOR WIRE KIT
    RESISTOR WIRE KIT
