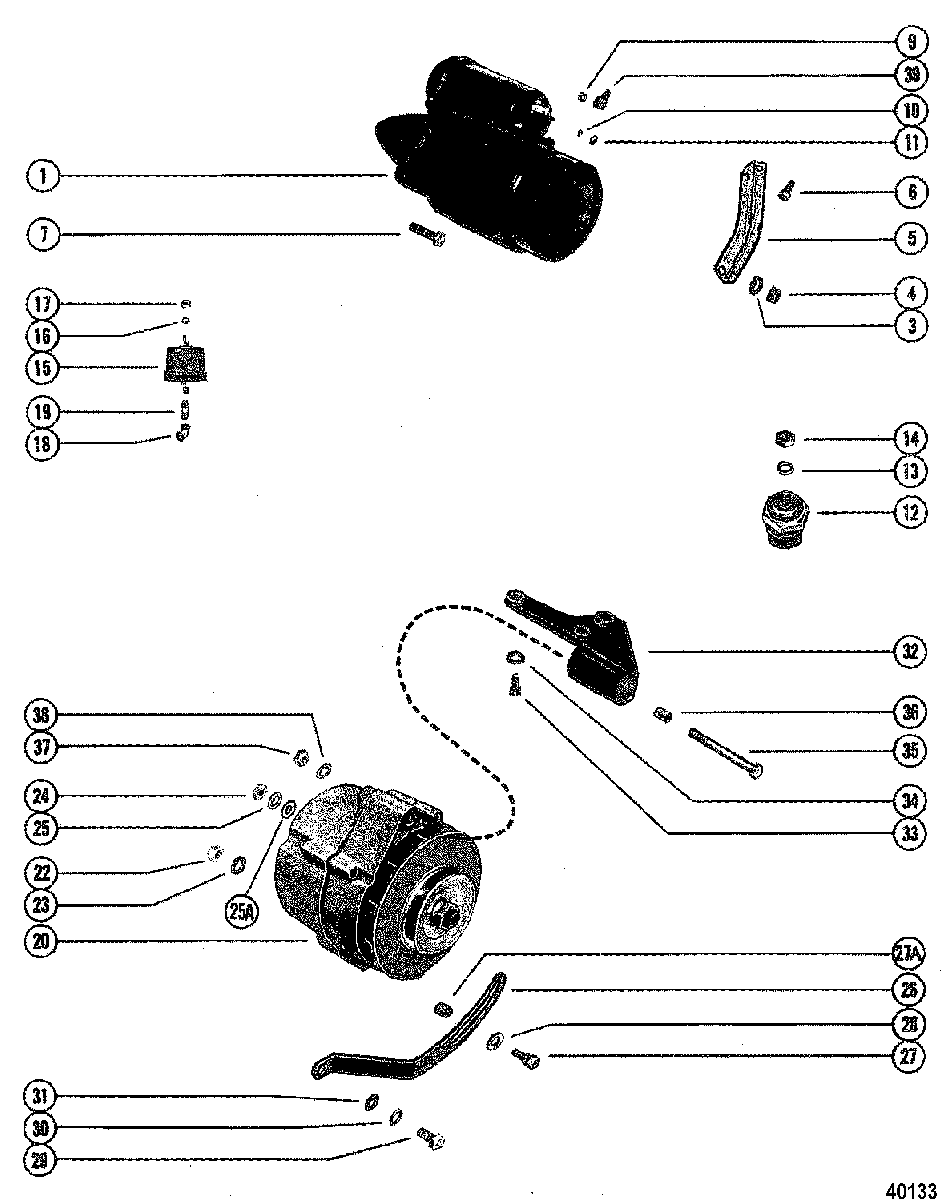

STARTER MOTOR AND ALTERNATOR для Mercruiser - 260 (4 BBL.) GM 350 V-8 1978-1982 4908850 THRU 6218461

  • №
    Артикул
    Название
  • 1
    50-8M0090697 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 3
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel, Starter Motor Stud
    WASHER, (.281 x .500 x .060) Stainless Steel, Starter Motor Stud
  • 4
    11-29031 NUT, (1/4-20), Starter Motor Stud
    NUT, (1/4-20), Starter Motor Stud
  • 5
    35363 BRACE, Starter Motor
    BRACE, Starter Motor
  • 6
    10-35765A1 SCREW, (5/8), Brace to Engine
    SCREW, (5/8), Brace to Engine
  • 7
    10-94435001 BOLT, (.375-16 x 4.600), Starter Motor to Cylinder Block
    BOLT, (.375-16 x 4.600), Starter Motor to Cylinder Block
  • 7
    10-8053433 BOLT, (1 15/16), Starter Motor to Cylinder Block (1 15/16")
    BOLT, (1 15/16), Starter Motor to Cylinder Block (1 15/16")
  • 9
    11-32219 NUT, (.375-16), Starter Terminal-NON METRIC
    NUT, (.375-16), Starter Terminal-NON METRIC
  • 9
    11-400214 NUT, (M10 x 1.5), Starter Terminal-METRIC
    NUT, (M10 x 1.5), Starter Terminal-METRIC
  • 10
    13-26995 LOCKWASHER, (#8) Stainless Steel, Starter Terminal
    LOCKWASHER, (#8) Stainless Steel, Starter Terminal
  • 11
    11-26419 NUT, (#8-32) Brass, Starter Terminal
    NUT, (#8-32) Brass, Starter Terminal
  • 12
    97258A1 SENDER ASSEMBLY, Water Temperature
    SENDER ASSEMBLY, Water Temperature
  • 13
    13-26996 LOCKWASHER, (#10) Stainless Steel, Water Temperature Sender
    LOCKWASHER, (#10) Stainless Steel, Water Temperature Sender
  • 14
    11-68219 NUT, (#10-32) Stainless Steel, Water Temperature Sender
    NUT, (#10-32) Stainless Steel, Water Temperature Sender
  • 15
    8M0068784 SENDER
    SENDER
  • 16
    13-26996 LOCKWASHER, (#10) Stainless Steel, Oil Pressure Sender
    LOCKWASHER, (#10) Stainless Steel, Oil Pressure Sender
  • 17
    11-68219 NUT, (#10-32) Stainless Steel, Oil Pressure Sender
    NUT, (#10-32) Stainless Steel, Oil Pressure Sender
  • 18
    22-46932 ELBOW, Oil Pressure Sender
    ELBOW, Oil Pressure Sender
  • 19
    22-885153 NIPPLE, Oil Pressure Sender
    NIPPLE, Oil Pressure Sender
  • 20
    78403A2 ALTERNATOR ASSEMBLY (MOTOROLA #8MR2023F)
    ALTERNATOR ASSEMBLY (MOTOROLA #8MR2023F)
  • 22
    11-30968 NUT, (10-24), Ground Terminal
    NUT, (10-24), Ground Terminal
  • 23
    13-26996 LOCKWASHER, (#10) Stainless Steel, Ground Terminal Nut
    LOCKWASHER, (#10) Stainless Steel, Ground Terminal Nut
  • 24
    11-20890 NUT, (.250-20), Harness to Battery Terminal
    NUT, (.250-20), Harness to Battery Terminal
  • 25
    13-26992 LOCKWASHER, (.250) Stainless Steel, Harness to Battery Terminal
    LOCKWASHER, (.250) Stainless Steel, Harness to Battery Terminal
  • 25A
    12-96457 WASHER, Phenolic (.27 x .81 x .062), Boot Attaching (PHENOLIC)
    WASHER, Phenolic (.27 x .81 x .062), Boot Attaching (PHENOLIC)
  • 26
    85013T BRACE, Alternator Adjusting
    BRACE, Alternator Adjusting
  • 27
    10-29198 SCREW AND LOCKWASHER, (.312-18 x .875), Brace to Alternator
    Non-Power Steering
    SCREW AND LOCKWASHER, (.312-18 x .875), Brace to Alternator
    Non-Power Steering
  • 27
    10-73657 SCREW, (.312-18 x 1.50), Brace to Alternator
    With Power Steering
    SCREW, (.312-18 x 1.50), Brace to Alternator
    With Power Steering
  • 27A
    23-90523 BUSHING, Brace Screw
    With Power Steering
    BUSHING, Brace Screw
    With Power Steering
  • 28
    12-26168 WASHER, Brace Screw
    WASHER, Brace Screw
  • 29
    10-98261 SCREW, (.375-16 x .75), Alternator Brace to Cylinder Block
    SCREW, (.375-16 x .75), Alternator Brace to Cylinder Block
  • 30
    13-35048 LOCKWASHER, (.375), Alternator Brace Screw
    LOCKWASHER, (.375), Alternator Brace Screw
  • 31
    12-20553 WASHER, (.406 x .734 x .063), Alternator Brace Screw
    WASHER, (.406 x .734 x .063), Alternator Brace Screw
  • 32
    48104A1 BRACKET, Alternator Mounting
    BRACKET, Alternator Mounting
  • 33
    10-76926 SCREW, (.375-16 x .875), Alternator Bracket to Exhaust Manifold
    SCREW, (.375-16 x .875), Alternator Bracket to Exhaust Manifold
  • 34
    13-35048 LOCKWASHER, (.375), Alternator Bracket Screw
    LOCKWASHER, (.375), Alternator Bracket Screw
  • 35
    10-48308 SCREW, (.375-24 x 3.750), Alternator to Alternator Bracket
    SCREW, (.375-24 x 3.750), Alternator to Alternator Bracket
  • 36
    23-33186 BUSHING, Alternator to Bracket Screw
    BUSHING, Alternator to Bracket Screw
  • 37
    12-20553 WASHER, (.406 x .734 x .063), Alternator Bracket Screw
    WASHER, (.406 x .734 x .063), Alternator Bracket Screw
  • 38
    11-23161 NUT, (.375-24), Alternator Bracket Screw
    NUT, (.375-24), Alternator Bracket Screw
  • 39
    85-79695T BOOT, Insulator - Black, Starter Cable
    BOOT, Insulator - Black, Starter Cable
