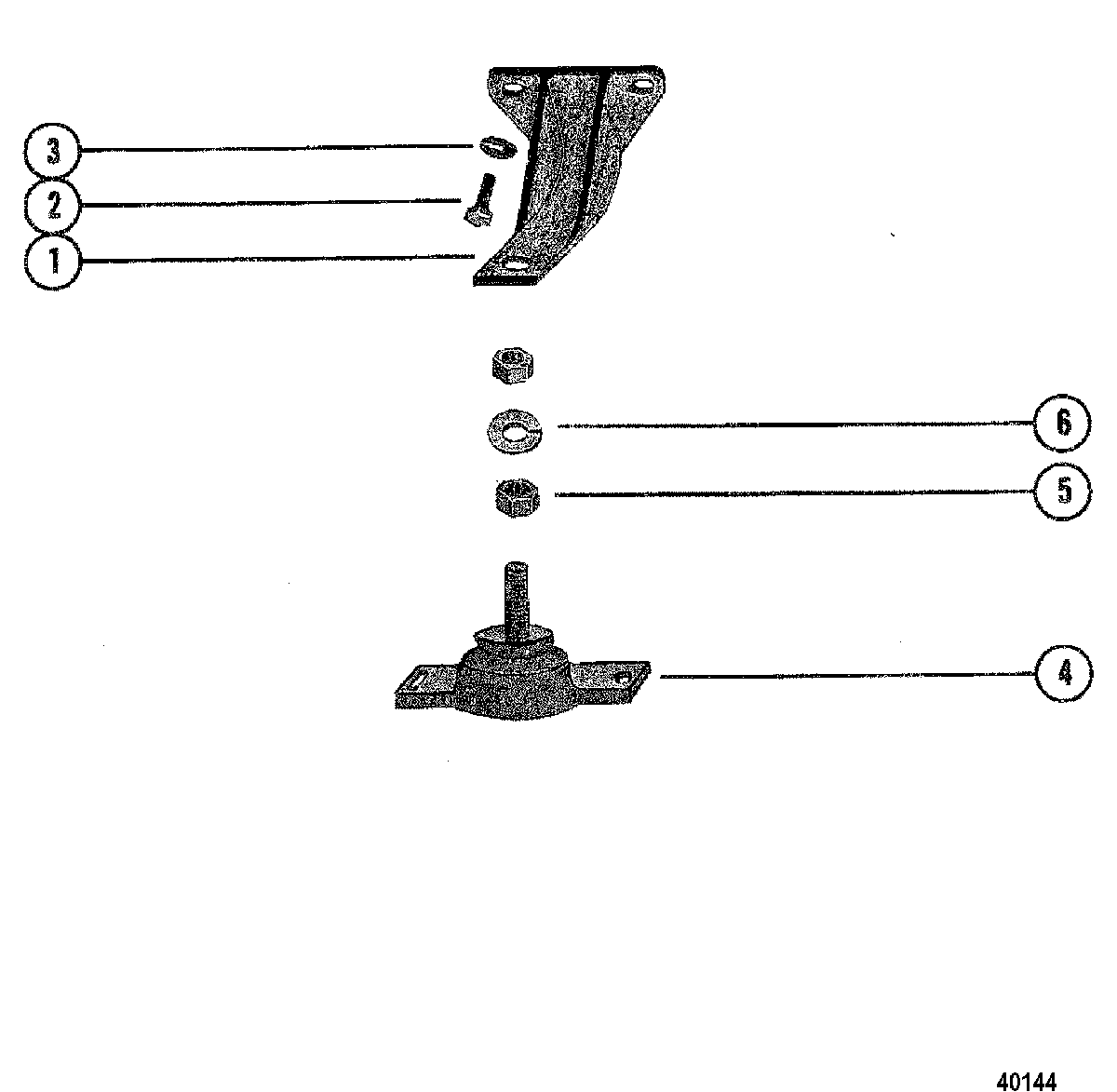

ENGINE MOUNTING для Mercruiser - 260 (4 BBL.) GM 350 V-8 1978-1982 4908850 THRU 6218461

  • №
    Артикул
    Название
  • 1
    79550A1 BRACKET, Mounting, Engine
    BRACKET, Mounting, Engine
  • 2
    10-37612 SCREW, (.375-16 x 1.250), Mounting Bracket to Engine
    Port
    SCREW, (.375-16 x 1.250), Mounting Bracket to Engine
    Port
  • 2
    10-37612 SCREW, (.375-16 x 1.250), Mounting Bracket to Engine
    Starboard
    SCREW, (.375-16 x 1.250), Mounting Bracket to Engine
    Starboard
  • 2
    10-48424 SCREW, (.375-16 x 1.620), Mounting Bracket to Engine
    Starboard
    SCREW, (.375-16 x 1.620), Mounting Bracket to Engine
    Starboard
  • 3
    13-35048 LOCKWASHER, (.375), Mounting Bracket Screw
    Port
    LOCKWASHER, (.375), Mounting Bracket Screw
    Port
  • 3
    13-35048 LOCKWASHER, (.375), Mounting Bracket Screw
    Starboard
    LOCKWASHER, (.375), Mounting Bracket Screw
    Starboard
  • 3
    13-35048 LOCKWASHER, (.375), Mounting Bracket Screw
    LOCKWASHER, (.375), Mounting Bracket Screw
  • 4
    66284A2 BRACKET, Mounting
    BRACKET, Mounting
  • 5
    11-20739 NUT, (.750-16), Jam, Mounting Bracket
    NUT, (.750-16), Jam, Mounting Bracket
  • 6
    13-68102 LOCKWASHER, (.750), Mounting Bracket
    LOCKWASHER, (.750), Mounting Bracket
