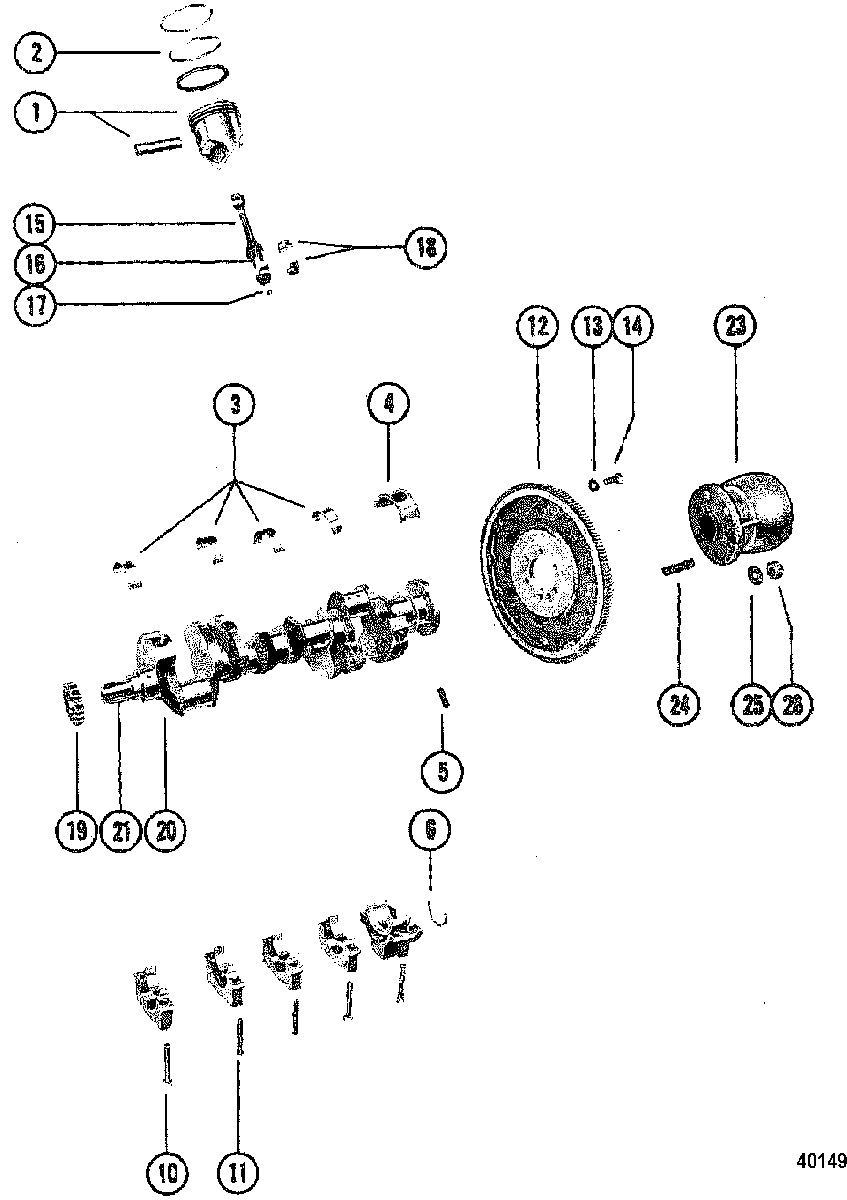

CRANKSHAFT AND PISTONS для Mercruiser - 260 (4 BBL.) GM 350 V-8 1978-1982 4908850 THRU 6218461

  • №
    Артикул
    Название
  • 1
    735-850097 PISTON ASSEMBLY (.001 O.S.)
    Use Standard Ring
    PISTON ASSEMBLY (.001 O.S.)
    Use Standard Ring
  • 1
    735-850098 PISTON ASSEMBLY (.030 O.S.)
    PISTON ASSEMBLY (.030 O.S.)
  • 2
    39-17464 RING, PISTON - 8 SETS (STANDARD)
    RING, PISTON - 8 SETS (STANDARD)
  • 2
    39-17465 RING, PISTON - 8 SETS (.030 O.S.)
    RING, PISTON - 8 SETS (.030 O.S.)
  • 3
    23-818465 BEARING, CRANKSHAFT MAIN (STANDARD)
    BEARING, CRANKSHAFT MAIN (STANDARD)
  • 3
    23-818466 BEARING, CRANKSHAFT MAIN (.002 U.S.)
    BEARING, CRANKSHAFT MAIN (.002 U.S.)
  • 3
    23-818467 BEARING, CRANKSHAFT MAIN (.010 U.S.)
    BEARING, CRANKSHAFT MAIN (.010 U.S.)
  • 3
    23-818468 BEARING, CRANKSHAFT MAIN (.020 U.S.)
    BEARING, CRANKSHAFT MAIN (.020 U.S.)
  • 4
    23-818465 BEARING, CRANKSHAFT MAIN - REAR (STANDARD)
    BEARING, CRANKSHAFT MAIN - REAR (STANDARD)
  • 4
    23-818466 BEARING, CRANKSHAFT MAIN - REAR (.001 U.S.)
    BEARING, CRANKSHAFT MAIN - REAR (.001 U.S.)
  • 4
    23-818467 BEARING, CRANKSHAFT MAIN - REAR (.010 U.S.)
    BEARING, CRANKSHAFT MAIN - REAR (.010 U.S.)
  • 4
    23-818468 BEARING, CRANKSHAFT MAIN - REAR (.020 U.S.)
    BEARING, CRANKSHAFT MAIN - REAR (.020 U.S.)
  • 5
    17-24813 PIN, (1/4 In.), DOWEL - REAR CRANKSHAFT HEARING CAP
    PIN, (1/4 In.), DOWEL - REAR CRANKSHAFT HEARING CAP
  • 6
    26-814622 SEAL, Oil, REAR CRANKSHAFT BEARING CAP
    SEAL, Oil, REAR CRANKSHAFT BEARING CAP
  • 10
    10-54788 BOLT, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK (2 31/32")
    BOLT, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK (2 31/32")
  • 11
    16-54790 STUD, CRANKSHAFT BEARING CAP AND OIL PAN BAFFLE
    STUD, CRANKSHAFT BEARING CAP AND OIL PAN BAFFLE
  • --
    17-24813 PIN, (1/4 In.), DOWEL - CRANKCASE FRONT END COVER AND OIL PUMP
    PIN, (1/4 In.), DOWEL - CRANKCASE FRONT END COVER AND OIL PUMP
  • 12
    222-6355 FLYWHEEL ASSEMBLY
    FLYWHEEL ASSEMBLY
  • 13
    13-39131 LOCKWASHER, (.437), FLYWHEEL SCREW
    LOCKWASHER, (.437), FLYWHEEL SCREW
  • 14
    10-845757 SCREW, (.437-20 x 1.00), FLYWHEEL TO CRANKSHAFT
    SCREW, (.437-20 x 1.00), FLYWHEEL TO CRANKSHAFT
  • 15
    614-8164T CONNECTING ROD ASSEMBLY
    SN# 5500136 & Below
    CONNECTING ROD ASSEMBLY
    SN# 5500136 & Below
  • 15
    614-8164T CONNECTING ROD
    SN# 5500137 & Up
    CONNECTING ROD
    SN# 5500137 & Up
  • 16
    10-85802 SCREW, (.375-24 x Special), CONNECTING ROD CAP
    SCREW, (.375-24 x Special), CONNECTING ROD CAP
  • 17
    11-37493 NUT, (.375-24), CONNECTING ROD CAP BOLT
    NUT, (.375-24), CONNECTING ROD CAP BOLT
  • 18
    23-85701 BEARING (PAIR), CONNECTING ROD (STANDARD)
    BEARING (PAIR), CONNECTING ROD (STANDARD)
  • 18
    23-85702 BEARING (PAIR), CONNECTING ROD (.001 U.S.)
    BEARING (PAIR), CONNECTING ROD (.001 U.S.)
  • 18
    23-85703 BEARING (PAIR), CONNECTING ROD (.002 U.S.)
    BEARING (PAIR), CONNECTING ROD (.002 U.S.)
  • 18
    23-85704 BEARING (PAIR), CONNECTING ROD (.010 U.S.)
    BEARING (PAIR), CONNECTING ROD (.010 U.S.)
  • 18
    23-85705 BEARING (PAIR), CONNECTING ROD (.020 U.S.)
    BEARING (PAIR), CONNECTING ROD (.020 U.S.)
  • 19
    17161A1 SPROCKET, CRANKSHAFT TIMING (22 TEETH)
    (See Note)
    SPROCKET, CRANKSHAFT TIMING (22 TEETH)
    (See Note)
  • 20
    429-6369 CRANKSHAFT
    CRANKSHAFT
  • 21
    28-34466 KEY, CRANKSHAFT PULLEY AND BALANCER
    KEY, CRANKSHAFT PULLEY AND BALANCER
  • 23
    76850A2 COUPLING ASSEMBLY
    COUPLING ASSEMBLY
  • 24
    16-98532A1 STUD, COUPLING TO FLYWHEEL
    STUD, COUPLING TO FLYWHEEL
  • 25
    12-34567 WASHER, COUPLING STUD
    WASHER, COUPLING STUD
  • 26
    11-8M2008293 NUT, (.437-20), COUPLING STUD
    NUT, (.437-20), COUPLING STUD
