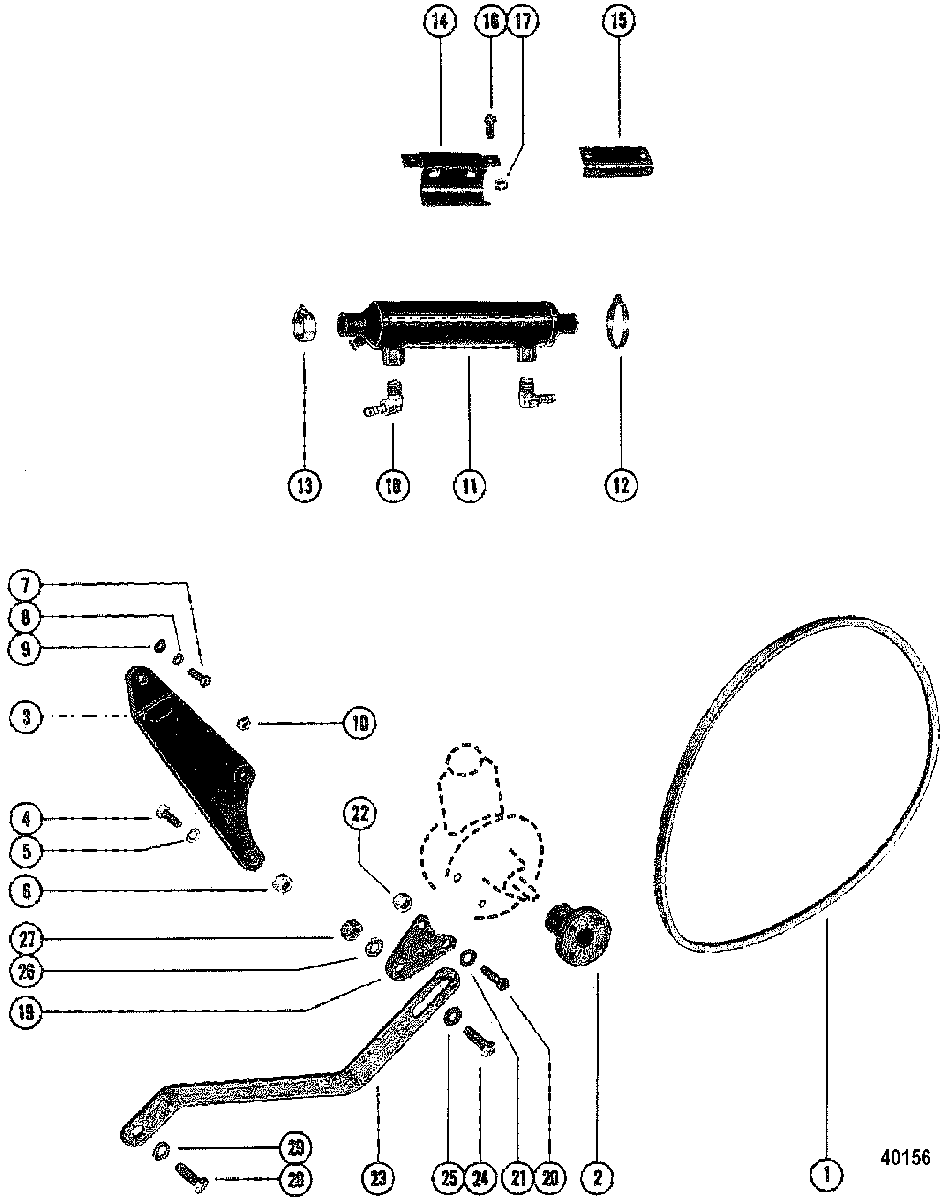

POWER STEERING COMPONENTS(USES HOSES) для Mercruiser - 260 (4 BBL.) GM 350 V-8 1978-1982 4908850 THRU 6218461

  • №
    Артикул
    Название
  • 1
    57-77274 V BELT, PUMP (32 1/2")
    Low Mounted Power Steering Pump
    V BELT, PUMP (32 1/2")
    Low Mounted Power Steering Pump
  • 1
    57-91035Q1 V BELT, PUMP (49 1/2")
    High Mounted Power Steering Pump
    V BELT, PUMP (49 1/2")
    High Mounted Power Steering Pump
  • 2
    73873A1 PULLEY, STEERING PUMP
    PULLEY, STEERING PUMP
  • 3
    57611T BRACKET, PUMP
    Low Mounted Power Steering Pump
    BRACKET, PUMP
    Low Mounted Power Steering Pump
  • 3
    90981A2 BRACKET, PUMP
    High Mounted Power Steering Pump
    BRACKET, PUMP
    High Mounted Power Steering Pump
  • 4
    10-32132 SCREW, (.375-16 x 1.750), PUMP TO BRACKET
    (Non-Metric)
    SCREW, (.375-16 x 1.750), PUMP TO BRACKET
    (Non-Metric)
  • 4
    10-40001203 SCREW, (M10 x 45), PUMP TO BRACKET
    (Metric)
    SCREW, (M10 x 45), PUMP TO BRACKET
    (Metric)
  • 5
    13-35048 LOCKWASHER, (.375), PUMP SCREW
    (Non-Metric)
    LOCKWASHER, (.375), PUMP SCREW
    (Non-Metric)
  • 5
    13-400248 LOCKWASHER, (M10), PUMP SCREW
    (Metric)
    LOCKWASHER, (M10), PUMP SCREW
    (Metric)
  • 6
    23-90523 BUSHING, PUMP SCREW
    (Non-Metric)
    BUSHING, PUMP SCREW
    (Non-Metric)
  • 6
    23-90523 SPACER, (.420 x .750 x .440) Cad Plate, PUMP SCREW
    (Metric)
    SPACER, (.420 x .750 x .440) Cad Plate, PUMP SCREW
    (Metric)
  • 7
    10-34354 SCREW, (.375-16 x 1.50), BRACKET TO CYLINDER BLOCK
    SCREW, (.375-16 x 1.50), BRACKET TO CYLINDER BLOCK
  • 8
    13-35048 LOCKWASHER, (.375), BRACKET SCREW
    LOCKWASHER, (.375), BRACKET SCREW
  • 9
    12-38622 WASHER, (.391 x 1.00 x .125), BRACKET SCREW (FOR SLOT)
    WASHER, (.391 x 1.00 x .125), BRACKET SCREW (FOR SLOT)
  • 10
    11-86317 NUT, PUMP STUD
    (Non-Metric)
    NUT, PUMP STUD
    (Non-Metric)
  • 10
    11-90517 NUT, (M10), PUMP STUD
    (Metric)
    NUT, (M10), PUMP STUD
    (Metric)
  • 11
    49770 COOLER, Oil
    SN# 5045611 & Below
    COOLER, Oil
    SN# 5045611 & Below
  • 11
    99356A2 COOLER, Oil
    SN# 5045612 & Up
    COOLER, Oil
    SN# 5045612 & Up
  • 12
    54-815504228 CLAMP, OIL COOLER TO BRACKET
    CLAMP, OIL COOLER TO BRACKET
  • 13
    54-64324 CLAMP, HOSE ATTACHING TO OIL COOLER
    CLAMP, HOSE ATTACHING TO OIL COOLER
  • 14
    49748A1 BRACKET, OIL COOLER
    BRACKET, OIL COOLER
  • 15
    49735A1 BRACKET, OIL COOLER MOUNT
    BRACKET, OIL COOLER MOUNT
  • 16
    10-20359 SCREW, (.375-16 x 1.00), OIL COOLER MOUNT BRACKET
    SCREW, (.375-16 x 1.00), OIL COOLER MOUNT BRACKET
  • 17
    11-82670912 NUT, (.375-16), MOUNT BRACKET SCREW
    NUT, (.375-16), MOUNT BRACKET SCREW
  • 18
    22-37760 ELBOW, OIL COOLER
    ELBOW, OIL COOLER
  • 19
    85011A1 BRACKET, HYDRAULIC PUMP
    BRACKET, HYDRAULIC PUMP
  • 20
    10-26487 SCREW, (.375-16 x 1.12), BRACKET TO PUMP
    (Non-Metric)
    SCREW, (.375-16 x 1.12), BRACKET TO PUMP
    (Non-Metric)
  • 20
    10-40001195 SCREW, (M10 x 30), BRACKET TO PUMP
    (Metric)
    SCREW, (M10 x 30), BRACKET TO PUMP
    (Metric)
  • 21
    13-35048 LOCKWASHER, (.375), BRACKET SCREW
    (Non-Metric)
    LOCKWASHER, (.375), BRACKET SCREW
    (Non-Metric)
  • 21
    13-400248 LOCKWASHER, (M10), BRACKET SCREW
    (Metric)
    LOCKWASHER, (M10), BRACKET SCREW
    (Metric)
  • 22
    23-905201 SPACER, BRACKET SCREW
    (Non-Metric)
    SPACER, BRACKET SCREW
    (Non-Metric)
  • 22
    23-905201 SPACER, BRACKET SCREW
    (Metric)
    SPACER, BRACKET SCREW
    (Metric)
  • 23
    88777 BRACE, POWER STEERING PUMP
    BRACE, POWER STEERING PUMP
  • 24
    10-37612 SCREW, (.375-16 x 1.250), BRACE TO BRACKET
    SCREW, (.375-16 x 1.250), BRACE TO BRACKET
  • 24
    10-34353 SCREW, (.375-16 x 1.00), BRACE TO BRACKET
    SCREW, (.375-16 x 1.00), BRACE TO BRACKET
  • 25
    12-34714 WASHER, BRACE SCREW
    WASHER, BRACE SCREW
  • 26
    13-35048 LOCKWASHER, (.375), BRACE SCREW
    LOCKWASHER, (.375), BRACE SCREW
  • 27
    11-32219 NUT, (.375-16), BRACE SCREW
    NUT, (.375-16), BRACE SCREW
  • 28
    10-76926 SCREW, (.375-16 x .875), BRACE TO ENGINE
    SCREW, (.375-16 x .875), BRACE TO ENGINE
  • 29
    13-35048 LOCKWASHER, (.375), BRACE SCREW
    LOCKWASHER, (.375), BRACE SCREW
