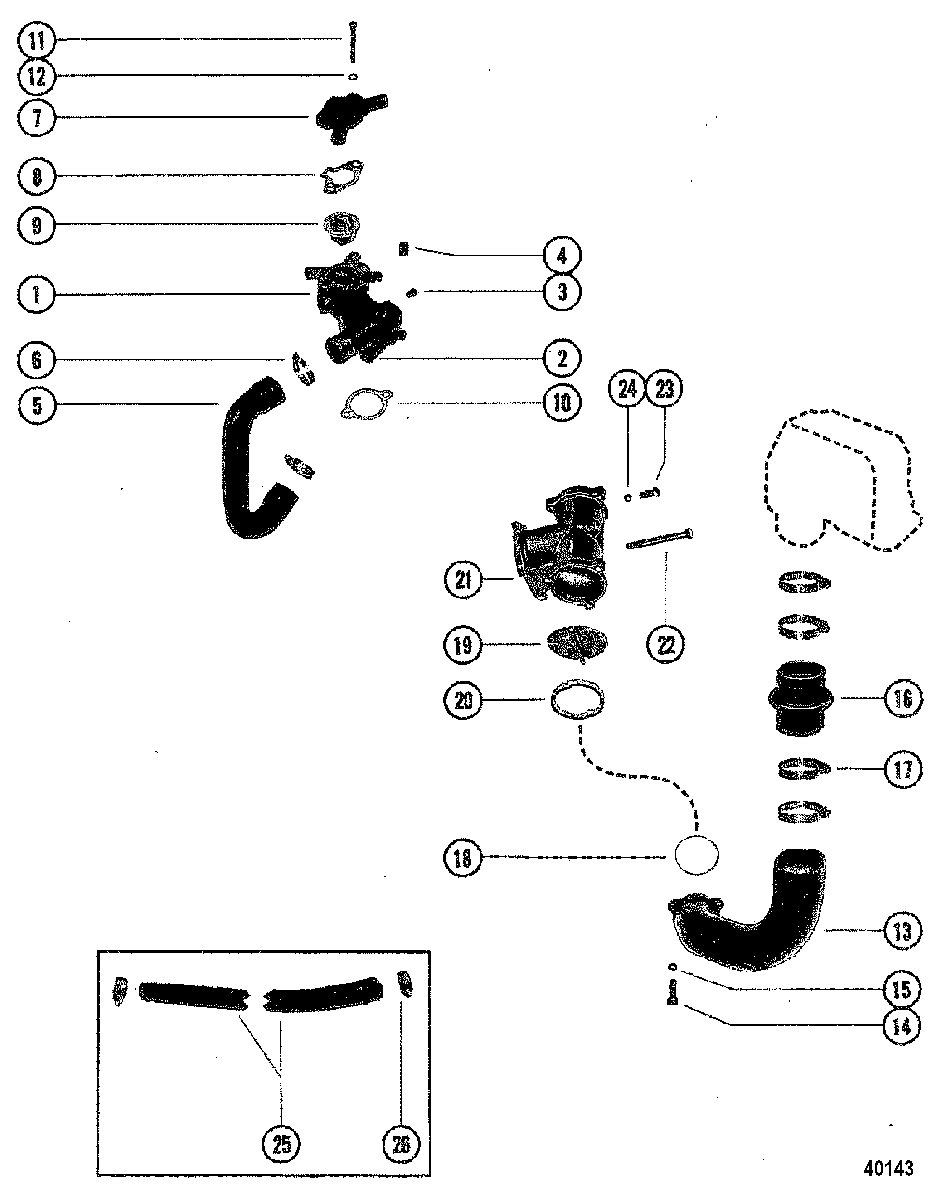

THERMOSTAT HOUSING для Mercruiser - 260 (4 BBL.) GM 350 V-8 1978-1982 4908850 THRU 6218461

  • №
    Артикул
    Название
  • 1
    78984A08 HOUSING ASSEMBLY, Thermostat
    HOUSING ASSEMBLY, Thermostat
  • 2
    23-47511 SLEEVE, Thermostat Housing
    SLEEVE, Thermostat Housing
  • 3
    22-47540 PLUG, Pipe - Allen Head (.375-18), Thermostat Housing
    PLUG, Pipe - Allen Head (.375-18), Thermostat Housing
  • 4
    22-416223 PLUG, (3/4-14), Thermostat Housing
    PLUG, (3/4-14), Thermostat Housing
  • 5
    32-33189 HOSE, Thermostat Housing to Water Pump
    HOSE, Thermostat Housing to Water Pump
  • 6
    54-815504228 CLAMP, Hose to Thermostat Housing and Water Pump
    CLAMP, Hose to Thermostat Housing and Water Pump
  • 7
    47441A1 COVER, Thermostat Housing
    COVER, Thermostat Housing
  • 8
    27-488181 GASKET, Thermostat Housing (UPPER)
    GASKET, Thermostat Housing (UPPER)
  • 9
    8M0089715 THERMOSTAT, (140 Degrees)
    THERMOSTAT, (140 Degrees)
  • 10
    27-530451 GASKET, Thermostat Housing to Manifold (LOWER)
    GASKET, Thermostat Housing to Manifold (LOWER)
  • 11
    10-60410 SCREW, (4.25 Inches), Thermostat Housing Attaching
    SCREW, (4.25 Inches), Thermostat Housing Attaching
  • 12
    13-35048 LOCKWASHER, (3/8), Thermostat Housing Screw
    LOCKWASHER, (3/8), Thermostat Housing Screw
  • 13
    73738A4 ELBOW, Exhaust
    ELBOW, Exhaust
  • 14
    10-60992 SCREW, (.375-16 x 1.250), Exhaust Elbow to Exhaust Separator
    SCREW, (.375-16 x 1.250), Exhaust Elbow to Exhaust Separator
  • 15
    13-35048 LOCKWASHER, (.375), Exhaust Elbow Screw
    LOCKWASHER, (.375), Exhaust Elbow Screw
  • 16
    70981A3 BELLOWS, Exhaust Elbow
    BELLOWS, Exhaust Elbow
  • 17
    54-815504456 CLAMP, Bellows (SMALL)
    CLAMP, Bellows (SMALL)
  • 17
    54-815504372 CLAMP, Bellows (LARGE)
    CLAMP, Bellows (LARGE)
  • 18
    25-35029 O-RING, 78.97 X 3.53 MM, Exhaust Elbow to Transom Plate
    O-RING, 78.97 X 3.53 MM, Exhaust Elbow to Transom Plate
  • 19
    60930 SHUTTER, Water, Exhaust Separator
    SHUTTER, Water, Exhaust Separator
  • 20
    60931 RETAINER, Water Shutter
    RETAINER, Water Shutter
  • 21
    59825A9 SEPARATOR, Exhaust
    SEPARATOR, Exhaust
  • 22
    10-60835 SCREW, (5 In.), Exhaust Separator to Gimbal Housing
    SCREW, (5 In.), Exhaust Separator to Gimbal Housing
  • 23
    10-37612 SCREW, (.375-16 x 1.250), Exhaust Separator to Gimbal Housing
    SCREW, (.375-16 x 1.250), Exhaust Separator to Gimbal Housing
  • 24
    13-35048 LOCKWASHER, (.375), Exhaust Separator Screw
    LOCKWASHER, (.375), Exhaust Separator Screw
  • 25
    32-77479A2 HOSE ASSEMBLY
    With Power Steering
    HOSE ASSEMBLY
    With Power Steering
  • 26
    54-815504220 CLAMP, Hose Adaptor
    With Power Steering
    CLAMP, Hose Adaptor
    With Power Steering
  • 25
    32-76847A1 HOSE ASSEMBLY, Thermostat Housing to Transom
    Without Power Steering
    HOSE ASSEMBLY, Thermostat Housing to Transom
    Without Power Steering
  • 26
    54-64489 CLAMP, Hose Adaptor
    Without Power Steering
    CLAMP, Hose Adaptor
    Without Power Steering
  • 26
    54-47715 CLIP, Hose Adaptor
    Without Power Steering
    CLIP, Hose Adaptor
    Without Power Steering
