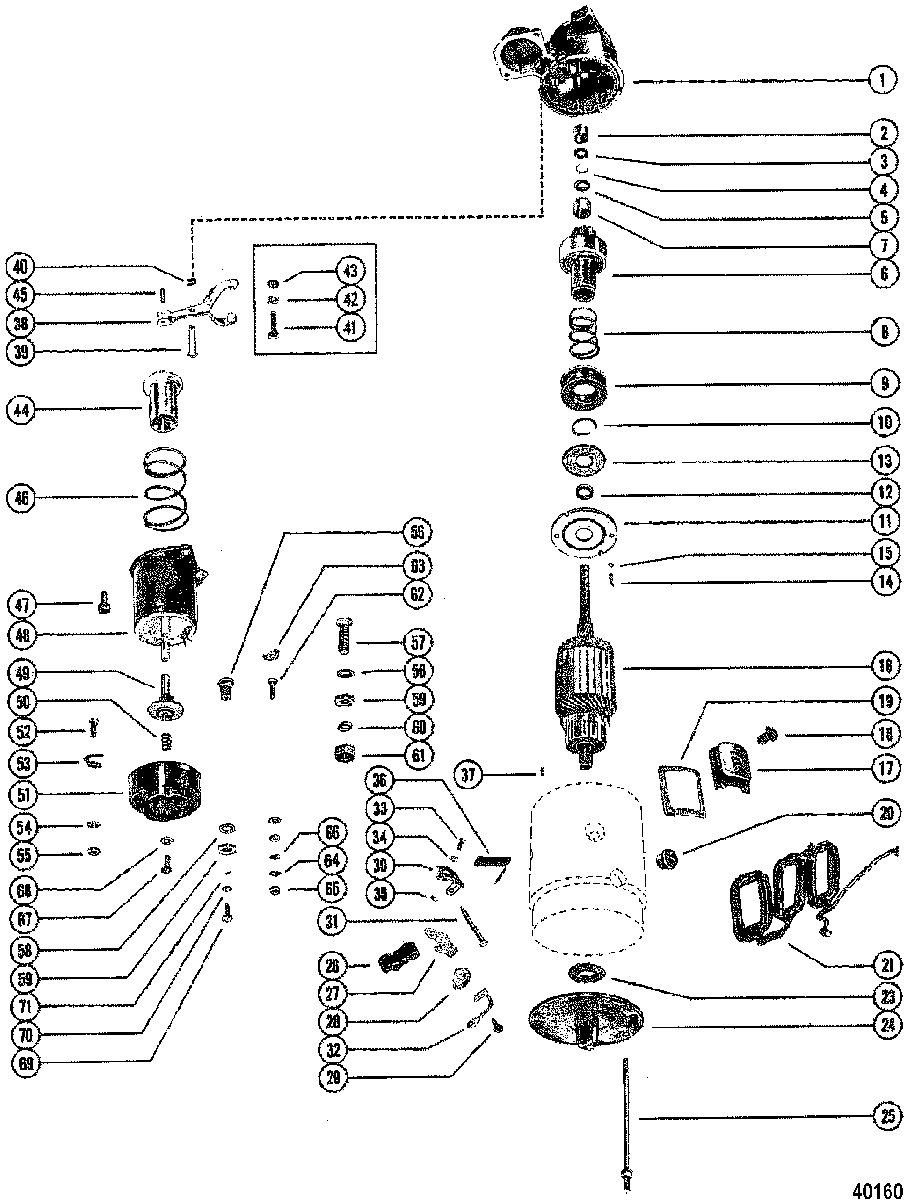

STARTER MOTOR ASSEMBLY, COMPLETE для Mercruiser - 260 (4 BBL.) GM 350 V-8 1978-1982 4908850 THRU 6218461

  • №
    Артикул
    Название
  • -
    50-808011A05 STARTER MOTOR ASSEMBLY, Complete
    STARTER MOTOR ASSEMBLY, Complete
  • -
    50-97499R3 STARTER MOTOR ASSEMBLY, Complete
    STARTER MOTOR ASSEMBLY, Complete
  • -
    50-8M0090697 STARTER MOTOR ASSEMBLY, Complete
    STARTER MOTOR ASSEMBLY, Complete
  • -
    50-8M0090697 STARTER MOTOR ASSEMBLY, Complete
    STARTER MOTOR ASSEMBLY, Complete
  • 1
    79206 HOUSING ASSEMBLY, Drive End
    (76965A 3 & 79604A 3)
    HOUSING ASSEMBLY, Drive End
    (76965A 3 & 79604A 3)
  • 1
    71696 HOUSING
    (79822A 2 & 79821A 2)
    HOUSING
    (79822A 2 & 79821A 2)
  • 2
    23-33369 BUSHING, Drive End Housing
    BUSHING, Drive End Housing
  • 3
    16-32292 COLLAR, Thrust- Drive End Housing
    COLLAR, Thrust- Drive End Housing
  • 4
    23-32290 RING, Retaining, Pinion Stop Collar
    RING, Retaining, Pinion Stop Collar
  • 5
    33291 COLLAR, Pinion Stop, Drive End Housing
    COLLAR, Pinion Stop, Drive End Housing
  • 6
    68608 DRIVE ASSEMBLY, Clutch, Armature
    (76965A 3)
    DRIVE ASSEMBLY, Clutch, Armature
    (76965A 3)
  • 6
    68609 DRIVE ASSEMBLY, Clutch, Armature
    (79604A 3)
    DRIVE ASSEMBLY, Clutch, Armature
    (79604A 3)
  • 6
    79205T DRIVE ASSEMBLY, Clutch, Armature
    (79822A 2 & 79821A 2)
    DRIVE ASSEMBLY, Clutch, Armature
    (79822A 2 & 79821A 2)
  • 7
    23-33369 BUSHING, Gear End, Clutch Drive (1 9/16")
    BUSHING, Gear End, Clutch Drive (1 9/16")
  • 8
    24-33368 SPRING, Clutch Driv
    SPRING, Clutch Driv
  • 9
    N.S.S. Not Sold Separate, COLLAR, Clutch Driv
    (DELCO REMY #1904443)
    Not Sold Separate, COLLAR, Clutch Driv
    (DELCO REMY #1904443)
  • 10
    33367 LOCKWIRE, Collar & Spring Retaining
    LOCKWIRE, Collar & Spring Retaining
  • 11
    79396 PLATE, Bearing
    (76965A 3 & 79604A 3)
    PLATE, Bearing
    (76965A 3 & 79604A 3)
  • 11
    N.S.S. Not Sold Separate, PLATE, Bearing (DELCO REMY #1956939)
    (79822A 2 & 79821A 2)
    Not Sold Separate, PLATE, Bearing (DELCO REMY #1956939)
    (79822A 2 & 79821A 2)
  • 12
    23-71694 BUSHING, Bearing Plate
    BUSHING, Bearing Plate
  • 13
    12-68614 WASHER, Bearing Plate
    WASHER, Bearing Plate
  • 14
    10-75659 SCREW, Bearing Plate Attaching
    (76965A 3 & 79604A 3)
    SCREW, Bearing Plate Attaching
    (76965A 3 & 79604A 3)
  • 14
    10-79209 SCREW, Bearing Plate Attaching
    (79822A 2 & 79821A 2)
    SCREW, Bearing Plate Attaching
    (79822A 2 & 79821A 2)
  • 15
    13-26996 LOCKWASHER, (#10) Stainless Steel, Bearing Plate Screw
    LOCKWASHER, (#10) Stainless Steel, Bearing Plate Screw
  • 16
    75665 ARMATURE
    (76965A 3)
    ARMATURE
    (76965A 3)
  • 16
    68606 ARMATURE
    (79604A 3)
    ARMATURE
    (79604A 3)
  • 16
    68607 ARMATURE
    (79822A 2)
    ARMATURE
    (79822A 2)
  • 16
    71693 ARMATURE
    (79821A 2)
    ARMATURE
    (79821A 2)
  • 17
    N.S.S. Not Sold Separate, SHOE, Pole, Field Coil (DELCO REMY #810601)
    (76965A 3, 79604A 3 & 79822A 2)
    Not Sold Separate, SHOE, Pole, Field Coil (DELCO REMY #810601)
    (76965A 3, 79604A 3 & 79822A 2)
  • 17
    N.S.S. Not Sold Separate, SHOE, Pole, Field Coil (DELCO REMY #1931129)
    (79821A 2)
    Not Sold Separate, SHOE, Pole, Field Coil (DELCO REMY #1931129)
    (79821A 2)
  • 18
    N.S.S. Not Sold Separate, SCREW, Pole Shoe to Field Coil
    (DELCO REMY#1968396)
    Not Sold Separate, SCREW, Pole Shoe to Field Coil
    (DELCO REMY#1968396)
  • 19
    33293 INSULATION, Field Coil
    (79821A 2)
    INSULATION, Field Coil
    (79821A 2)
  • 20
    25-68619 GROMMET, Field Coil, Field Frame
    (Starter Motors except 79821A 2)
    GROMMET, Field Coil, Field Frame
    (Starter Motors except 79821A 2)
  • 20
    25-79208 GROMMET, Field Coil, Field Frame
    (79822A 2 & 79821A 2)
    GROMMET, Field Coil, Field Frame
    (79822A 2 & 79821A 2)
  • 21
    75664 COIL ASSEMBLY
    (79604A 3 & 79822A 2)
    COIL ASSEMBLY
    (79604A 3 & 79822A 2)
  • 21
    48272 COIL ASSEMBLY
    (76965A 3)
    COIL ASSEMBLY
    (76965A 3)
  • 21
    79212 COIL ASSEMBLY
    (79821A 2)
    COIL ASSEMBLY
    (79821A 2)
  • 23
    12-33258 WASHER, Leather, Commutator End Frame
    (79822A 2 & 79821A 2)
    WASHER, Leather, Commutator End Frame
    (79822A 2 & 79821A 2)
  • 24
    79211 FRAME, Commutator End, Lower
    (76965A 3 & 79604A 3)
    FRAME, Commutator End, Lower
    (76965A 3 & 79604A 3)
  • 24
    79211 FRAME, Commutator End, Lower
    (79822A 2 & 79821A 2)
    FRAME, Commutator End, Lower
    (79822A 2 & 79821A 2)
  • 25
    10-33296 BOLT, Thru, Commutator End to Drive End Housing
    (79822A 2 & 79821A 2)
    BOLT, Thru, Commutator End to Drive End Housing
    (79822A 2 & 79821A 2)
  • 25
    10-33286 BOLT, Thru, Commutator End to Drive End Housing
    (76965A 3 & 79604A 3)
    BOLT, Thru, Commutator End to Drive End Housing
    (76965A 3 & 79604A 3)
  • 25
    10-33286 BOLT, Thru, Commutator End to Drive End Housing
    (79822A 2 & 79821A 2)
    BOLT, Thru, Commutator End to Drive End Housing
    (79822A 2 & 79821A 2)
  • 26
    33284 HOLDER, Insulated, Field Frame Brush
    HOLDER, Insulated, Field Frame Brush
  • 27
    33283 HOLDER, Field Frame Brush Ground
    HOLDER, Field Frame Brush Ground
  • 28
    33270 BRUSH, Field Frame
    BRUSH, Field Frame
  • 29
    10-52904 SCREW, (8-18 x 5/8), Brush lead to Field Frame Brush
    SCREW, (8-18 x 5/8), Brush lead to Field Frame Brush
  • 29
    10-60685 SCREW, Brush lead to Field Frame Brush
    SCREW, Brush lead to Field Frame Brush
  • 30
    33294 SUPPORT, Ground & Insulated Holders
    SUPPORT, Ground & Insulated Holders
  • 31
    17-33280 PIN, Ground & Insulated Holder to Support
    PIN, Ground & Insulated Holder to Support
  • 32
    33294 LEAD, Field Frame Brush
    LEAD, Field Frame Brush
  • 33
    N.S.S. Not Sold Separate, SCREW, Support to Field Frame
    (Delco Remy #274738)
    Not Sold Separate, SCREW, Support to Field Frame
    (Delco Remy #274738)
  • 34
    13-26996 LOCKWASHER, (#10) Stainless Steel, Support Screw
    LOCKWASHER, (#10) Stainless Steel, Support Screw
  • 35
    11-30968 NUT, (10-24), Support Screw
    NUT, (10-24), Support Screw
  • 36
    24-33285 SPRING, Field Frame Brush
    SPRING, Field Frame Brush
  • 37
    17-33257 PIN, Dowel, Field Frame to Drive End Housing
    PIN, Dowel, Field Frame to Drive End Housing
  • 38
    71698 LEVER, Shift
    (79821A 2)
    LEVER, Shift
    (79821A 2)
  • 39
    33310 SHAFT, Shift Lever to Drive End Housing
    (79821A 2)
    SHAFT, Shift Lever to Drive End Housing
    (79821A 2)
  • 40
    53-33354 RING, Retaining, Shift Shaft Lever
    (76965A 3, 79822A 2 & 79821A 2)
    RING, Retaining, Shift Shaft Lever
    (76965A 3, 79822A 2 & 79821A 2)
  • 38
    33297 LEVER, Shift
    LEVER, Shift
  • 41
    N.S.S. Not Sold Separate, STUD, Shift Lever to Drive End Housing
    Not Sold Separate, STUD, Shift Lever to Drive End Housing
  • 42
    12-68615 WASHER, Shift Shaft Lever
    WASHER, Shift Shaft Lever
  • 43
    11-26484 NUT, (.312-18), Shift Lever Stud
    NUT, (.312-18), Shift Lever Stud
  • 44
    33317 PLUNGER, Shift Lever, Solenoid Switch
    PLUNGER, Shift Lever, Solenoid Switch
  • 45
    17-79207 PIN, Plunger to Shift Lever
    PIN, Plunger to Shift Lever
  • 46
    24-46889 SPRING, Plunger Return, Solenoid Switch
    SPRING, Plunger Return, Solenoid Switch
  • 47
    10-28713 SCREW, Solenoid Switch to Drive End Housing
    (76965A 3 & 79604A 3)
    SCREW, Solenoid Switch to Drive End Housing
    (76965A 3 & 79604A 3)
  • 47
    10-76621 SCREW, Solenoid Switch to Drive End Housing
    (79822A 2 & 79821A 2)
    SCREW, Solenoid Switch to Drive End Housing
    (79822A 2 & 79821A 2)
  • 48
    33261 SOLENOID SWITCH ASSEMBLY
    (Starter Motors except 79821A 2)
    SOLENOID SWITCH ASSEMBLY
    (Starter Motors except 79821A 2)
  • 48
    33261 SWITCH ASSEMBLY, Solenoid
    (79821A 2)
    SWITCH ASSEMBLY, Solenoid
    (79821A 2)
  • 49
    33261 CONTACT/ROD ASSEMBLY
    (Starter Motors except 79821A 2)
    CONTACT/ROD ASSEMBLY
    (Starter Motors except 79821A 2)
  • 50
    24-33265 SPRING, Contact & Push Rod Tension
    (Starter Motors except 79821A 2)
    SPRING, Contact & Push Rod Tension
    (Starter Motors except 79821A 2)
  • 51
    45537 COVER, Solenoid Switch
    (Starter Motors except 79821A 2)
    COVER, Solenoid Switch
    (Starter Motors except 79821A 2)
  • 52
    16-33304 STUD, (10-32), Resistor Terminal (10-32)
    (Starter Motors except 79821A 2)
    STUD, (10-32), Resistor Terminal (10-32)
    (Starter Motors except 79821A 2)
  • 53
    33305 CONTACT, Resistor Terminal Stud
    (Starter Motors except 79821A 2)
    CONTACT, Resistor Terminal Stud
    (Starter Motors except 79821A 2)
  • 54
    13-26996 LOCKWASHER, (#10) Stainless Steel, Resistor Terminal Stud
    (Starter Motors except 79821A 2)
    LOCKWASHER, (#10) Stainless Steel, Resistor Terminal Stud
    (Starter Motors except 79821A 2)
  • 55
    11-68219 NUT, (#10-32) Stainless Steel, Resistor Terminal Stud
    (Starter Motors except 79821A 2)
    NUT, (#10-32) Stainless Steel, Resistor Terminal Stud
    (Starter Motors except 79821A 2)
  • 56
    16-33299 STUD, (3/8-16), Motor Terminal (3/8-16)
    (Starter Motors except 79821A 2)
    STUD, (3/8-16), Motor Terminal (3/8-16)
    (Starter Motors except 79821A 2)
  • 57
    16-45536 STUD, (3/8-16), Battery Terminal (3/8-16)
    (Starter Motors except 79821A 2)
    STUD, (3/8-16), Battery Terminal (3/8-16)
    (Starter Motors except 79821A 2)
  • 58
    12-33289 WASHER, (3/8-16), Battery & Motor Terminal Stud (3/8")
    (Starter Motors except 79821A 2)
    WASHER, (3/8-16), Battery & Motor Terminal Stud (3/8")
    (Starter Motors except 79821A 2)
  • 59
    11-32219 NUT, (.375-16), Battery & Motor Terminal Stud
    (Starter Motors except 79821A 2)
    NUT, (.375-16), Battery & Motor Terminal Stud
    (Starter Motors except 79821A 2)
  • 60
    13-35048 LOCKWASHER, (3/8), Battery Terminal Stud (3/8")
    (Starter Motors except 79821A 2)
    LOCKWASHER, (3/8), Battery Terminal Stud (3/8")
    (Starter Motors except 79821A 2)
  • 61
    11-32219 NUT, (.375-16), Battery Terminal Stud
    (Starter Motors except 79821A 2)
    NUT, (.375-16), Battery Terminal Stud
    (Starter Motors except 79821A 2)
  • 62
    16-33262 STUD, (8/32), Switch Terminal (8-32)
    (Starter Motors except 79821A 2)
    STUD, (8/32), Switch Terminal (8-32)
    (Starter Motors except 79821A 2)
  • 63
    54-33307 CLIP, Switch Terminal Stud
    (Starter Motors except 79821A 2)
    CLIP, Switch Terminal Stud
    (Starter Motors except 79821A 2)
  • 64
    12-33279 WASHER, (#8), Plastic, Switch Terminal Stud (#8)
    (Starter Motors except 79821A 2)
    WASHER, (#8), Plastic, Switch Terminal Stud (#8)
    (Starter Motors except 79821A 2)
  • 65
    11-21923T NUT, ( 8-32) (8-32)
    (Starter Motors except 79821A 2)
    NUT, ( 8-32) (8-32)
    (Starter Motors except 79821A 2)
  • 66
    13-26995 LOCKWASHER, (#8) Stainless Steel
    (Starter Motors except 79821A 2)
    LOCKWASHER, (#8) Stainless Steel
    (Starter Motors except 79821A 2)
  • 67
    10-33248 SCREW, (7/16), Cover to Solenoid Switch (7/16")
    (Starter Motors except 79821A 2)
    SCREW, (7/16), Cover to Solenoid Switch (7/16")
    (Starter Motors except 79821A 2)
  • 68
    12-33279 WASHER, (#8) (Plastic) Cover Screw
    (Starter Motors except 79821A 2)
    WASHER, (#8) (Plastic) Cover Screw
    (Starter Motors except 79821A 2)
  • 69
    10-48266 SCREW, (7/16), Field Coild Lead to Solenoid Switch (7/16")
    (Starter Motors except 79821A 2)
    SCREW, (7/16), Field Coild Lead to Solenoid Switch (7/16")
    (Starter Motors except 79821A 2)
  • 69
    10-45546 SCREW, (1 Inch), Field Coild Lead to Solenoid Switch (1")
    (Starter Motors except 79821A 2)
    SCREW, (1 Inch), Field Coild Lead to Solenoid Switch (1")
    (Starter Motors except 79821A 2)
  • 70
    13-26995 LOCKWASHER, (#8) Stainless Steel
    (Starter Motors except 79821A 2)
    LOCKWASHER, (#8) Stainless Steel
    (Starter Motors except 79821A 2)
  • 71
    N.S.S. Not Sold Separate, CONNECTOR, (DELCO REMY #1963519)
    (Starter Motors except 79821A 2)
    Not Sold Separate, CONNECTOR, (DELCO REMY #1963519)
    (Starter Motors except 79821A 2)

Все узлы модели:
