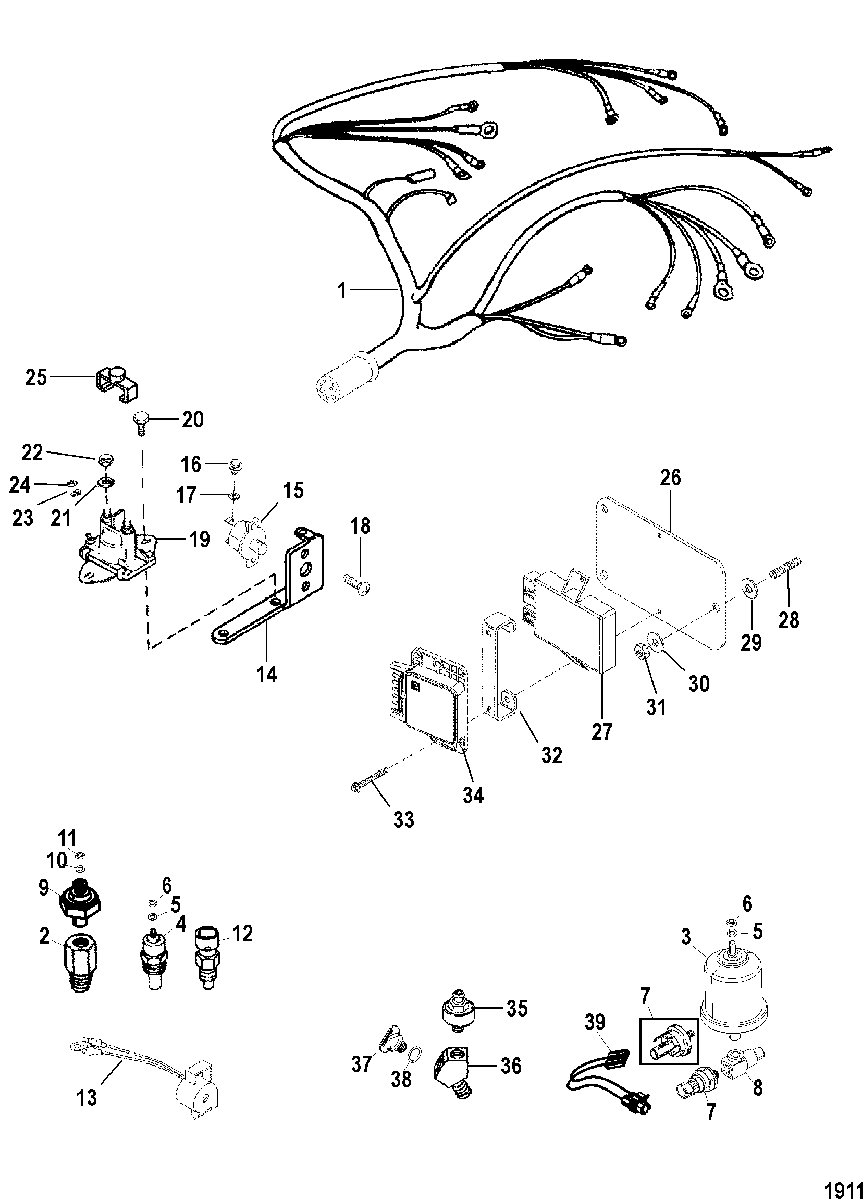

WIRING HARNESS AND ELECTRICAL COMPONENTS для Mercruiser - 5.7L CARB MIE 0L002003 THRU OM316999

  • №
    Артикул
    Название
  • 1
    84-861237A2 HARNESS ASSEMBLY
    (Mando Alternator)
    HARNESS ASSEMBLY
    (Mando Alternator)
  • 1
    84-862164T1 HARNESS ASSEMBLY
    (Delco Alternator)SN# OM311490 AND BELOW ) SN# OM311490 & Below
    HARNESS ASSEMBLY
    (Delco Alternator)SN# OM311490 AND BELOW ) SN# OM311490 & Below
  • 1
    84-862164T02 HARNESS ASSEMBLY, Wiring
    (Delco Alternator)SN# OM311491 AND ABOVE SN# OM311491 & Up
    HARNESS ASSEMBLY, Wiring
    (Delco Alternator)SN# OM311491 AND ABOVE SN# OM311491 & Up
  • 2
    22-8053281 FITTING, Elbow (90 Degree - .125)
    FITTING, Elbow (90 Degree - .125)
  • 2
    22-32974 FITTING, (.125-27) Adaptor
    FITTING, (.125-27) Adaptor
  • 3
    8M0068784 SENDER ASSEMBLY
    SENDER ASSEMBLY
  • 3
    37293T SENDER ASSEMBLY
    (DUAL STATION)
    SENDER ASSEMBLY
    (DUAL STATION)
  • 4
    806490T SENDER
    SENDER
  • 4
    49734 SENDER
    (DUAL STATION)
    SENDER
    (DUAL STATION)
  • 5
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 6
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 7
    87-864252A01 SWITCH, Oil Pressure
    SN# OM311490 & Below
    SWITCH, Oil Pressure
    SN# OM311490 & Below
  • 7
    87-8M0070108 SWITCH, Oil Pressure
    SN# OM311491 & Up
    SWITCH, Oil Pressure
    SN# OM311491 & Up
  • 8
    22-864669 FITTING
    FITTING
  • 9
    87-805605A1 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 10
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 11
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 12
    805218T SENSOR
    SENSOR
  • 13
    816492A6 ALARM KIT
    ALARM KIT
  • 14
    899719T01 BRACKET, Electrical
    BRACKET, Electrical
  • 15
    88-11178A01 BREAKER, Circuit - 50 Ampere
    BREAKER, Circuit - 50 Ampere
  • 16
    10-68513 SCREW, (#10-32 x .375) Stainless Steel
    SCREW, (#10-32 x .375) Stainless Steel
  • 17
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 18
    10-57583T SCREW, (#8-32 x .375)
    SCREW, (#8-32 x .375)
  • 19
    89-96158T SOLENOID
    SOLENOID
  • 20
    10-805564 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 21
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 22
    11-94330 NUT, (.250-20) Brass
    NUT, (.250-20) Brass
  • 23
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 24
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 25
    85-97861 INSULATOR
    INSULATOR
  • 26
    861516 BRACKET
    BRACKET
  • 27
    861543T02 ICM MODULE, Ignition Control Module
    ICM MODULE, Ignition Control Module
  • 28
    10-24323 SET SCREW, (.250-20 x 1.25)
    SET SCREW, (.250-20 x 1.25)
  • 29
    12-96457 WASHER, Phenolic (.27 x .81 x .062)
    WASHER, Phenolic (.27 x .81 x .062)
  • 30
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 31
    11-64015 NUT, (.250-20)
    NUT, (.250-20)
  • 32
    861517 BRACKET
    BRACKET
  • 33
    10-41408 SCREW, (#10-32 x 1.50)
    SCREW, (#10-32 x 1.50)
  • 34
    806611T MODULE, Knock Control
    MODULE, Knock Control
  • 35
    806612T SENSOR, Knock
    SENSOR, Knock
  • 36
    22-8067051 FITTING, Dual
    FITTING, Dual
  • 37
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue
    PLUG KIT, (.500-13) Royal Blue
  • 38
    25-62706 O-RING, (.426 x .070)
    O-RING, (.426 x .070)
  • 39
    84-864388 HARNESS ASSEMBLY, Oil Sensor Adaptor
    HARNESS ASSEMBLY, Oil Sensor Adaptor
