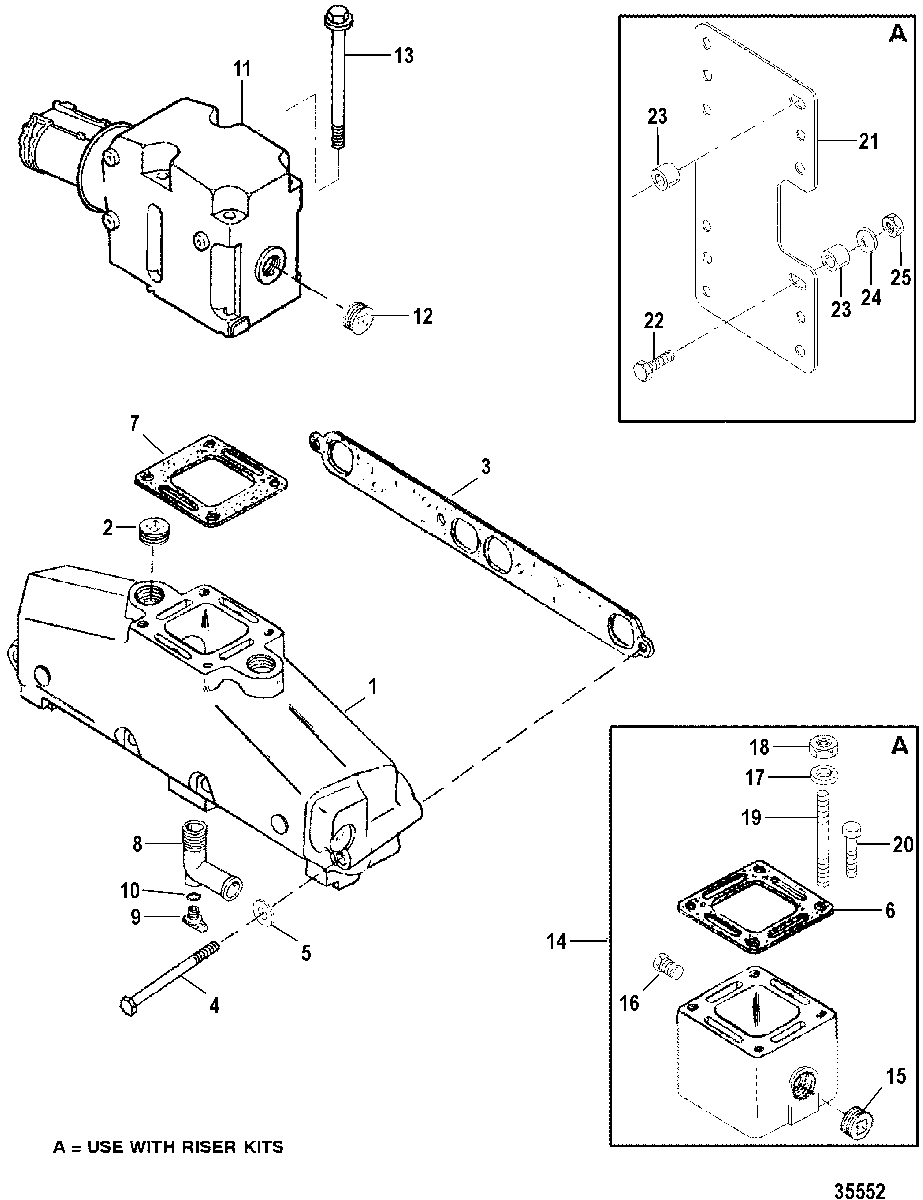

EXHAUST MANIFOLD AND EXHAUST ELBOW для Mercruiser - 5.7L CARB MIE 0L002003 THRU OM316999

  • №
    Артикул
    Название
  • 1
    860246A15 MANIFOLD ASSEMBLY, Exhaust
    MANIFOLD ASSEMBLY, Exhaust
  • 2
    22-428611 FITTING, Pipe - Brass (.750-14)
    FITTING, Pipe - Brass (.750-14)
  • 3
    27-33395 GASKET
    GASKET
  • 4
    10-53728 SCREW, (.375-16 x 4.75)
    SCREW, (.375-16 x 4.75)
  • 5
    12-20533 WASHER
    WASHER
  • 6
    27-863726 GASKET
    (USE WITH RISER KITS)
    GASKET
    (USE WITH RISER KITS)
  • 7
    27-863724 GASKET
    (STANDARD COOLING)
    GASKET
    (STANDARD COOLING)
  • 8
    22-862210A01 ELBOW KIT, Drain
    ELBOW KIT, Drain
  • 9
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue
    PLUG KIT, (.500-13) Royal Blue
  • 10
    25-32509 O-RING, (.489 x .070)
    O-RING, (.489 x .070)
  • 11
    807988A03 ELBOW ASSEMBLY, Exhaust
    ELBOW ASSEMBLY, Exhaust
  • 12
    22-428611 FITTING, Pipe - Brass (.750-14)
    FITTING, Pipe - Brass (.750-14)
  • 13
    10-43749 SCREW, (.375-16 x 5.750)
    SCREW, (.375-16 x 5.750)
  • 13
    10-44387 SCREW, (.376-16 x 6.750)
    SCREW, (.376-16 x 6.750)
  • 14
    93320A13 RISER KIT, Exhaust (3 Inches)
    (EACH KIT CONTAINS 2 RISERS)
    RISER KIT, Exhaust (3 Inches)
    (EACH KIT CONTAINS 2 RISERS)
  • 14
    93322A12 RISER KIT, Exhaust (6 Inches)
    (EACH KIT CONTAINS 2 RISERS)
    RISER KIT, Exhaust (6 Inches)
    (EACH KIT CONTAINS 2 RISERS)
  • 15
    22-416223 PLUG, (.750-14) Pipe
    PLUG, (.750-14) Pipe
  • 16
    22-428611 FITTING, Pipe - Brass (.750-14)
    FITTING, Pipe - Brass (.750-14)
  • 17
    12-46132 WASHER
    (USE WITH 3 IN. RISER)
    WASHER
    (USE WITH 3 IN. RISER)
  • 18
    11-805979 NUT, (.375-24)
    (USE WITH 3 IN. RISER)
    NUT, (.375-24)
    (USE WITH 3 IN. RISER)
  • 19
    16-8M0022137 STUD, (.375 x 9.56)
    (USE WITH 3 IN. RISER)
    STUD, (.375 x 9.56)
    (USE WITH 3 IN. RISER)
  • 19
    16-8M0022138 STUD, (.375 x 10.56)
    (USE WITH 3 IN. RISER)
    STUD, (.375 x 10.56)
    (USE WITH 3 IN. RISER)
  • 20
    10-865982005 SCREW, (.375-16 x 1.00)
    (USE WITH 6 IN. RISER)
    SCREW, (.375-16 x 1.00)
    (USE WITH 6 IN. RISER)
  • 21
    818598T BRACKET
    (USE WITH 6 IN. RISER)
    BRACKET
    (USE WITH 6 IN. RISER)
  • 22
    10-76596 SCREW, (.250-20 x 1.250)
    (USE WITH 6 IN. RISER)
    SCREW, (.250-20 x 1.250)
    (USE WITH 6 IN. RISER)
  • 23
    23-806981 SPACER
    (USE WITH 6 IN. RISER)
    SPACER
    (USE WITH 6 IN. RISER)
  • 24
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    (USE WITH 6 IN. RISER)
    WASHER, (.2656 x .625 x .0625) Stainless Steel
    (USE WITH 6 IN. RISER)
  • 25
    11-64015 NUT, (.250-20)
    (USE WITH 6 IN. RISER)
    NUT, (.250-20)
    (USE WITH 6 IN. RISER)
  • -
    27-861246A05 GASKET SET
    GASKET SET
