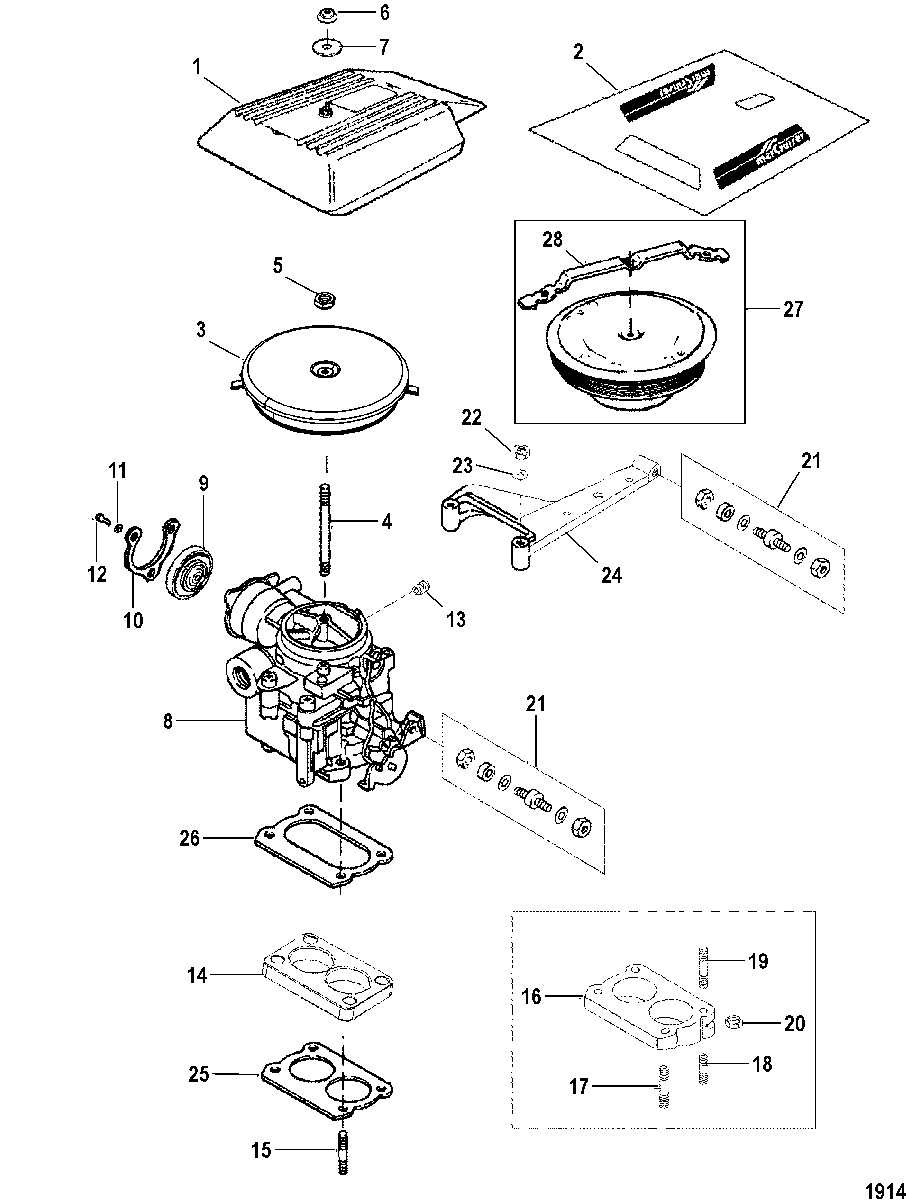

CARBURETOR AND THROTTLE LINKAGE(2 BARREL) для Mercruiser - 5.7L CARB MIE 0L002003 THRU OM316999

  • №
    Артикул
    Название
  • 1
    18484A3 COVER
    COVER
  • 2
    37-861373A8 DECAL SET
    DECAL SET
  • 3
    863200 FLAME ARRESTOR
    (With Molded Hose Retainer)
    FLAME ARRESTOR
    (With Molded Hose Retainer)
  • 4
    16-8M0113181 STUD, (.250-20/.250-28 x Special) (3 IN.)
    STUD, (.250-20/.250-28 x Special) (3 IN.)
  • 5
    11-8267139 NUT, (.250-28)
    NUT, (.250-28)
  • 6
    11-863001 NUT, (.250-28)
    NUT, (.250-28)
  • 7
    12-86400 WASHER
    WASHER
  • 8
    3310-864943A01 CARBURETOR ASSEMBLY
    CARBURETOR ASSEMBLY
  • 9
    70125A02 COVER, Choke
    COVER, Choke
  • 10
    10-33047 SCREW
    SCREW
  • 11
    13-26995 LOCKWASHER, (#8) Stainless Steel
    LOCKWASHER, (#8) Stainless Steel
  • 12
    53-805140 PLATE
    PLATE
  • 13
    22-56800 PLUG, Pipe (.0625-27)
    PLUG, Pipe (.0625-27)
  • 14
    807726A2 ADAPTOR
    (V-DRIVE & DOWN ANGLE TRANSMISSION)
    ADAPTOR
    (V-DRIVE & DOWN ANGLE TRANSMISSION)
  • 15
    16-65868 STUD, (.312-18/.312-24 x 2.120)
    (V-DRIVE & DOWN ANGLE TRANSMISSION)
    STUD, (.312-18/.312-24 x 2.120)
    (V-DRIVE & DOWN ANGLE TRANSMISSION)
  • 15
    16-807849 STUD, (.312-18/.312-24 x 3.380)
    (V-DRIVE & DOWN ANGLE TRANSMISSION)
    STUD, (.312-18/.312-24 x 3.380)
    (V-DRIVE & DOWN ANGLE TRANSMISSION)
  • 16
    807265A1 WEDGE
    (B/W 71C/72C IN-LINE TRANSMISSION)
    WEDGE
    (B/W 71C/72C IN-LINE TRANSMISSION)
  • 17
    16-70237 STUD, (.312-18/.312-24 x 2.620)
    (B/W 71C/72C IN-LINE TRANSMISSION)
    STUD, (.312-18/.312-24 x 2.620)
    (B/W 71C/72C IN-LINE TRANSMISSION)
  • 18
    16-63332 STUD, (.312 x 1.2812)
    (B/W 71C/72C IN-LINE TRANSMISSION)
    STUD, (.312 x 1.2812)
    (B/W 71C/72C IN-LINE TRANSMISSION)
  • 19
    16-807975 STUD, (.312 x 2.370)
    (B/W 71C/72C IN-LINE TRANSMISSION)
    STUD, (.312 x 2.370)
    (B/W 71C/72C IN-LINE TRANSMISSION)
  • 20
    11-862902 NUT, (.312-24)
    (B/W 71C/72C IN-LINE TRANSMISSION)
    NUT, (.312-24)
    (B/W 71C/72C IN-LINE TRANSMISSION)
  • 21
    16-97477A3 STUD KIT
    STUD KIT
  • 22
    11-862902 NUT, (.312-24)
    NUT, (.312-24)
  • 23
    12-20084 WASHER, (.328 x .562 x .062)
    WASHER, (.328 x .562 x .062)
  • 24
    805489T BRACKET
    BRACKET
  • 25
    27-8079821 GASKET
    GASKET
  • 26
    27-861246 GASKET
    GASKET
  • 27
    805016A1 FLAME ARRESTOR
    (Without Molded Hose Retainer)
    FLAME ARRESTOR
    (Without Molded Hose Retainer)
  • 28
    805313 RETAINER
    RETAINER
  • -
    27-861246A05 GASKET SET
    GASKET SET
