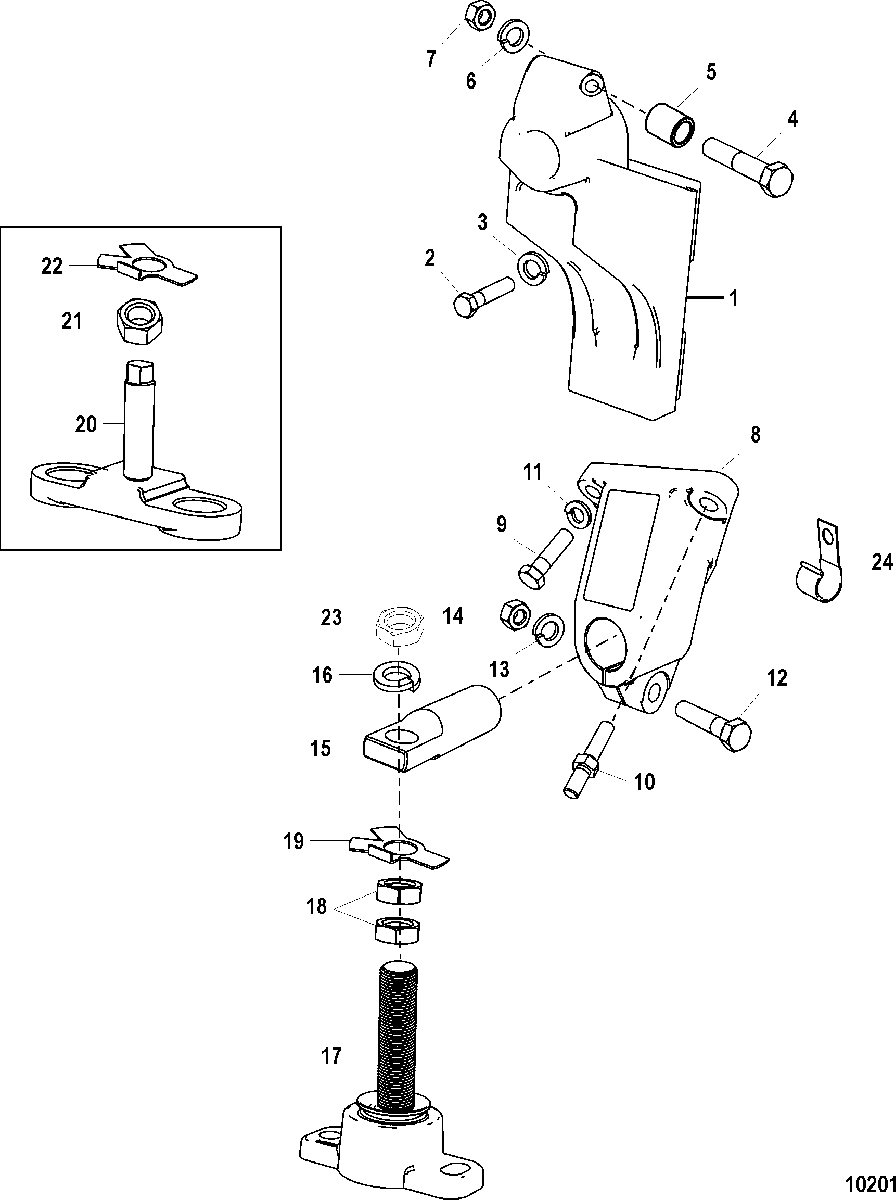

TRANSMISSION AND ENGINE MOUNTING(BORG WARNER 71C & 72C) для Mercruiser - 5.7L CARB MIE 0L002003 THRU OM316999
-
№АртикулНазвание
-
166167A2 BRACKETBRACKET
-
152158A20 BRACKET
(72C V-DRIVE & REMOTE V-DRIVE)BRACKET
(72C V-DRIVE & REMOTE V-DRIVE) -
210-37269 SCREW, (.437-14 x 2.00)SCREW, (.437-14 x 2.00)
-
210-47462 SCREW, (.437-14 x 1.250)
(72C V-DRIVE & REMOTE V-DRIVE)SCREW, (.437-14 x 1.250)
(72C V-DRIVE & REMOTE V-DRIVE) -
313-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
410-57357 SCREW, (.437-13 x 2.250)SCREW, (.437-13 x 2.250)
-
410-47724 SCREW, (.437-14 x 3.00)
(72C V-DRIVE & REMOTE V-DRIVE)SCREW, (.437-14 x 3.00)
(72C V-DRIVE & REMOTE V-DRIVE) -
554-47528 CLAMP
(72C V-DRIVE & REMOTE V-DRIVE)CLAMP
(72C V-DRIVE & REMOTE V-DRIVE) -
613-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
711-82670814 NUT, (.437-14)NUT, (.437-14)
-
871128A2 BRACKETBRACKET
-
910-68101 SCREW, (.375-16 x 1.375)SCREW, (.375-16 x 1.375)
-
1016-8M2004610 STUD, (.375-16 x 2.130)STUD, (.375-16 x 2.130)
-
1113-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
1210-37269 SCREW, (.437-14 x 2.00)SCREW, (.437-14 x 2.00)
-
1313-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
1411-82670814 NUT, (.437-14)NUT, (.437-14)
-
1566166A4 TRUNNIONTRUNNION
-
1613-68102 LOCKWASHER, (.750)LOCKWASHER, (.750)
-
1766284A2 BASE ASSEMBLYBASE ASSEMBLY
-
1811-20739 NUT, (.750-16)NUT, (.750-16)
-
1914-66658 TAB WASHERTAB WASHER
-
20816326A2 BASE ASSEMBLYBASE ASSEMBLY
-
2111-816331 NUT, (.750-16)NUT, (.750-16)
-
2214-66658 TAB WASHERTAB WASHER
-
2311-20739 NUT, (.750-16)NUT, (.750-16)
-
2454-78945 J CLAMP, Harness SupportJ CLAMP, Harness Support
