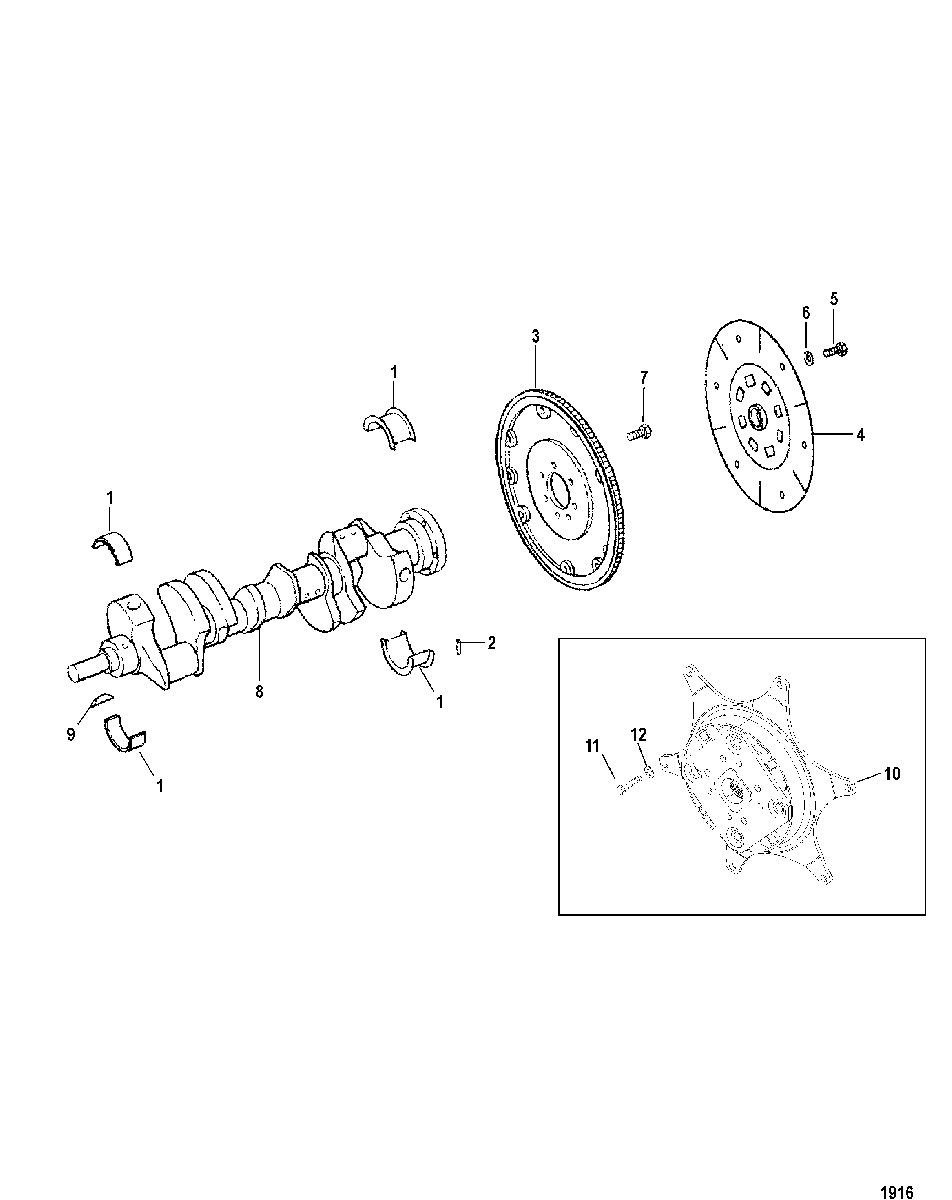

CRANKSHAFT AND FLYWHEEL для Mercruiser - 5.7L CARB MIE 0L002003 THRU OM316999

  • №
    Артикул
    Название
  • 1
    23-818465 BEARING SET, 5 Pair
    (STANDARD)
    BEARING SET, 5 Pair
    (STANDARD)
  • 1
    23-818466 BEARING SET, 5 Pair
    (.001 USA)
    BEARING SET, 5 Pair
    (.001 USA)
  • 1
    23-818467 BEARING SET, 5 Pair
    (.010 USA)
    BEARING SET, 5 Pair
    (.010 USA)
  • 1
    23-818468 BEARING SET, 5 Pair
    (.020 USA)
    BEARING SET, 5 Pair
    (.020 USA)
  • 2
    17-43504 PIN, Dowel (1/4 IN.)
    PIN, Dowel (1/4 IN.)
  • 3
    200-8M0083286 FLYWHEEL
    FLYWHEEL
  • 4
    47608A1 DRIVEPLATE ASSEMBLY
    (71C INLINE/71C REMOTE V)(72C INLINE/72C-V)
    DRIVEPLATE ASSEMBLY
    (71C INLINE/71C REMOTE V)(72C INLINE/72C-V)
  • 5
    10-35091 SCREW, (.375-16 x 1.00)
    (71C INLINE/71C REMOTE V)(72C INLINE/72C-V)
    SCREW, (.375-16 x 1.00)
    (71C INLINE/71C REMOTE V)(72C INLINE/72C-V)
  • 6
    13-35048 LOCKWASHER, (.375)
    (71C INLINE/71C REMOTE V)(72C INLINE/72C-V)
    LOCKWASHER, (.375)
    (71C INLINE/71C REMOTE V)(72C INLINE/72C-V)
  • 7
    10-845757 SCREW, (.437-20 x 1.00)
    SCREW, (.437-20 x 1.00)
  • 8
    429-8M0054508 CRANKSHAFT
    CRANKSHAFT
  • 9
    28-34466 KEY
    KEY
  • 10
    862975A1 DRIVEPLATE ASSEMBLY
    (B/W 5000/HURTH 630 TRANSMSISSION)
    DRIVEPLATE ASSEMBLY
    (B/W 5000/HURTH 630 TRANSMSISSION)
  • 11
    10-34354 SCREW, (.375-16 x 1.50)
    (B/W 5000/HURTH 630 TRANSMSISSION)
    SCREW, (.375-16 x 1.50)
    (B/W 5000/HURTH 630 TRANSMSISSION)
  • 12
    13-35048 LOCKWASHER, (.375)
    (B/W 5000/HURTH 630 TRANSMSISSION)
    LOCKWASHER, (.375)
    (B/W 5000/HURTH 630 TRANSMSISSION)
