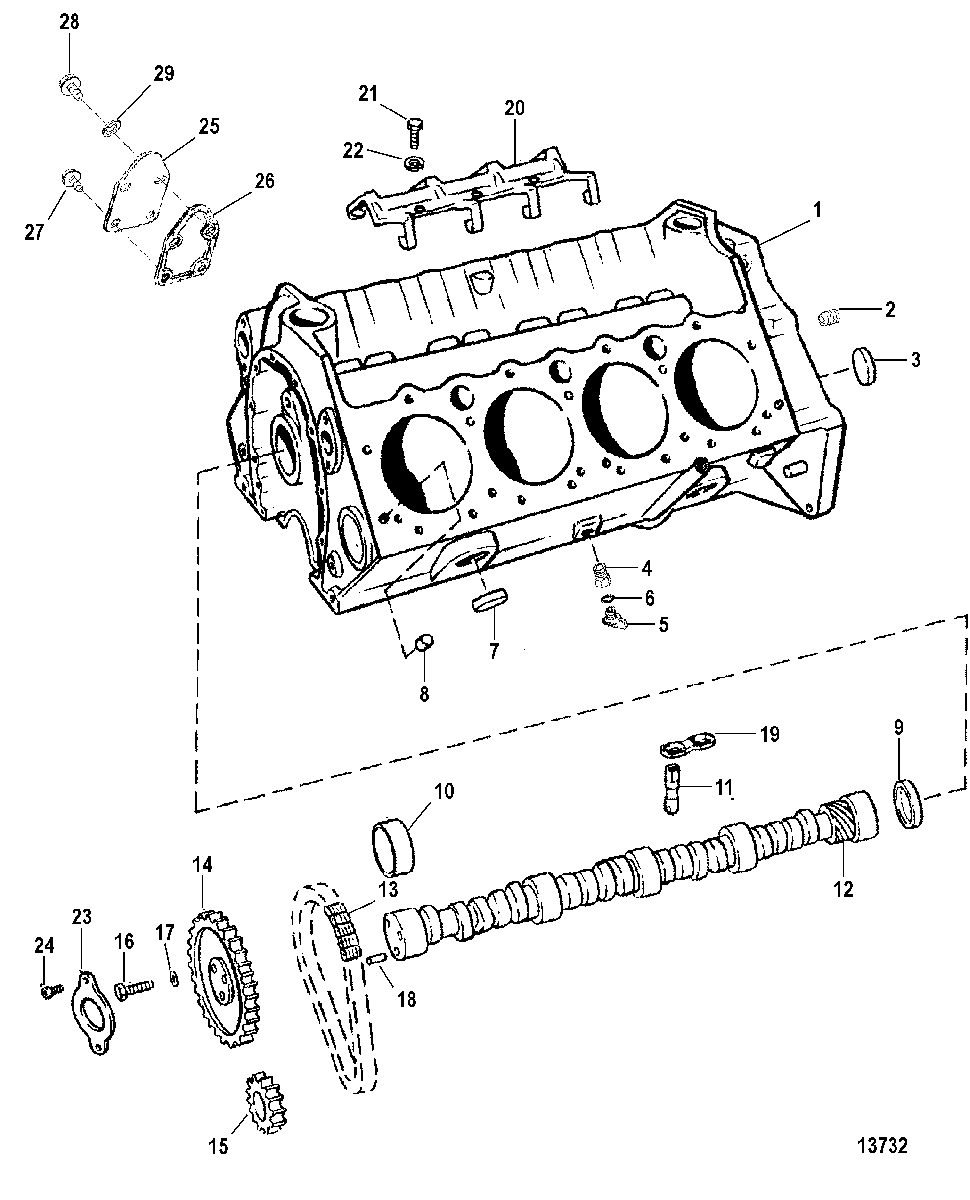

CYLINDER BLOCK AND CAMSHAFT для Mercruiser - 5.7L CARB MIE 0L002003 THRU OM316999
-
№АртикулНазвание
-
1NSS NOT SOLD SEPARATE, CYLINDER BLOCK ASSEMBLY
(ORDER LONG BLOCK 863661A1)NOT SOLD SEPARATE, CYLINDER BLOCK ASSEMBLY
(ORDER LONG BLOCK 863661A1) -
222-32561 PLUG, (.250-18 x .41)PLUG, (.250-18 x .41)
-
319-816565 PLUG, Pipe(.468)PLUG, Pipe(.468)
-
422-860088 BUSHINGBUSHING
-
522-8M0119211 PLUG KIT, (.500-13) Royal BluePLUG KIT, (.500-13) Royal Blue
-
625-62706 O-RING, (.426 x .070)O-RING, (.426 x .070)
-
719-34270 EXPANSION PLUG, (1.625)EXPANSION PLUG, (1.625)
-
817-35465 PIN, Dowel (.312)PIN, Dowel (.312)
-
922-72640 PLUG, Expansion (REAR CAMSHAFT)PLUG, Expansion (REAR CAMSHAFT)
-
1023-85674 BEARING SETBEARING SET
-
1117340T1 LIFTER, RollerLIFTER, Roller
-
12431-811658 CAMSHAFTCAMSHAFT
-
1317161T CHAIN, TimingCHAIN, Timing
-
1443-8116591 SPROCKET, CamshaftSPROCKET, Camshaft
-
1543-17160 SPROCKET, CrankshaftSPROCKET, Crankshaft
-
1610-8M0043993 SCREW, (.312-18 x .750)SCREW, (.312-18 x .750)
-
1712-848136 WASHER, (.328 x .680 x .190)WASHER, (.328 x .680 x .190)
-
1817-843378 PIN, Dowel (1/4 n. Diameter)PIN, Dowel (1/4 n. Diameter)
-
1917341T GUIDE, LifterGUIDE, Lifter
-
20811662 RETAINER, Lifter GuideRETAINER, Lifter Guide
-
2110-34500 SCREW, (.312-18 x .625)SCREW, (.312-18 x .625)
-
2212-811664 WASHER, (.3125 Inch)WASHER, (.3125 Inch)
-
23845941 RETAINERRETAINER
-
2410-845943 SCREW, (.250-20 x .500)SCREW, (.250-20 x .500)
-
25807695 PLATEPLATE
-
2627-34898 GASKETGASKET
-
2710-8M0040582 SCREW, (.250-20 x .563)SCREW, (.250-20 x .563)
-
2810-98261 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
2913-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
-8M0088397 LONGBLOCK ASSEMBLY
(5.7L)LONGBLOCK ASSEMBLY
(5.7L) -
-92-809825 RTV SILICONE, (3 Ounce Tube) Metallic Blue (WHERE APPLICABLE)RTV SILICONE, (3 Ounce Tube) Metallic Blue (WHERE APPLICABLE)
-
-92-34227Q02 SEALING COMPOUND, (16 Ounce) (WHERE APPLICABLE)SEALING COMPOUND, (16 Ounce) (WHERE APPLICABLE)
-
-27-861246A05 GASKET SETGASKET SET
