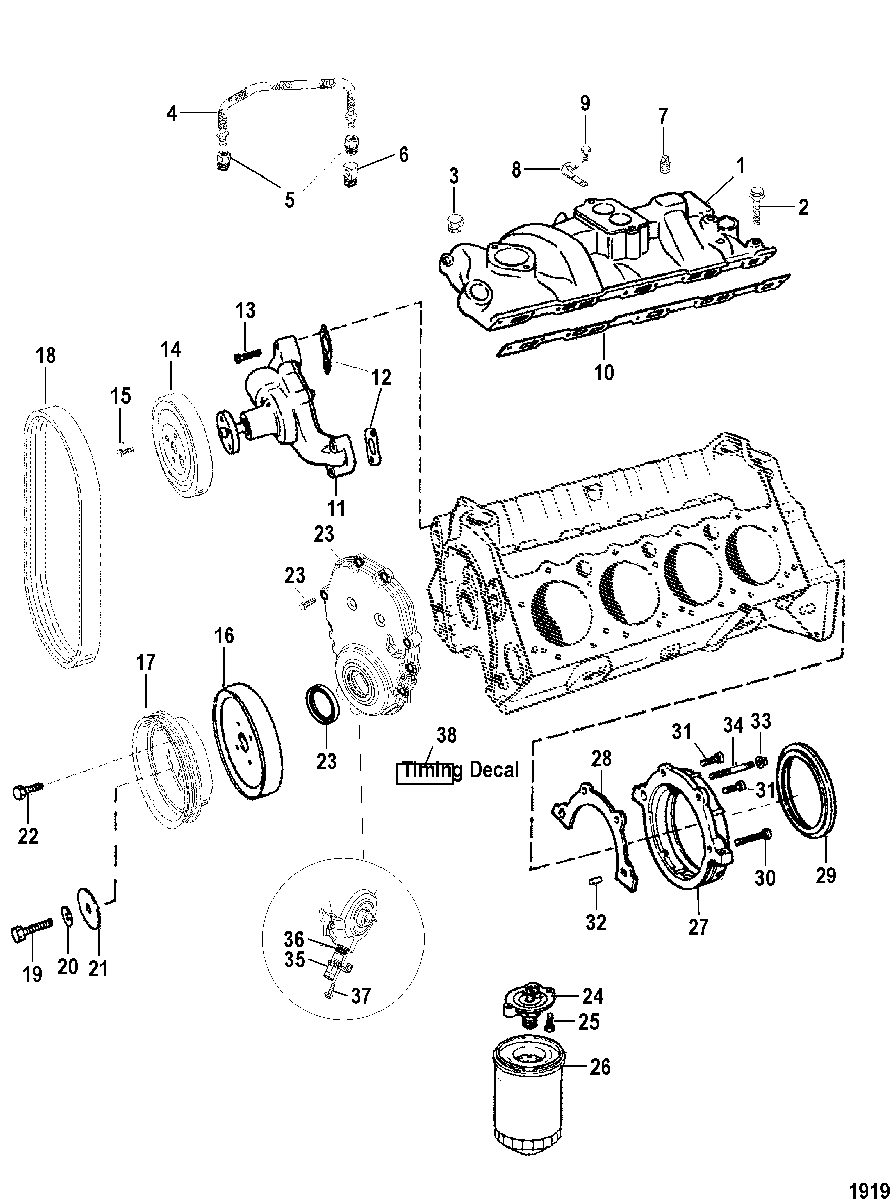

INTAKE MANIFOLD, WATER PUMP, AND FRONT COVER для Mercruiser - 5.7L CARB MIE 0L002003 THRU OM316999

  • №
    Артикул
    Название
  • 1
    860100A1 MANIFOLD ASSEMBLY, Intake
    MANIFOLD ASSEMBLY, Intake
  • 2
    10-808010 SCREW, (.312-18 x 1.375)
    SCREW, (.312-18 x 1.375)
  • 3
    22-384071 PLUG, Pipe (.500)
    PLUG, Pipe (.500)
  • 4
    32-865100A01 TUBE
    TUBE
  • 5
    22-805563 CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare)
    CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare)
  • 5
    22-805563 CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare)
    (V-DRIVE/ FORWARD FACING ELBOWS)
    CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare)
    (V-DRIVE/ FORWARD FACING ELBOWS)
  • 6
    22-47630 ELBOW, 90 Degree
    (V-DRIVE/ FORWARD FACING ELBOWS)
    ELBOW, 90 Degree
    (V-DRIVE/ FORWARD FACING ELBOWS)
  • 7
    22-12524 PLUG, (.375)
    PLUG, (.375)
  • 8
    54-73668 J-CLIP
    J-CLIP
  • 9
    10-86750 SCREW, (.312-18 x .620)
    SCREW, (.312-18 x .620)
  • 10
    27-807473A1 GASKET SET
    GASKET SET
  • 11
    46-8M0113734 PUMP ASSEMBLY, Water, Water
    PUMP ASSEMBLY, Water, Water
  • 12
    27-34897 GASKET
    GASKET
  • 13
    10-32132 SCREW, (.375-16 x 1.750)
    SCREW, (.375-16 x 1.750)
  • 13
    10-47688 SCREW, (.375-16 x 2.750)
    SCREW, (.375-16 x 2.750)
  • 13
    16-8M0076418 STUD, (.312-24/.375-16 x 2.5625)
    STUD, (.312-24/.375-16 x 2.5625)
  • 14
    807729T PULLEY
    PULLEY
  • 15
    10-47277 SCREW, (.312-24 x .750)
    SCREW, (.312-24 x .750)
  • 16
    852946001 BALANCER, Harmonic
    BALANCER, Harmonic
  • 17
    807730T PULLEY
    PULLEY
  • 18
    57-807755Q04 BELT, Serpentine
    SN# 0L677226 & Below
    BELT, Serpentine
    SN# 0L677226 & Below
  • 18
    57-865615Q05 BELT, Serpentine
    SN# 0L677227 & Up
    BELT, Serpentine
    SN# 0L677227 & Up
  • 19
    10-8M2021674 SCREW, (.437-20 x 2.50)
    SCREW, (.437-20 x 2.50)
  • 20
    13-39131 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 21
    12-71458 WASHER
    WASHER
  • 22
    10-34352 SCREW, (.375-24 x .875)
    SCREW, (.375-24 x .875)
  • 23
    835005 COVER ASSEMBLY, Timing
    (W/O CRANK POSITION SENSOR)
    COVER ASSEMBLY, Timing
    (W/O CRANK POSITION SENSOR)
  • 23
    863396001 TIMING COVER ASSEMBLY
    (USE W/CRANK POSITION SENSOR)
    TIMING COVER ASSEMBLY
    (USE W/CRANK POSITION SENSOR)
  • 24
    71920 VALVE ASSEMBLY, Filter
    (W/O REMOTE OIL FILTER)
    VALVE ASSEMBLY, Filter
    (W/O REMOTE OIL FILTER)
  • 25
    10-54786 SCREW, (.312-18 x 1.250)
    (W/O REMOTE OIL FILTER)
    SCREW, (.312-18 x 1.250)
    (W/O REMOTE OIL FILTER)
  • 26
    35-866340Q03 FILTER, Oil
    (W/O REMOTE OIL FILTER)
    FILTER, Oil
    (W/O REMOTE OIL FILTER)
  • 27
    852940 HOUSING ASSEMBLY, With Studs, Oil Seal (REAR)
    HOUSING ASSEMBLY, With Studs, Oil Seal (REAR)
  • 28
    27-881715 GASKET
    GASKET
  • 29
    26-852941 SEAL, Oil (REAR)
    SEAL, Oil (REAR)
  • 30
    10-8M0064241 BOLT, (.250-20 x 1.750)
    BOLT, (.250-20 x 1.750)
  • 31
    10-14242 BOLT, (.250-20 x .875)
    BOLT, (.250-20 x .875)
  • 32
    17-14263 PIN, Dowel
    PIN, Dowel
  • 33
    11-8M0098315 NUT, (.250-20)
    NUT, (.250-20)
  • 34
    16-14827 STUD, (.250-20 x 2.180)
    STUD, (.250-20 x 2.180)
  • 35
    864297T01 SENSOR ASSEMBLY
    SENSOR ASSEMBLY
  • 36
    25-885192 O-RING
    O-RING
  • 37
    10-884018001 SCREW
    SCREW
  • 38
    37-8M0079626 TIMING DECAL
    TIMING DECAL
  • -
    27-861246A05 GASKET SET
    GASKET SET
