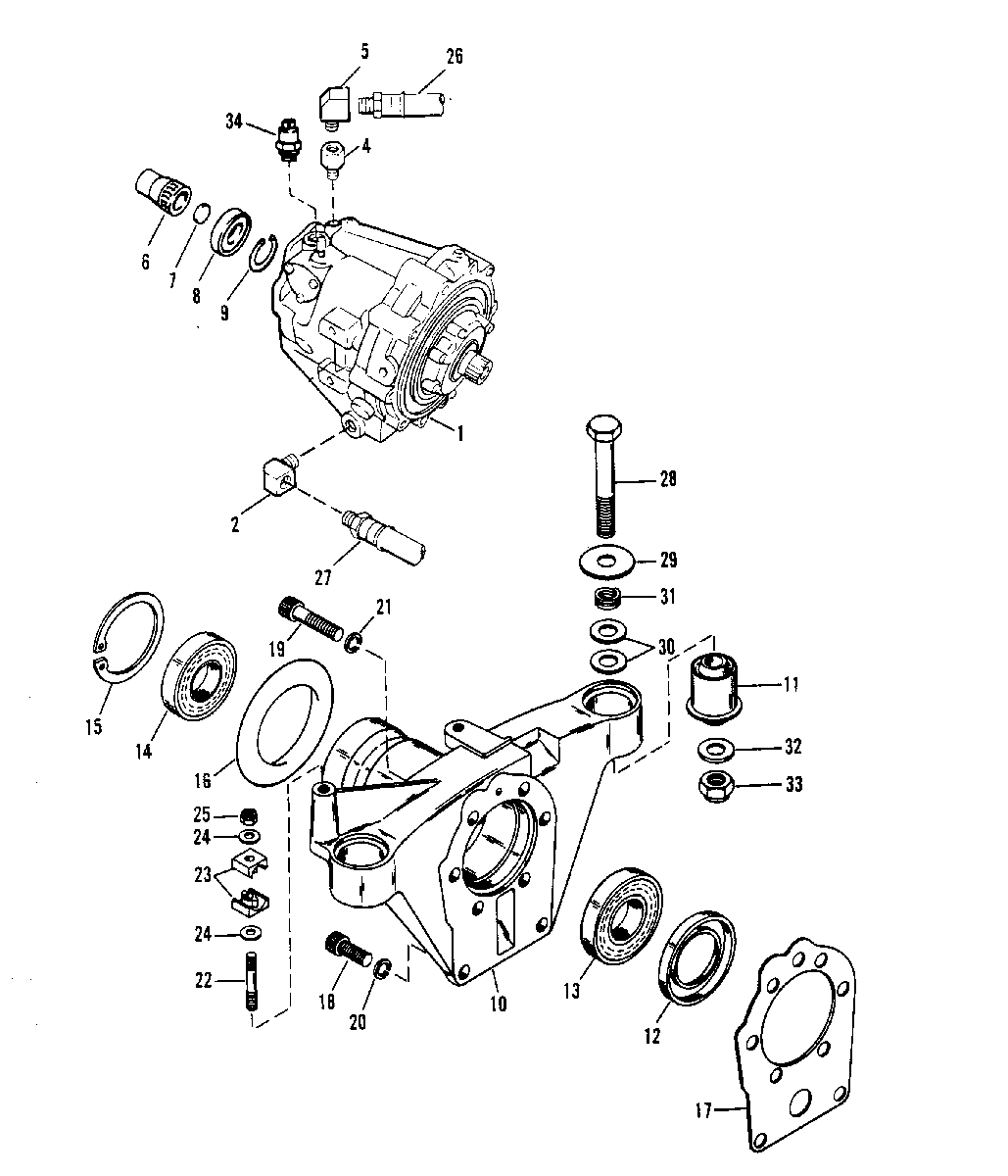

TRANSMISSION ASSEMBLY (TR) для Mercruiser - 300 TEMPEST GM 350 V-8 1985-1986 6668677 THRU 0B430367

  • №
    Артикул
    Название
  • 1
    47754A9 TRANSMISSION ASSEMBLY
    TRANSMISSION ASSEMBLY
  • 2
    22-47629 ELBOW, TRANSMISSION TO OIL HOSE
    ELBOW, TRANSMISSION TO OIL HOSE
  • 4
    22-88517 FITTING
    FITTING
  • 5
    22-47631 ELBOW, TRANSMISSION TO OIL HOSE
    ELBOW, TRANSMISSION TO OIL HOSE
  • 6
    57758A2 ENGINE COUPLING ASSEMBLY TRANSMISSION
    ENGINE COUPLING ASSEMBLY TRANSMISSION
  • 7
    19-47463 PLUG, EXPANSION-ENGINE COUPLING
    PLUG, EXPANSION-ENGINE COUPLING
  • 8
    30-47470 BALL BEARING, ENGINE COUPLING
    BALL BEARING, ENGINE COUPLING
  • 9
    53-47469 RING, SNAP-BALL BEARING TO ENGINE COUPLING
    RING, SNAP-BALL BEARING TO ENGINE COUPLING
  • 10
    98322A2 TAILSTOCK ASSEMBLY, BEARING SUPPORT
    TAILSTOCK ASSEMBLY, BEARING SUPPORT
  • 11
    35852 MOUNT, RUBBER-TAILSTOCK
    MOUNT, RUBBER-TAILSTOCK
  • 12
    26-47465 OIL SEAL, TAILSTOCK
    OIL SEAL, TAILSTOCK
  • 13
    30-57762T BALL BEARING, TAILSTOCK (3-5/32" O.D.)
    BALL BEARING, TAILSTOCK (3-5/32" O.D.)
  • 14
    30-32537T BALL BEARING, TAILSTOCK (2-27/32" O.D.)
    BALL BEARING, TAILSTOCK (2-27/32" O.D.)
  • 15
    53-54481 RING,SNAP-BALL BEARING TO TAILSTOCK
    RING,SNAP-BALL BEARING TO TAILSTOCK
  • 16
    25-54067 SEAL, TAILSTOCK
    SEAL, TAILSTOCK
  • 17
    27-47903 GASKET, TAILSTOCK
    GASKET, TAILSTOCK
  • 18
    10-29081 SCREW, TAILSTOCK TO TRANSMISSION (1-1/4")
    SCREW, TAILSTOCK TO TRANSMISSION (1-1/4")
  • 19
    10-99524 SCREW, TAILSTOCK TO TRANSMISSION (2")
    SCREW, TAILSTOCK TO TRANSMISSION (2")
  • 20
    13-30381 LOCKWASHER, TAILSTOCK SCREW
    LOCKWASHER, TAILSTOCK SCREW
  • 21
    13-32993 LOCKWASHER,TAILSTOCK SCREW
    LOCKWASHER,TAILSTOCK SCREW
  • 22
    16-99801 STUD,CLAMP BLOCK
    STUD,CLAMP BLOCK
  • 23
    41058 CLAMP BLOCK, SHIFT CABLE
    CLAMP BLOCK, SHIFT CABLE
  • 24
    12-69056 WASHER, CLAMP BLOCK STUD
    WASHER, CLAMP BLOCK STUD
  • 25
    11-8267089 NUT, CLAMP BLOCK STUD
    NUT, CLAMP BLOCK STUD
  • 26
    32-4751612 HOSE, TRANSMISSION TO OIL COOLER (16-3/4")
    HOSE, TRANSMISSION TO OIL COOLER (16-3/4")
  • 27
    32-475163 HOSE, TRANSMISSION TO OIL COOLER (7-7/8")
    HOSE, TRANSMISSION TO OIL COOLER (7-7/8")
  • 28
    10-47467 SCREW, TAILSTK - INNER TRANSOM PLATE
    (5-1/2")
    SCREW, TAILSTK - INNER TRANSOM PLATE
    (5-1/2")
  • 29
    12-47475 WASHER, TAILSTK- INNER TRANSOM PLATE SCREWS
    WASHER, TAILSTK- INNER TRANSOM PLATE SCREWS
  • 30
    12-47466 WASHER, TAILSTK/INNER TRANS. PLATE SCREWS
    (NEOPRENE)
    WASHER, TAILSTK/INNER TRANS. PLATE SCREWS
    (NEOPRENE)
  • 31
    13-34846 LOCKWASHER, TAILSTK - INNER TRANSOM PLATE SCREWS
    LOCKWASHER, TAILSTK - INNER TRANSOM PLATE SCREWS
  • 32
    12-33171 WASHER, TAILSTK - INNER TRANSOM PLATE SCREWS
    WASHER, TAILSTK - INNER TRANSOM PLATE SCREWS
  • 33
    11-22339 NUT, TAILSTK - INNER TRANSOM PLATE SCREWS
    NUT, TAILSTK - INNER TRANSOM PLATE SCREWS
  • 34
    87-88031 SWITCH, TEMPERATURE
    SWITCH, TEMPERATURE
