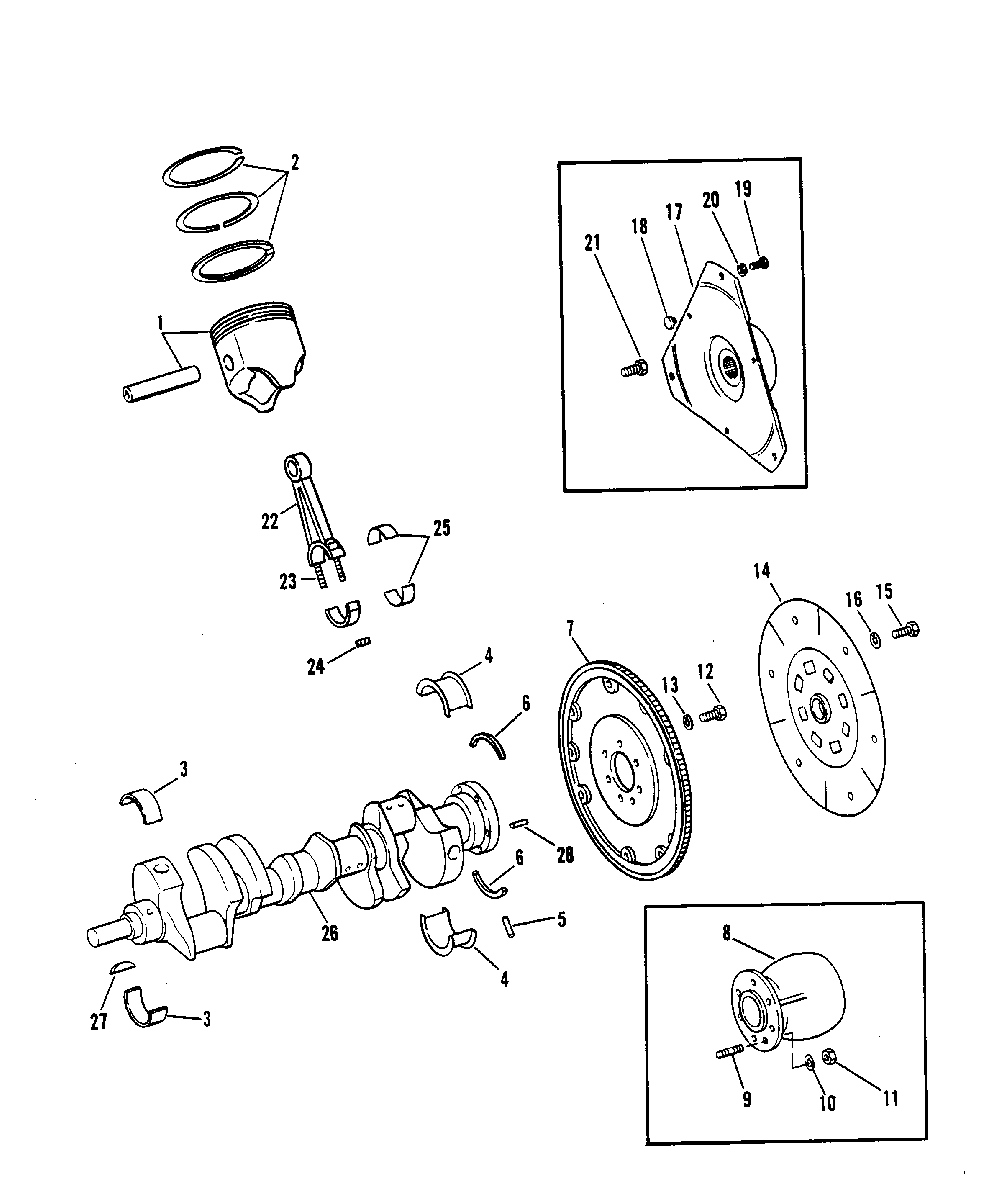

CRANKSHAFT, PISTONS AND CONN. RODS для Mercruiser - 300 TEMPEST GM 350 V-8 1985-1986 6668677 THRU 0B430367

  • №
    Артикул
    Название
  • 1
    735-9846 PISTON AND PISTON PIN ASSEMBLY (.001 O.S.)
    PISTON AND PISTON PIN ASSEMBLY (.001 O.S.)
  • 1
    735-5950 PISTON AND PISTON PIN ASSEMBLY (.030 O.S.)
    PISTON AND PISTON PIN ASSEMBLY (.030 O.S.)
  • 2
    39-17464 RING, PISTON-8 SETS (STANDARD)
    RING, PISTON-8 SETS (STANDARD)
  • 2
    39-17465 RING, PISTON-8 SETS (.030 O.S.)
    RING, PISTON-8 SETS (.030 O.S.)
  • 3/4
    23-818465 BEARING SET, CRANKSHAFT (STANDARD)
    BEARING SET, CRANKSHAFT (STANDARD)
  • 3/4
    23-818467 BEARING SET, CRANKSHAFT (.010 U.S.)
    BEARING SET, CRANKSHAFT (.010 U.S.)
  • 3/4
    23-818468 BEARING SET, CRANKSHAFT (.020 U.S.)
    BEARING SET, CRANKSHAFT (.020 U.S.)
  • 5
    17-843378 PIN, DOWEL-REAR BEARING CAP (1/4" DIA.)
    PIN, DOWEL-REAR BEARING CAP (1/4" DIA.)
  • 6
    26-814622 OIL SEAL, REAR BEARING CAP(2-PIECE)
    OIL SEAL, REAR BEARING CAP(2-PIECE)
  • 7
    222-6355 FLYWHEEL (12-3/4" DIA.) MR
    FLYWHEEL (12-3/4" DIA.) MR
  • 7
    230-9425 FLYWHEEL (14" DIA.) MR
    FLYWHEEL (14" DIA.) MR
  • 7
    222-8M0047213 FLYWHEEL (14" DIA.) MR
    FLYWHEEL (14" DIA.) MR
  • 7
    230-4614 FLYWHEEL TR
    FLYWHEEL TR
  • 7
    200-8M0083286 FLYWHEEL TR
    FLYWHEEL TR
  • 8
    76850A2 ENGINE COUPLING ASSEMBLY
    MR CAST COUPLING
    ENGINE COUPLING ASSEMBLY
    MR CAST COUPLING
  • 9
    16-98532A1 STUD, COUPLING TO FLYWHEEL
    MR CAST COUPLING
    STUD, COUPLING TO FLYWHEEL
    MR CAST COUPLING
  • 10
    12-34567 WASHER, COUPLING STUD
    MR CAST COUPLING
    WASHER, COUPLING STUD
    MR CAST COUPLING
  • 11
    11-8M2008293 NUT, COUPLING STUD
    MR CAST COUPLING
    NUT, COUPLING STUD
    MR CAST COUPLING
  • 12
    10-845757 SCREW, FLYWHEEL TO CRANKSHAFT (TR)
    SCREW, FLYWHEEL TO CRANKSHAFT (TR)
  • 13
    13-39131 LOCKWASHER, FLYWHEEL SCREW (TR)
    LOCKWASHER, FLYWHEEL SCREW (TR)
  • 14
    860125T DRIVE PLATE, FLYWHEEL (TR)
    DRIVE PLATE, FLYWHEEL (TR)
  • 15
    10-35091 SCREW, DRIVE PLATE TO FLYWHEEL (TR)
    SCREW, DRIVE PLATE TO FLYWHEEL (TR)
  • 16
    13-35048 LOCKWASHER, DRIVE PLATE SCREW (TR)
    LOCKWASHER, DRIVE PLATE SCREW (TR)
  • 17
    18643A7 COUPLING ASSEMBLY
    MR STAMPED COUPLING
    COUPLING ASSEMBLY
    MR STAMPED COUPLING
  • 18
    269011 RUBBER BUMPER
    MR STAMPED COUPLING
    RUBBER BUMPER
    MR STAMPED COUPLING
  • 19
    10-14883 SCREW, COUPLING
    MR STAMPED COUPLING
    SCREW, COUPLING
    MR STAMPED COUPLING
  • 20
    12-13510 WASHER, COUPLING SCREW
    MR STAMPED COUPLING
    WASHER, COUPLING SCREW
    MR STAMPED COUPLING
  • 21
    10-845757 SCREW, FLYWHEEL TO CRANKSHAFT
    MR STAMPED COUPLING
    SCREW, FLYWHEEL TO CRANKSHAFT
    MR STAMPED COUPLING
  • 22
    614-5951 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 23
    10-85802 BOLT, CONNECTING ROD CAP
    BOLT, CONNECTING ROD CAP
  • 24
    11-37493 NUT, CONNECTING ROD CAP BOLY
    NUT, CONNECTING ROD CAP BOLY
  • 25
    23-85701 BEARING SET, CONNECTING ROD (STANDARD)
    BEARING SET, CONNECTING ROD (STANDARD)
  • 25
    23-85704 BEARING SET, CONNECTING ROD (.010 U.S.)
    BEARING SET, CONNECTING ROD (.010 U.S.)
  • 25
    23-85705 BEARING SET, CONNECTING ROD (.020 U.S.)
    BEARING SET, CONNECTING ROD (.020 U.S.)
  • 26
    429-6541 CRANKSHAFT
    CRANKSHAFT
  • 26
    429-9526 CRANKSHAFT
    CRANKSHAFT
  • 27
    28-34466 KEY, CRANKSHAFT PULLEY AND BALANCER
    KEY, CRANKSHAFT PULLEY AND BALANCER
  • 28
    17-43504 DOWEL PIN, CRANKSHAFT
    DOWEL PIN, CRANKSHAFT
