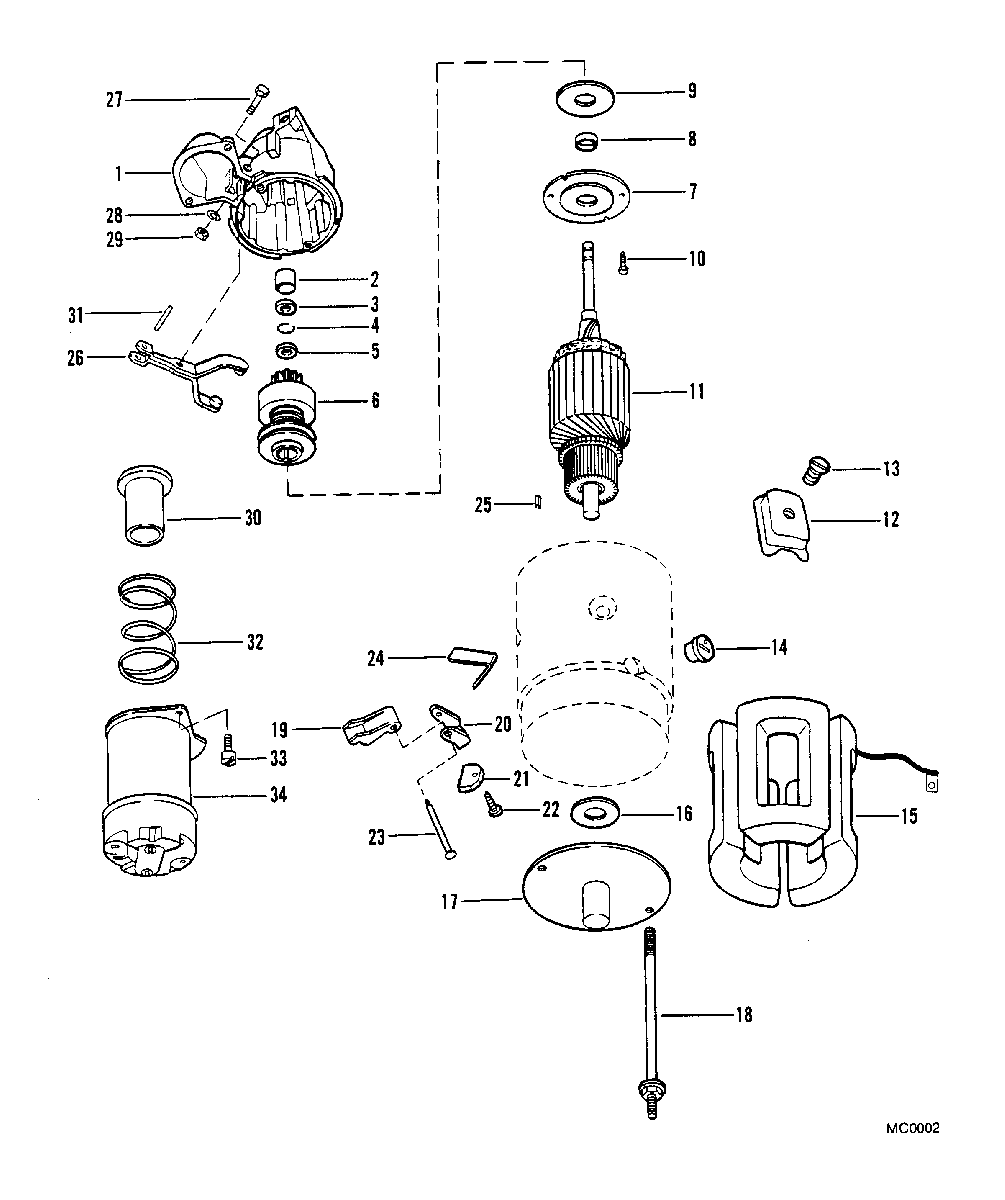

STARTER MOTOR (MR- 12-3/4" FLYWHEEL) для Mercruiser - 300 TEMPEST GM 350 V-8 1985-1986 6668677 THRU 0B430367

  • №
    Артикул
    Название
  • -
    50-8M0090697 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 1
    71696 HOUSING, DRIVE END
    HOUSING, DRIVE END
  • 2
    23-33369 BUSHING, DRIVE END HOUSING
    BUSHING, DRIVE END HOUSING
  • 3
    23-809457 COLLAR, THRUST
    COLLAR, THRUST
  • 4
    53-33290 RING, RETAINING - PINION STOP COLLAR
    RING, RETAINING - PINION STOP COLLAR
  • 5
    33291 COLLAR, PINION STOP
    COLLAR, PINION STOP
  • 6
    79205T DRIVE ASSEMBLY, CLUTCH
    DRIVE ASSEMBLY, CLUTCH
  • 7
    N.S.S. PLATE, BEARING (DELCO REMY #1956939)
    PLATE, BEARING (DELCO REMY #1956939)
  • 8
    23-71694 BUSHING, BEARING PLATE
    BUSHING, BEARING PLATE
  • 9
    12-68614 WASHER, BEARING PLATE
    WASHER, BEARING PLATE
  • 10
    10-79209 SCREW, BEARING PLATE
    SCREW, BEARING PLATE
  • 11
    75665 ARMATURE
    ARMATURE
  • 12
    N.S.S. SHOE, POLE - FIELD COIL (DELCO REMY #810601)
    SHOE, POLE - FIELD COIL (DELCO REMY #810601)
  • 13
    N.S.S. SCREW, POLE SHOE TO FIELD COIL
    (DELCO REMY #1968396)
    SCREW, POLE SHOE TO FIELD COIL
    (DELCO REMY #1968396)
  • 14
    25-79208 GROMMET, FIELD COIL - FIELD FRAME
    GROMMET, FIELD COIL - FIELD FRAME
  • 15
    75664 FIELD COIL ASSEMBLY
    FIELD COIL ASSEMBLY
  • 16
    12-33258 WASHER, LEATHER - COMMUTATOR END FRAME
    WASHER, LEATHER - COMMUTATOR END FRAME
  • 17
    79211 FRAME, COMMUTATOR END - LOWER
    FRAME, COMMUTATOR END - LOWER
  • 18
    N.S.S. BOLT, THRU (DELCO REMY #1941111)
    BOLT, THRU (DELCO REMY #1941111)
  • 18
    N.S.S. BOLT, THRU (DELCO REMY #1939970)
    BOLT, THRU (DELCO REMY #1939970)
  • 19
    33284 HOLDER, INSULATED - FIELD FRAME BRUSH
    HOLDER, INSULATED - FIELD FRAME BRUSH
  • 20
    33283 HOLDER, FIELD FRAME BRUSH GROUND
    HOLDER, FIELD FRAME BRUSH GROUND
  • 21
    33270 BRUSH, FIELD FRAME
    BRUSH, FIELD FRAME
  • 22
    N.S.S. SCREW, BRUSH LEAD (DELCO REMY #1967747)
    SCREW, BRUSH LEAD (DELCO REMY #1967747)
  • 22
    N.S.S. SCREW, BRUSH LEAD (DELCO REMY #443527)
    SCREW, BRUSH LEAD (DELCO REMY #443527)
  • 23
    33294 SUPPORT PACKAGE
    GROUND AND INSULATED HOLDERS
    SUPPORT PACKAGE
    GROUND AND INSULATED HOLDERS
  • 24
    24-33285 SPRING, FIELD FRAME BRUSH
    SPRING, FIELD FRAME BRUSH
  • 25
    N.S.S. PIN, DOWEL - FIELD FRAME (DELCO REMY #809593)
    PIN, DOWEL - FIELD FRAME (DELCO REMY #809593)
  • 26
    71698 LEVER, SHIFT
    LEVER, SHIFT
  • 27
    N.S.S. STUD, SHIFT LEVER (DELCO REMY #1945804)
    STUD, SHIFT LEVER (DELCO REMY #1945804)
  • 28
    12-68615 WASHER, SHIFT LEVER STUD
    WASHER, SHIFT LEVER STUD
  • 29
    11-26484 NUT, SHIFT LEVER STUD
    NUT, SHIFT LEVER STUD
  • 30
    33317 PLUNGER, SHIFT LEVER
    PLUNGER, SHIFT LEVER
  • 31
    17-79207 PIN, PLUNGER TO SHIFT LEVER
    PIN, PLUNGER TO SHIFT LEVER
  • 32
    N.S.S. SPRING, PLUNGER RETURN
    (DELCO REMY #1958679)
    SPRING, PLUNGER RETURN
    (DELCO REMY #1958679)
  • 33
    N.S.S. SCREW, SOLENOID SWITCH
    (DELCO REMY #9413260)
    SCREW, SOLENOID SWITCH
    (DELCO REMY #9413260)
  • 34
    13037 SOLENOID SWITCH ASSEMBLY
    SOLENOID SWITCH ASSEMBLY
