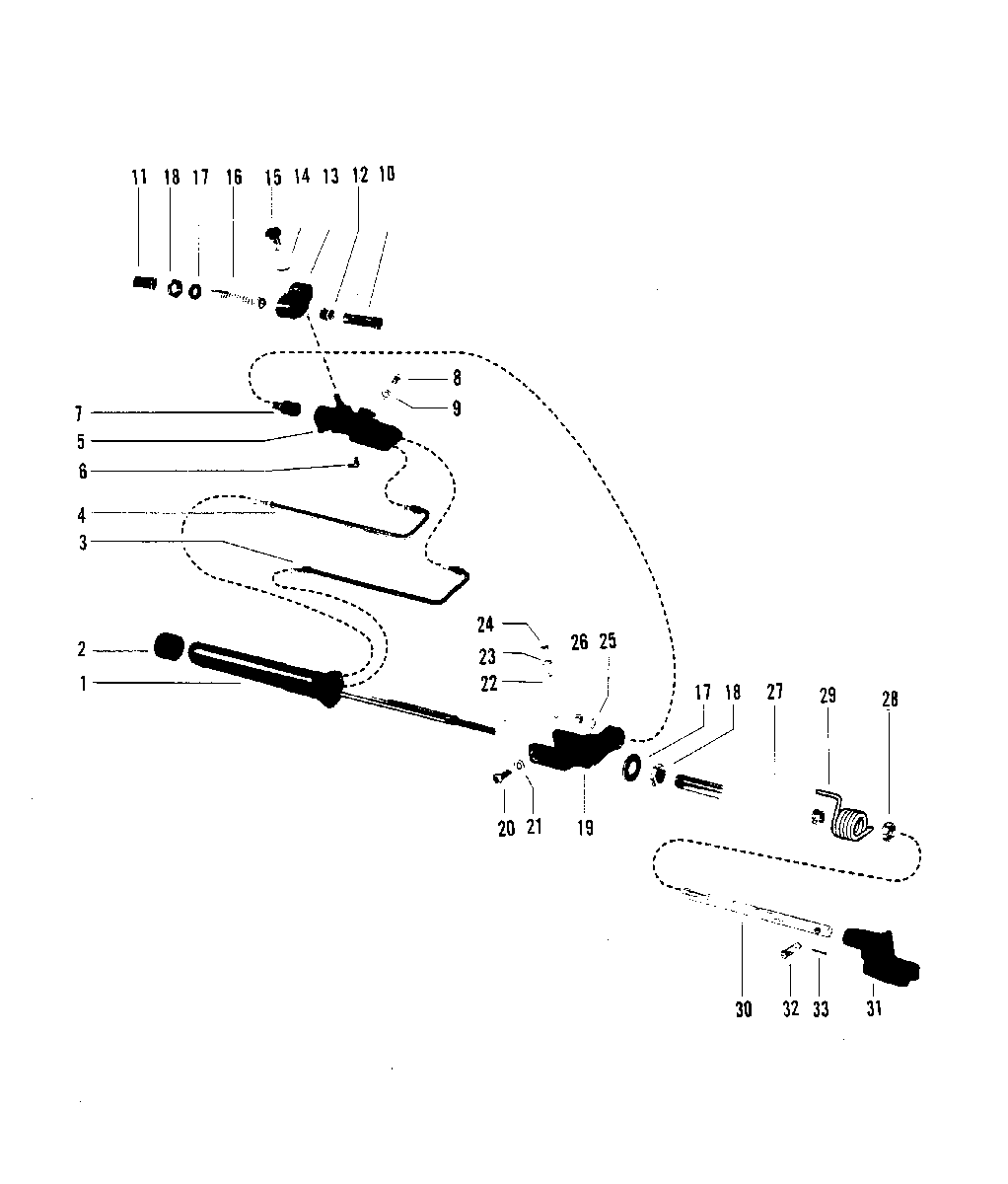

POWER STEERING CYLINDER (TR) для Mercruiser - 300 TEMPEST GM 350 V-8 1985-1986 6668677 THRU 0B430367

  • №
    Артикул
    Название
  • -
    55110A1 POWER STEERING CYLINDER ASSEMBLY
    POWER STEERING CYLINDER ASSEMBLY
  • 1
    57969A12 CYLINDER, BOOSTER-POWER STEERING
    CYLINDER, BOOSTER-POWER STEERING
  • 2
    26059 CAP, RUBBER-BOOSTER CYLINDER
    CAP, RUBBER-BOOSTER CYLINDER
  • 3
    32-57633 TUBE, EXTENDING-POWER STEERING
    TUBE, EXTENDING-POWER STEERING
  • 4
    32-57634 TUBE, RETRACTING-POWER STEERING
    TUBE, RETRACTING-POWER STEERING
  • 5
    816458A1 VALVE, POWER STEERING
    VALVE, POWER STEERING
  • 6
    22-67305 FITTING, GREASE-POWER VALVE
    FITTING, GREASE-POWER VALVE
  • 7
    16-55109T STUD, ADAPTER-POWER STEERING VALVE
    STUD, ADAPTER-POWER STEERING VALVE
  • 8
    10-37612 SCREW, CLAMPING (1-1/4")
    SCREW, CLAMPING (1-1/4")
  • 9
    13-35048 LOCKWASHER, CLAMPING SCREW
    LOCKWASHER, CLAMPING SCREW
  • 10
    23-60652 SLEEVE, ADJUSTING- CABLE GUIDE TUDE
    SLEEVE, ADJUSTING- CABLE GUIDE TUDE
  • 11
    64414 GUIDE, CABLE GUIDE TUBE
    GUIDE, CABLE GUIDE TUBE
  • 12
    23-60773 SLEEVE, CABLE GUIDE TUBE
    SLEEVE, CABLE GUIDE TUBE
  • 13
    55110T ADAPTER, CABLE GUIDE TUBE (DUAL)
    ADAPTER, CABLE GUIDE TUBE (DUAL)
  • 14
    13-20897 LOCKWASHER, DUAL ADAPTER NUT
    LOCKWASHER, DUAL ADAPTER NUT
  • 15
    11-55111 NUT, DUAL ADAPTER TO POWER STEERING VALVE
    NUT, DUAL ADAPTER TO POWER STEERING VALVE
  • 16
    32-55112 TUBE, CABLE GUIDE
    TUBE, CABLE GUIDE
  • 17
    12-37985 WASHER, CABLE GUIDE TUBE AND MOUNTING TUBE
    WASHER, CABLE GUIDE TUBE AND MOUNTING TUBE
  • 18
    11-8M0041651 NUT, CABLE GUIDE TUBE AND MOUNTING TUBE
    NUT, CABLE GUIDE TUBE AND MOUNTING TUBE
  • 19
    57286 BRACKET, MOUNTING - TRANSOM PLATE
    BRACKET, MOUNTING - TRANSOM PLATE
  • 20
    10-31832 SCREW, MOUNTING BRACKET - TRANSOM PLATE
    (1")
    SCREW, MOUNTING BRACKET - TRANSOM PLATE
    (1")
  • 21
    13-31848 LOCKWASHER, MOUNTING BRACKET SCREW
    LOCKWASHER, MOUNTING BRACKET SCREW
  • 22
    10-57968 SCREW, ADJUSTING - MOUNTING BRACKET (3")
    SCREW, ADJUSTING - MOUNTING BRACKET (3")
  • 23
    13-35048 LOCKWASHER, ADJUSTING SCREW
    LOCKWASHER, ADJUSTING SCREW
  • 24
    11-46335 NUT, ADJUSTING SCREW
    NUT, ADJUSTING SCREW
  • 25
    12-20959 WASHER, VALVE ADAPTER STUD
    WASHER, VALVE ADAPTER STUD
  • 26
    11-898832 NUT, VALVE ADAPTER STUD
    NUT, VALVE ADAPTER STUD
  • 27
    57971 TUBE, MOUNTING-BOOSTER ROD EXTENSION
    TUBE, MOUNTING-BOOSTER ROD EXTENSION
  • 28
    11-55983 NUT, JAM-MOUNTING TUBE
    NUT, JAM-MOUNTING TUBE
  • 29
    24-78498 SPRING, TORSION-MOUNTING TUBE
    SPRING, TORSION-MOUNTING TUBE
  • 30
    57970 EXTENSION, CYLINDER BOOSTER ROD
    EXTENSION, CYLINDER BOOSTER ROD
  • 31
    87854T ADAPTER, ROD END
    ADAPTER, ROD END
  • 32
    17-52798 PIN, CLEVIS
    STEERING CABLE AND CLEVIS ATTACHING
    PIN, CLEVIS
    STEERING CABLE AND CLEVIS ATTACHING
  • 33
    18-46950 COTTER PIN, CLEVIS PIN RETAINING
    COTTER PIN, CLEVIS PIN RETAINING
