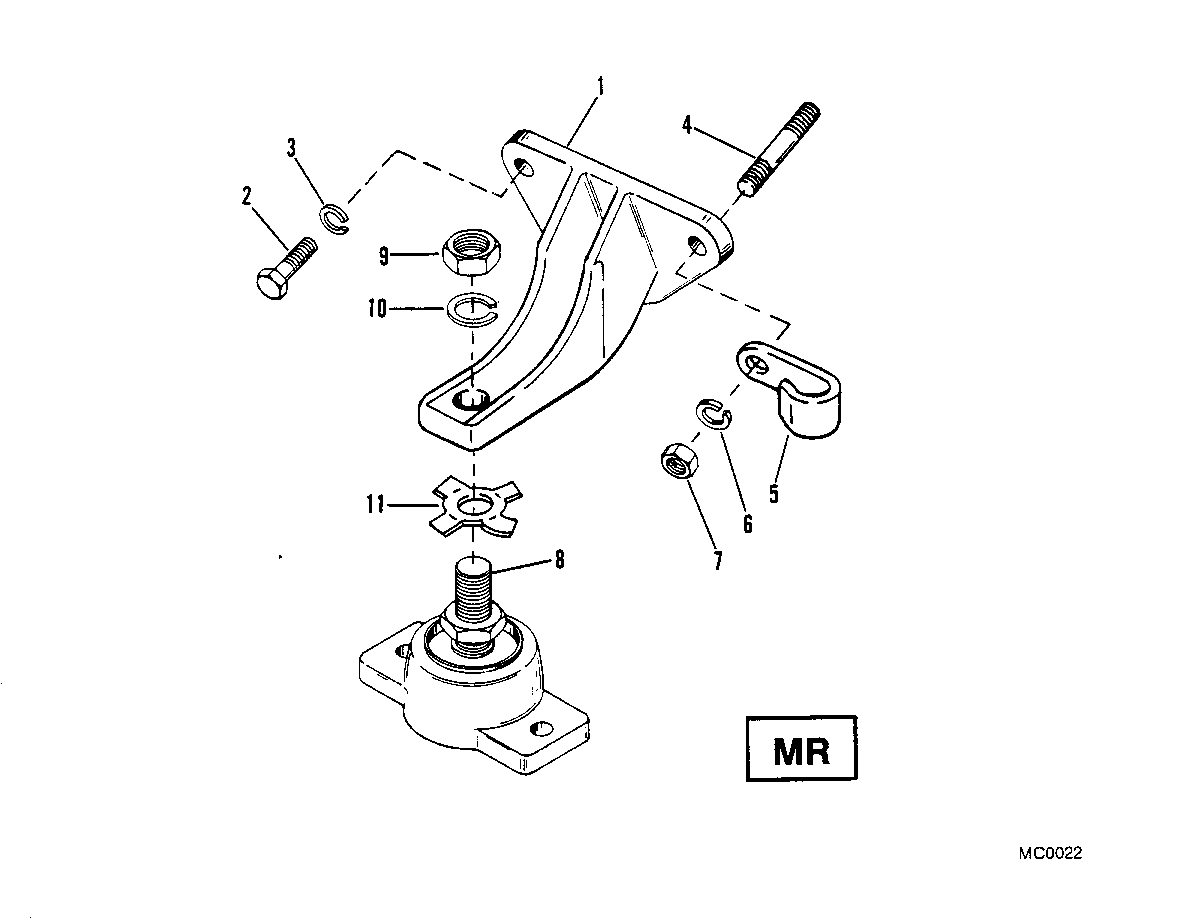

ENGINE MOUNTING (MR) для Mercruiser - 300 TEMPEST GM 350 V-8 1985-1986 6668677 THRU 0B430367

  • №
    Артикул
    Название
  • 1
    79550A1 BRACKET, MOUNTING-ENGINE (FRONT)
    BRACKET, MOUNTING-ENGINE (FRONT)
  • 2
    10-86517 SCREW, MOUNTING BRACKET TO ENGINE
    (1-1/4") PORT
    SCREW, MOUNTING BRACKET TO ENGINE
    (1-1/4") PORT
  • 3
    13-35048 LOCKWASHER, MOUNTING BRACKET SCREW
    PORT
    LOCKWASHER, MOUNTING BRACKET SCREW
    PORT
  • 4
    16-861316 STUD, MOUNTING BRACKET TO ENGINE
    STARBOARD
    STUD, MOUNTING BRACKET TO ENGINE
    STARBOARD
  • 5
    54-90204 CLIP, WIRING HARNESS
    STARBOARD
    CLIP, WIRING HARNESS
    STARBOARD
  • 6
    13-35048 LOCKWASHER, MOUNTING BRACKET STUD
    STARBOARD
    LOCKWASHER, MOUNTING BRACKET STUD
    STARBOARD
  • 7
    11-32219 NUT, MOUNTING BRACKET STUD
    STARBOARD
    NUT, MOUNTING BRACKET STUD
    STARBOARD
  • 8
    66284A2 BASE, ENGINE MOUNT
    BASE, ENGINE MOUNT
  • 9
    11-20739 NUT,JAM-ENGINE MOUNT BASE
    NUT,JAM-ENGINE MOUNT BASE
  • 10
    13-68102 LOCKWASHER, MOUNTING BRACKET
    LOCKWASHER, MOUNTING BRACKET
  • 11
    14-12657 TAB WASHER
    TAB WASHER
