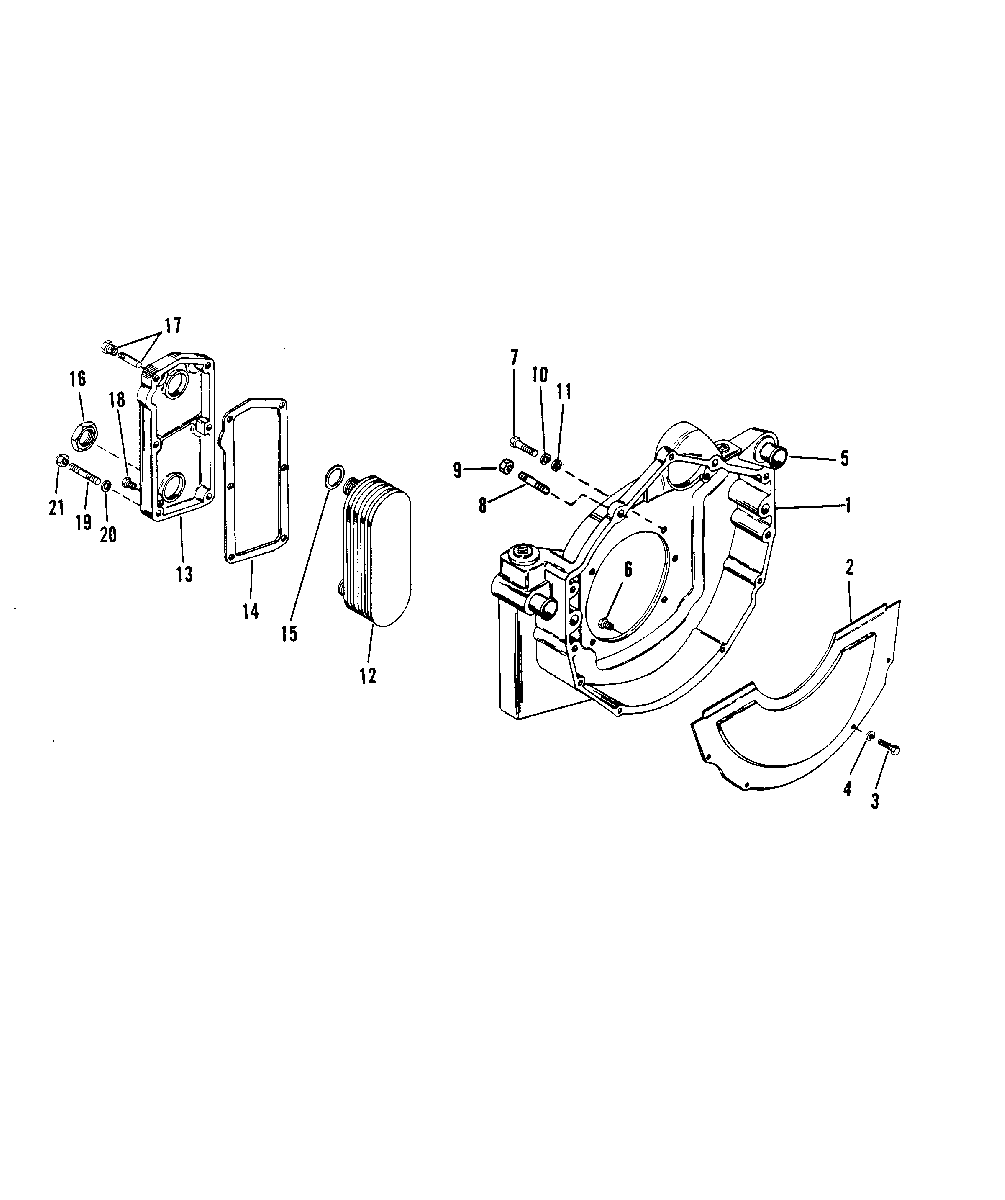

FLYWHEEL HOUSING (DUAL COOLER) (TR) для Mercruiser - 300 TEMPEST GM 350 V-8 1985-1986 6668677 THRU 0B430367

  • №
    Артикул
    Название
  • 1
    98096T FLYWHEEL HOUSING
    FLYWHEEL HOUSING
  • 2
    47542 COVER,FLYWHEEL HOUSING
    NOT USED ON STAGGERED INSTALLATION
    COVER,FLYWHEEL HOUSING
    NOT USED ON STAGGERED INSTALLATION
  • 3
    10-28635 SCREW, COVER TO HOUSING
    NOT USED ON STAGGERED INSTALLATION
    SCREW, COVER TO HOUSING
    NOT USED ON STAGGERED INSTALLATION
  • 3
    10-85486 SCREW (1/4"-20X3/8")
    NOT USED ON STAGGERED INSTALLATION
    SCREW (1/4"-20X3/8")
    NOT USED ON STAGGERED INSTALLATION
  • 4
    13-26992 LOCKWASHER, COVER SCREW
    NOT USED ON STAGGERED INSTALLATION
    LOCKWASHER, COVER SCREW
    NOT USED ON STAGGERED INSTALLATION
  • 5
    23-47511 SLEEVE, CONNECTING-FLYWHEEL HOUSING
    SLEEVE, CONNECTING-FLYWHEEL HOUSING
  • 6
    22-328022 PLUG, DRAIN-FLYWHEEL HOUSING
    PLUG, DRAIN-FLYWHEEL HOUSING
  • 7
    10-37612 SCREW (3/8"X1-1/4")
    SCREW (3/8"X1-1/4")
  • 7
    10-63826 SCREW (3/8" X2-1/2")
    SCREW (3/8" X2-1/2")
  • 7
    10-98260 SCREW (3/8" X5/8")
    SCREW (3/8" X5/8")
  • 8
    16-861316 STUD, FLYWHEEL HOUSING
    STUD, FLYWHEEL HOUSING
  • 9
    11-32219 NUT, FLYWHEEL HOUSING STUD
    NUT, FLYWHEEL HOUSING STUD
  • 10
    13-35048 LOCKWASHER,HOUSING SCREW
    LOCKWASHER,HOUSING SCREW
  • 10
    12-20553 WASHER, HOUSING SCREW
    WASHER, HOUSING SCREW
  • 11
    12-33181 WASHER, SEALING-HOUSING SCREW
    WASHER, SEALING-HOUSING SCREW
  • 12
    47610A15 COOLER, OIL RIGHT SIDE
    COOLER, OIL RIGHT SIDE
  • 13
    94911A2 COVER, OIL COOLER RIGHT SIDE
    COVER, OIL COOLER RIGHT SIDE
  • 14
    27-47495 GASKET, OIL COOLER COVER RIGHT SIDE
    GASKET, OIL COOLER COVER RIGHT SIDE
  • 15
    25-864701 "O" RING, SEAL - OIL COOLER RIGHT SIDE
    "O" RING, SEAL - OIL COOLER RIGHT SIDE
  • 16
    11-47521 NUT, JAM-OIL COOLER RIGHT SIDE
    NUT, JAM-OIL COOLER RIGHT SIDE
  • 17
    97-806000 ELECTRODE, OIL COOLER RIGHT SIDE
    ELECTRODE, OIL COOLER RIGHT SIDE
  • 18
    22-328022 PLUG, 1/8 " PIPE RIGHT SIDE
    PLUG, 1/8 " PIPE RIGHT SIDE
  • 12
    47610A15 COOLER, OIL LEFT SIDE
    COOLER, OIL LEFT SIDE
  • 13
    94910 COVER, OIL COOLER LEFT SIDE
    COVER, OIL COOLER LEFT SIDE
  • 14
    27-821602 GASKET, OIL COOLER COVER LEFT SIDE
    GASKET, OIL COOLER COVER LEFT SIDE
  • 15
    25-864701 "O" RING, SEALING -OIL COOLER LEFT SIDE
    "O" RING, SEALING -OIL COOLER LEFT SIDE
  • 16
    11-47521 NUT, JAM - OIL COOLER LEFT SIDE
    NUT, JAM - OIL COOLER LEFT SIDE
  • 17
    97-806000 ELECTRODE, OIL COOLER LEFT SIDE
    ELECTRODE, OIL COOLER LEFT SIDE
  • 18
    22-328022 PLUG, 1/8" PIPE LEFT SIDE
    PLUG, 1/8" PIPE LEFT SIDE
  • 19
    16-46857 STUD, COOLER COVER
    STUD, COOLER COVER
  • 20
    12-36533 WASHER, SEALING
    WASHER, SEALING
  • 20
    12-22753 WASHER, COOLER COVER NUT
    WASHER, COOLER COVER NUT
  • 21
    11-82670911 NUT, COOLER COVER
    NUT, COOLER COVER
