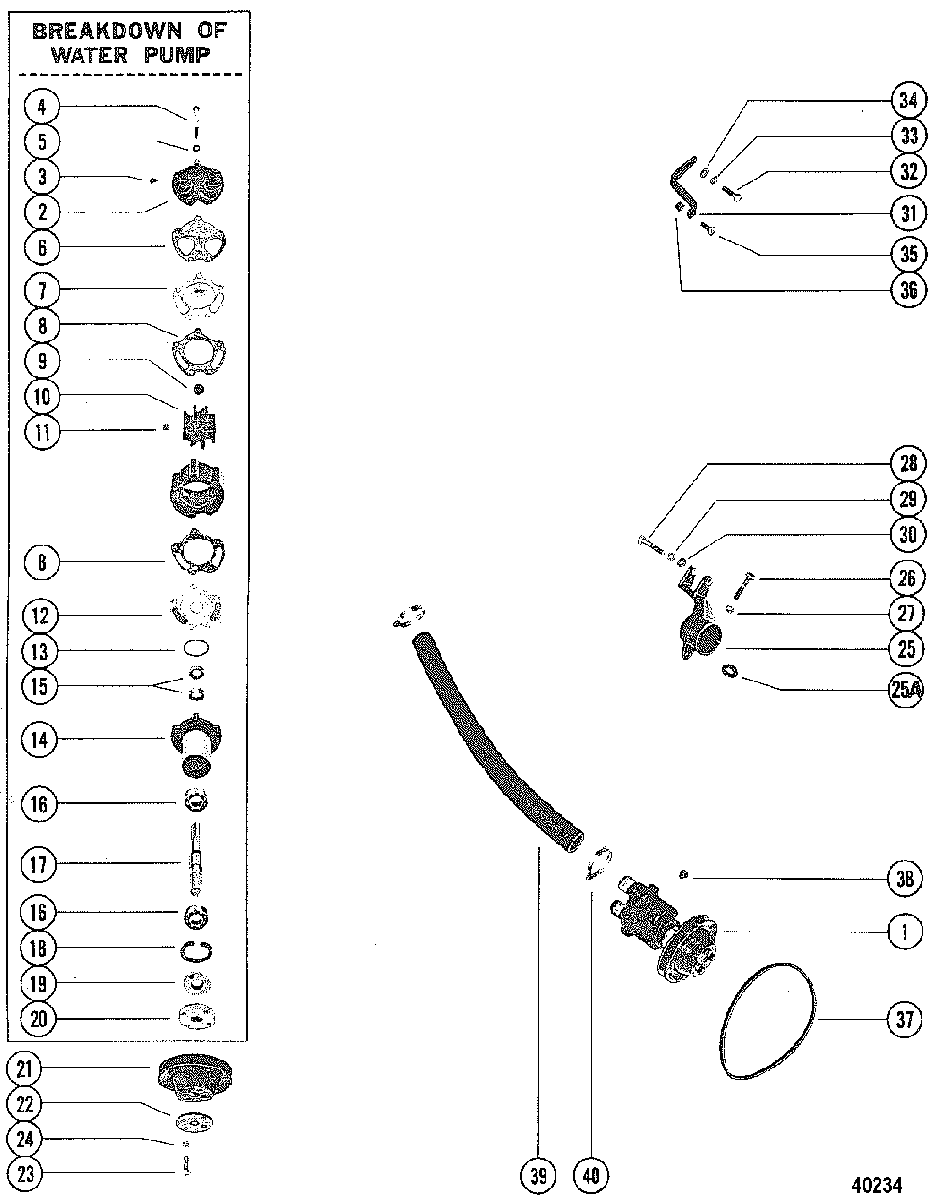

WATER PUMP ASSEMBLY(INBOARD) для Mercruiser - 228 (4 BBL.) GM 305 V-8 1979-1982 5170009 THRU 6218461

  • №
    Артикул
    Название
  • 1
    46-72774A32 PUMP ASSEMBLY, Sea Water - Complete
    PUMP ASSEMBLY, Sea Water - Complete
  • -
    46-72774A40 BODY, WATER PUMP
    BODY, WATER PUMP
  • 2
    87631A5 COVER, WATER PUMP
    COVER, WATER PUMP
  • 3
    10-28642 SCREW, (#2 x 0.25), WATER PUMP SLEEVE
    SCREW, (#2 x 0.25), WATER PUMP SLEEVE
  • 4
    10-63328 SCREW, (.312-18 x 3.00), COVER TO BODY
    SCREW, (.312-18 x 3.00), COVER TO BODY
  • 5
    12-20084 WASHER, (.328 x .562 x .062), COVER TO BODY SCREW
    WASHER, (.328 x .562 x .062), COVER TO BODY SCREW
  • 6
    27-8052151 GASKET, COVER TO OUTER WEAR PLATE
    GASKET, COVER TO OUTER WEAR PLATE
  • 7
    94916 WEAR PLATE
    WEAR PLATE
  • 8
    27-94914 GASKET, BODY TO WEAR PLATE
    GASKET, BODY TO WEAR PLATE
  • 9
    19-59504 PLUG, IMPELLER
    PLUG, IMPELLER
  • 10
    47-59362T1 IMPELLER ASSEMBLY
    IMPELLER ASSEMBLY
  • 11
    28-8M0032837 KEY, IMPELLER DRIVE
    KEY, IMPELLER DRIVE
  • 12
    94576 WEAR PLATE
    WEAR PLATE
  • 13
    25-37340 O-RING, PUMP HOUSING TO INNER WEAR PLATE
    O-RING, PUMP HOUSING TO INNER WEAR PLATE
  • 14
    46-94913A1 HOUSING ASSEMBLY, Water Pump
    HOUSING ASSEMBLY, Water Pump
  • 15
    26-90562 SEAL, Oil, WATER PUMP SHAFT
    SEAL, Oil, WATER PUMP SHAFT
  • 16
    30-72961 BEARING, Ball, WATER PUMP SHAFT
    BEARING, Ball, WATER PUMP SHAFT
  • 17
    59501A1 SHAFT, WATER PUMP
    SHAFT, WATER PUMP
  • 18
    53-23720 RING, Retaining, BALL BEARING RETAINING
    RING, Retaining, BALL BEARING RETAINING
  • 19
    26-72785 SEAL, WATER PUMP SAHFT
    SEAL, WATER PUMP SAHFT
  • 20
    47530 HUB, WATER PUMP PULLEY
    HUB, WATER PUMP PULLEY
  • 21
    73798A1 PULLEY, WATER PUMP
    PULLEY, WATER PUMP
  • 22
    58265 RING, Clamping, PUMP PULLEY
    RING, Clamping, PUMP PULLEY
  • 23
    10-47277 SCREW, (.312-24 x .750), PULLEY TO WATER PUMP
    SCREW, (.312-24 x .750), PULLEY TO WATER PUMP
  • 24
    13-39107 LOCKWASHER, (.312-24), WATER PUMP PULLEY SCREW
    LOCKWASHER, (.312-24), WATER PUMP PULLEY SCREW
  • 25
    47488A1 BRACKET, WATER PUMP
    BRACKET, WATER PUMP
  • 25A
    12-79643 WASHER, BRACE SCREW (FOR SLOT)
    WASHER, BRACE SCREW (FOR SLOT)
  • 26
    10-34354 SCREW, (.375-16 x 1.50), WATER PUMP BRACKET CLAMPING
    SCREW, (.375-16 x 1.50), WATER PUMP BRACKET CLAMPING
  • 27
    13-35048 LOCKWASHER, (.375), WATER PUMP BRACKET SCREW
    LOCKWASHER, (.375), WATER PUMP BRACKET SCREW
  • 28
    10-34353 SCREW, (.375-16 x 1.00), WATER PUMP BRACKET TO ENGINE
    SCREW, (.375-16 x 1.00), WATER PUMP BRACKET TO ENGINE
  • 29
    13-35048 LOCKWASHER, (.375), WATER PUMP BRACKET SCREW
    LOCKWASHER, (.375), WATER PUMP BRACKET SCREW
  • 30
    12-34714 WASHER, WATER PUMP BRACKET SCREW
    WASHER, WATER PUMP BRACKET SCREW
  • 31
    47544 BRACE, WATER PUMP ADJUSTING
    BRACE, WATER PUMP ADJUSTING
  • 32
    10-34353 SCREW, (.375-16 x 1.00), BRACE TO STEERING PUMP
    SCREW, (.375-16 x 1.00), BRACE TO STEERING PUMP
  • 33
    13-35048 LOCKWASHER, (.375), ADJUSTING BRACE SCREW
    LOCKWASHER, (.375), ADJUSTING BRACE SCREW
  • 34
    12-34714 WASHER, ADJUSTING BRACE SCREW
    WASHER, ADJUSTING BRACE SCREW
  • 35
    10-35786 SCREW, (.375-24 x 1.00), ADJUSTING BRACE TO BRACKET SCREW
    SCREW, (.375-24 x 1.00), ADJUSTING BRACE TO BRACKET SCREW
  • 36
    11-46335 NUT, ADJUSTING BRACE SCREW
    NUT, ADJUSTING BRACE SCREW
  • 37
    57-74271Q BELT, WATER PUMP
    BELT, WATER PUMP
  • 38
    22-328022 PLUG, Pipe (.125-27) (FOR WATER PUMP BODY)
    PLUG, Pipe (.125-27) (FOR WATER PUMP BODY)
  • 39
    32-86216 HOSE, MOLDED - WATER PUMP TO TRANSMISSION COOLER
    HOSE, MOLDED - WATER PUMP TO TRANSMISSION COOLER
  • 40
    54-815504220 CLAMP, HOSE ATTACHING
    CLAMP, HOSE ATTACHING
