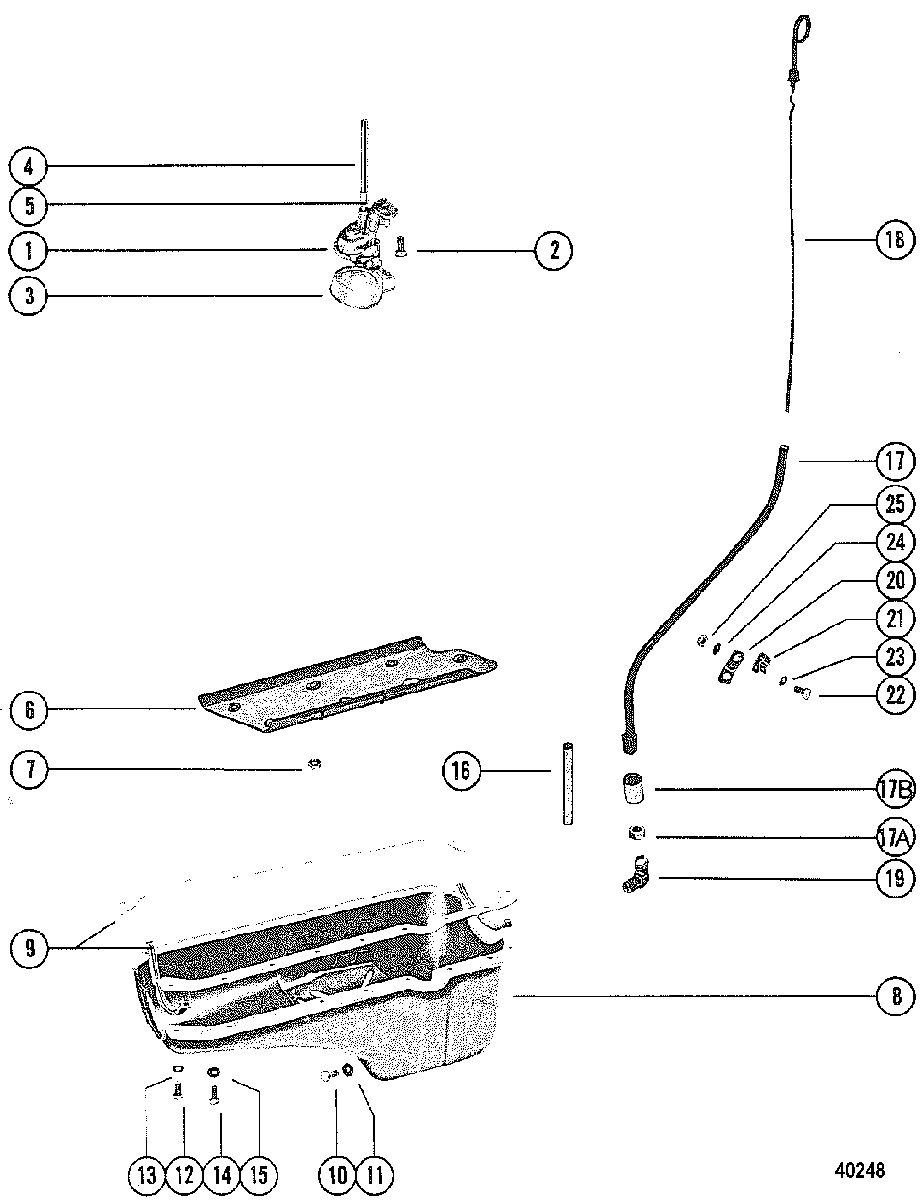

OIL PAN AND OIL PUMP для Mercruiser - 228 (4 BBL.) GM 305 V-8 1979-1982 5170009 THRU 6218461
-
№АртикулНазвание
-
117617 PUMP ASSEMBLY, OilPUMP ASSEMBLY, Oil
-
210-48333 BOLT, (2 In.), OIL PUMP TO CYLINDER BLOCKBOLT, (2 In.), OIL PUMP TO CYLINDER BLOCK
-
335354 SCREEN ASSEMBLY, OIL PUMPSCREEN ASSEMBLY, OIL PUMP
-
436184 SHAFT, OIL PUMP TO DISTRIBUTORSHAFT, OIL PUMP TO DISTRIBUTOR
-
523-36183 RETAINER, OIL PUMP SHAFTRETAINER, OIL PUMP SHAFT
-
652198 BAFFLE, OIL PAN - PORT MOUNTED DIPSTICKBAFFLE, OIL PAN - PORT MOUNTED DIPSTICK
-
6986021 BAFFLE, OIL PAN - STBD. MOUNTED DIPSTICKBAFFLE, OIL PAN - STBD. MOUNTED DIPSTICK
-
711-37500 NUT, (3/8-16), BAFFLE TO CYLINDER BLOCK STUDNUT, (3/8-16), BAFFLE TO CYLINDER BLOCK STUD
-
872643 PAN, Oil, MOUNTED DIPSTICK
STERNDRIVEPAN, Oil, MOUNTED DIPSTICK
STERNDRIVE -
893476 PAN, Oil, STARBOARD MOUNTED DIPSTICK
STERNDRIVEPAN, Oil, STARBOARD MOUNTED DIPSTICK
STERNDRIVE -
887758A1 PAN ASSEMBLY, Oil
INBOARDPAN ASSEMBLY, Oil
INBOARD -
927-85817A1 GASKET SET, OIL PAN - PORT MOUNTED DIPSTICKGASKET SET, OIL PAN - PORT MOUNTED DIPSTICK
-
927-90458A1 GASKET SET, OIL PAN - STARBOARD MOUNTED DIPSTICKGASKET SET, OIL PAN - STARBOARD MOUNTED DIPSTICK
-
1010-49956 SCREW, Drain, OIL PAN DRAIN
STERNDRIVESCREW, Drain, OIL PAN DRAIN
STERNDRIVE -
1022-32803 PLUG, PIPE - OIL PAN DRAIN
INBOARDPLUG, PIPE - OIL PAN DRAIN
INBOARD -
1127-8M0077608 GASKET, OIL PAN DRAIN SCREW
STERNDRIVEGASKET, OIL PAN DRAIN SCREW
STERNDRIVE -
1210-72644 SCREW, (5/16-18 x 7/8), OIL PAN TO CYL. BLOCK
STERNDRIVESCREW, (5/16-18 x 7/8), OIL PAN TO CYL. BLOCK
STERNDRIVE -
1210-55714 SCREW, (7/8 In.), OIL PAN TO BLOCK
INBOARDSCREW, (7/8 In.), OIL PAN TO BLOCK
INBOARD -
1313-39107 LOCKWASHER, (.312-24), OIL PAN SCREW
STERNDRIVELOCKWASHER, (.312-24), OIL PAN SCREW
STERNDRIVE -
1313-26992 LOCKWASHER, (.250) Stainless Steel, OIL PAN SCREW
INBOARDLOCKWASHER, (.250) Stainless Steel, OIL PAN SCREW
INBOARD -
1410-8M0040582 BOLT, (1/4-20 x 7/8), OIL PAN TO CYLINLDER BLOCK
STERNDRIVEBOLT, (1/4-20 x 7/8), OIL PAN TO CYLINLDER BLOCK
STERNDRIVE -
1410-55715 SCREW, (.250-20 x .880), OIL PAN TO BLOCK
INBOARDSCREW, (.250-20 x .880), OIL PAN TO BLOCK
INBOARD -
1513-26993 LOCKWASHER, (.312), OIL PAN SCREW
INBOARDLOCKWASHER, (.312), OIL PAN SCREW
INBOARD -
1672950 TUBE, OIL LEVEL (LOWER) STERNDRIVE
(PORT MOUNTED DIPSTICK) SN# 5229542 & BelowTUBE, OIL LEVEL (LOWER) STERNDRIVE
(PORT MOUNTED DIPSTICK) SN# 5229542 & Below -
1686085 TUBE, OIL LEVEL (LOWER) STERNDRIVE
(PORT MOUNTED DIPSTICK) SN# 5229543 THRU 5515813TUBE, OIL LEVEL (LOWER) STERNDRIVE
(PORT MOUNTED DIPSTICK) SN# 5229543 THRU 5515813 -
1732-72539 TUBE, OIL LEVEL GAUGE (UPPER) STERNDRIVE
(PORT MOUNTED DIPSTICK) SN# 5229542 & BelowTUBE, OIL LEVEL GAUGE (UPPER) STERNDRIVE
(PORT MOUNTED DIPSTICK) SN# 5229542 & Below -
1786083A4 TUBE, OIL LEVEL GAUGE (UPPER) STERNDRIVE
(PORT MOUNTED DIPSTICK) SN# 5229543 THRU 5515813TUBE, OIL LEVEL GAUGE (UPPER) STERNDRIVE
(PORT MOUNTED DIPSTICK) SN# 5229543 THRU 5515813 -
1792078A2 TUBE, OIL LEVEL GAUGE STERNDRIVE - STBD. MOUNTED DIPSTICKTUBE, OIL LEVEL GAUGE STERNDRIVE - STBD. MOUNTED DIPSTICK
-
1786890A2 TUBE, OIL LEVEL GAUGE
INBOARDTUBE, OIL LEVEL GAUGE
INBOARD -
17A11-47626 NUT, OIL LEVEL GAUGE TUBE
INBOARDNUT, OIL LEVEL GAUGE TUBE
INBOARD -
17B22-78039 COUPLING, OIL LEVEL GAUGE TUBE
INBOARDCOUPLING, OIL LEVEL GAUGE TUBE
INBOARD -
1872938 GAUGE, OIL LEVEL (DIPSTICK) STERN DRIVE
(PORT MOUNTED DIPSTICK) SN# 5229542 & BelowGAUGE, OIL LEVEL (DIPSTICK) STERN DRIVE
(PORT MOUNTED DIPSTICK) SN# 5229542 & Below -
1886082 GUAGE, OIL LEVEL (DIPSTICK) STERNDRIVE
(PORT MOUNTED DIPSTICK) SN# 5229543 THRU 5515813GUAGE, OIL LEVEL (DIPSTICK) STERNDRIVE
(PORT MOUNTED DIPSTICK) SN# 5229543 THRU 5515813 -
1886082 GUAGE, OIL LEVEL (DIPSTICK) STERNDRIVE
STARBOARD MOUNTED DIPSTICKGUAGE, OIL LEVEL (DIPSTICK) STERNDRIVE
STARBOARD MOUNTED DIPSTICK -
1886194220 GAUGE, OIL LEVEL (DIPSTICK)
INBOARDGAUGE, OIL LEVEL (DIPSTICK)
INBOARD -
1922-47625 ELBOW, OIL LEVEL GAUGE TO OIL PAN
INBOARDELBOW, OIL LEVEL GAUGE TO OIL PAN
INBOARD -
2087182 BRACKET, OIL LEVEL GAUGE
INBOARDBRACKET, OIL LEVEL GAUGE
INBOARD -
2154-92084 CLIP, OIL LEVEL TUBE
STERN DRIVE - STBD. MOUNTED DIPSTICKCLIP, OIL LEVEL TUBE
STERN DRIVE - STBD. MOUNTED DIPSTICK -
2154-475451 CLIP, OIL LEVEL TUBE
INBOARDCLIP, OIL LEVEL TUBE
INBOARD -
2210-33524 SCREW, (.312-24 x .620), CLIP TO BRACKET
INBOARDSCREW, (.312-24 x .620), CLIP TO BRACKET
INBOARD -
2313-39107 LOCKWASHER, (.312-24), CLIP SCREW
INBOARDLOCKWASHER, (.312-24), CLIP SCREW
INBOARD -
2412-20553 WASHER, (.406 x .734 x .063), OIL LEVEL TUBE BRACKET
INBOARDWASHER, (.406 x .734 x .063), OIL LEVEL TUBE BRACKET
INBOARD -
2511-22053 NUT, (.312-24), CLIP SCREW
INBOARDNUT, (.312-24), CLIP SCREW
INBOARD
