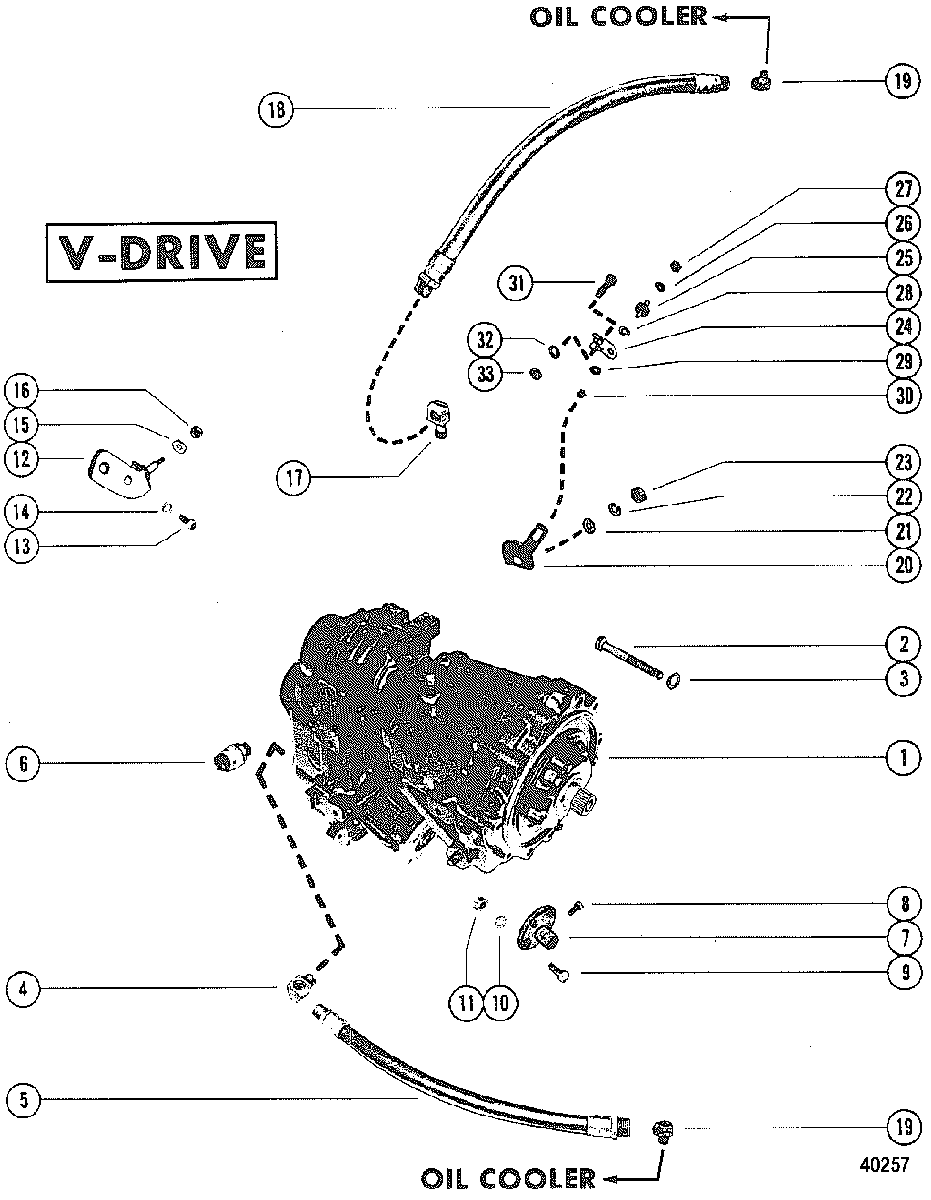

TRANSMISSION AND RELATED PARTS(V-DRIVE) для Mercruiser - 228 (4 BBL.) GM 305 V-8 1979-1982 5170009 THRU 6218461

  • №
    Артикул
    Название
  • 1
    60953A13 TRANSMISSION, V-DRIVE (DIRECT DRIVE)
    TRANSMISSION, V-DRIVE (DIRECT DRIVE)
  • 1
    60588A11 TRANSMISSION, V-DRIVE (1.51:1 REDUCTION)
    TRANSMISSION, V-DRIVE (1.51:1 REDUCTION)
  • 1
    60954A11 TRANSMISSION, V-DRIVE (1.99:1 REDUCTION)
    TRANSMISSION, V-DRIVE (1.99:1 REDUCTION)
  • 1
    60955A10 TRANSMISSION, V-DRIVE (2.49:1 REDUCTION)
    TRANSMISSION, V-DRIVE (2.49:1 REDUCTION)
  • 1
    60956A11 TRANSMISSION, V-DRIVE (3.14:1 REDUCTION)
    TRANSMISSION, V-DRIVE (3.14:1 REDUCTION)
  • 2
    10-47724 SCREW, (.437-14 x 3.00), TRANSMISSION TO ENGINE
    SCREW, (.437-14 x 3.00), TRANSMISSION TO ENGINE
  • 3
    13-32993 LOCKWASHER, (.437), TRANSMISSION SCREW
    LOCKWASHER, (.437), TRANSMISSION SCREW
  • 4
    22-63824 ELBOW, HOSE TO TRANSMISSION (90 DEGREE)
    ELBOW, HOSE TO TRANSMISSION (90 DEGREE)
  • 5
    32-475169 HOSE ASSEMBLY, (37.00 Inches), OIL COOLER TO TRANSMISSION
    HOSE ASSEMBLY, (37.00 Inches), OIL COOLER TO TRANSMISSION
  • 6
    47613 SWITCH, NEUTRAL SAFETY
    SWITCH, NEUTRAL SAFETY
  • 7
    79476A1 FLANGE ASSEMBLY (1")
    FLANGE ASSEMBLY (1")
  • 7
    79476A2 FLANGE ASSEMBLY (1 1/8")
    FLANGE ASSEMBLY (1 1/8")
  • 7
    79476A3 FLANGE ASSEMBLY (1 1/4")
    FLANGE ASSEMBLY (1 1/4")
  • 7
    79476A4 FLANGE ASSEMBLY (1 3/8")
    FLANGE ASSEMBLY (1 3/8")
  • 7
    79476A5 FLANGE ASSEMBLY (1 1/2")
    FLANGE ASSEMBLY (1 1/2")
  • 7
    79476A6 FLANGE ASSEMBLY (1 3/4")
    FLANGE ASSEMBLY (1 3/4")
  • 7
    79476A7 FLANGE ASSEMBLY (2")
    FLANGE ASSEMBLY (2")
  • 8
    10-60171 SCREW, (.375-16 x 1.250), FLANGE TO PROPELLER SHAFT
    (See Note)
    SCREW, (.375-16 x 1.250), FLANGE TO PROPELLER SHAFT
    (See Note)
  • 8
    10-60171 SCREW, (1 In.), FLANGE TO PROPELLER SHAFT
    (See Note)
    SCREW, (1 In.), FLANGE TO PROPELLER SHAFT
    (See Note)
  • 8
    10-60169 SCREW, (.375-16 x .750), FLANGE TO PROPELLER SHAFT
    (See Note)
    SCREW, (.375-16 x .750), FLANGE TO PROPELLER SHAFT
    (See Note)
  • 9
    10-60106 SCREW, (1.25 In), TRANSMISSION FLANGE TO PROPELLER FLANGE
    SCREW, (1.25 In), TRANSMISSION FLANGE TO PROPELLER FLANGE
  • 10
    13-32993 LOCKWASHER, (.437), FLANGE SCREW
    LOCKWASHER, (.437), FLANGE SCREW
  • 11
    11-22024 NUT, (.437-14), FLANGE SCREW
    NUT, (.437-14), FLANGE SCREW
  • 12
    63815A1 BRACKET, SHIFT CABLE
    BRACKET, SHIFT CABLE
  • 13
    10-65746 SCREW, (.75 In.), BRACKET TO FLYWHEEL HOUSING
    SCREW, (.75 In.), BRACKET TO FLYWHEEL HOUSING
  • 14
    13-26992 LOCKWASHER, (.250) Stainless Steel, BRACKET TO TRANSMISSION SCREW
    LOCKWASHER, (.250) Stainless Steel, BRACKET TO TRANSMISSION SCREW
  • 15
    12-56681 WASHER, SHIFT CABLE TO BRACKET STUD
    WASHER, SHIFT CABLE TO BRACKET STUD
  • 16
    11-46438 NUT, (#10-32), SHIFT CABLE TO BRACKET STUD
    NUT, (#10-32), SHIFT CABLE TO BRACKET STUD
  • 17
    22-47629 ELBOW, 90 Degree, HOSE TO TRANSMISSION
    ELBOW, 90 Degree, HOSE TO TRANSMISSION
  • 18
    32-475169 HOSE, TRANSMISSION TO OIL COOLER (33")
    HOSE, TRANSMISSION TO OIL COOLER (33")
  • 19
    22-47629 ELBOW, 90 Degree, HOSE TO OIL COOLER
    ELBOW, 90 Degree, HOSE TO OIL COOLER
  • 20
    48515 LEVER, SHIFT - TRANSMISSION
    LEVER, SHIFT - TRANSMISSION
  • 21
    12-20722 WASHER, (.328 x .625 x .060), SHIFT LEVER TO TRANSMISSION
    WASHER, (.328 x .625 x .060), SHIFT LEVER TO TRANSMISSION
  • 22
    13-26993 LOCKWASHER, (.312), SHIFT LEVER TO TRANSMISSION
    LOCKWASHER, (.312), SHIFT LEVER TO TRANSMISSION
  • 23
    11-22053 NUT, (5/16-24), SHIFT LEVER TO TRANSMISSION
    NUT, (5/16-24), SHIFT LEVER TO TRANSMISSION
  • 24
    48652 ADAPTOR, SHIFT CABLE TO SHIFT LEVER
    ADAPTOR, SHIFT CABLE TO SHIFT LEVER
  • 25
    16-48680 STUD, (1.25), SHIFT CABLE ADAPTOR TO SHIFT LEVER
    STUD, (1.25), SHIFT CABLE ADAPTOR TO SHIFT LEVER
  • 26
    12-20533 WASHER, SHIFT CABLE ADAPTOR STUD
    WASHER, SHIFT CABLE ADAPTOR STUD
  • 27
    11-20184 NUT, (1/4-28), SHIFT CABLE ADAPTOR STUD (1/4-28)
    NUT, (1/4-28), SHIFT CABLE ADAPTOR STUD (1/4-28)
  • 28
    13-29402 WAVE WASHER, SHIFT CABLE ADAPTOR STUD
    WAVE WASHER, SHIFT CABLE ADAPTOR STUD
  • 29
    12-56681 WASHER, SHIFT CABLE ADAPTOR STUD
    WASHER, SHIFT CABLE ADAPTOR STUD
  • 30
    11-46438 NUT, (#10-32), SHIFT CABLE ADAPTOR STUD
    NUT, (#10-32), SHIFT CABLE ADAPTOR STUD
  • 31
    10-20639 SCREW, (.312-24 x 1.12), SHIFT CABLE TO ADAPTOR
    SCREW, (.312-24 x 1.12), SHIFT CABLE TO ADAPTOR
  • 32
    12-22753 WASHER, SHIFT CABLE SCREW
    WASHER, SHIFT CABLE SCREW
  • 33
    11-29250 NUT, (5/16-24), SHIFT CABLE SCREW (5/16-24)
    NUT, (5/16-24), SHIFT CABLE SCREW (5/16-24)
