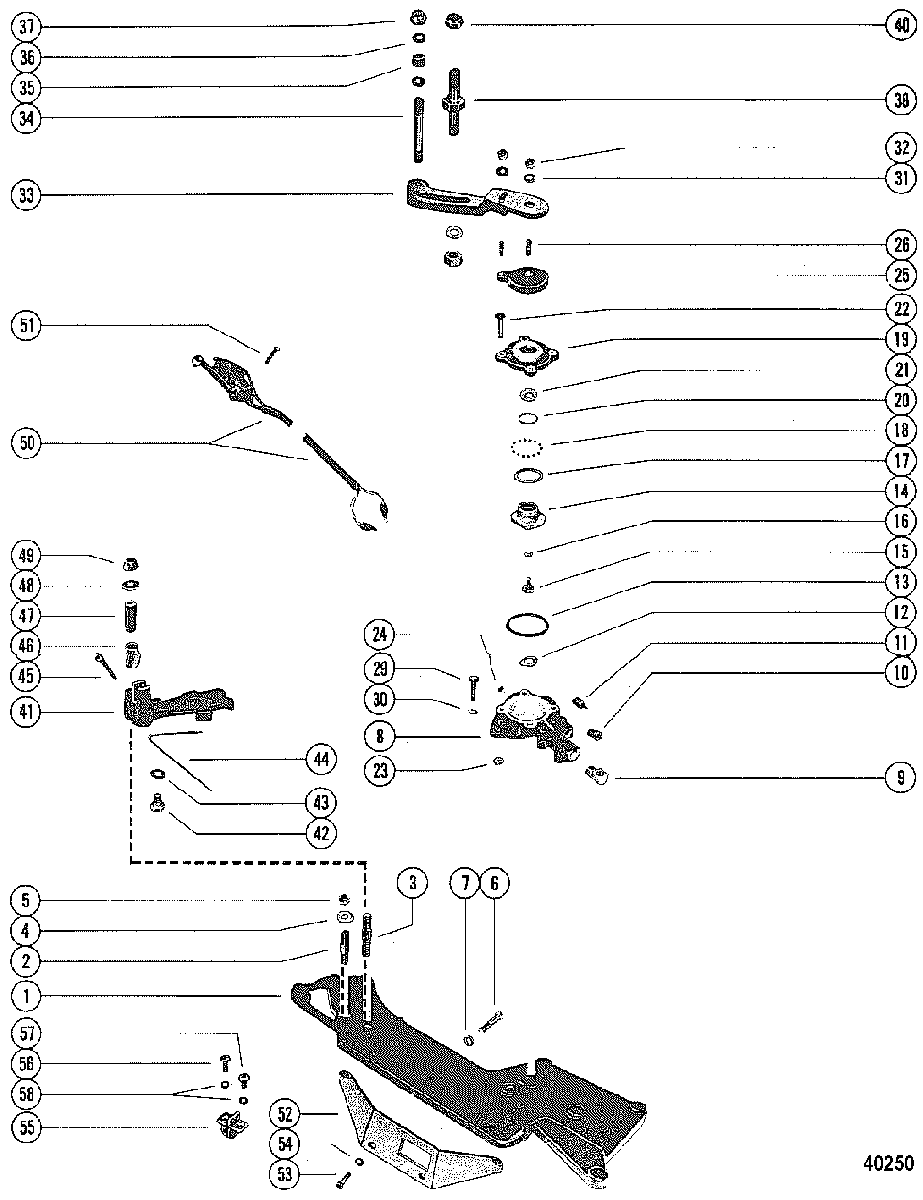

SHIFT BRACKET AND REVERSE LOCK VALVE для Mercruiser - 228 (4 BBL.) GM 305 V-8 1979-1982 5170009 THRU 6218461

  • №
    Артикул
    Название
  • 1
    66057A3 BRACKET ASSEMBLY, Shift
    BRACKET ASSEMBLY, Shift
  • 2
    16-79661 STUD, (1.75 In.), SHIFT CABLE TO BRACKET
    STUD, (1.75 In.), SHIFT CABLE TO BRACKET
  • 3
    16-73563 STUD, (.312-18/.312-24 x 2.310), SWITCH ACTUATING ARM TO SHIFT BRACKET
    STUD, (.312-18/.312-24 x 2.310), SWITCH ACTUATING ARM TO SHIFT BRACKET
  • 4
    12-39143 WASHER, (.253 x .625 x .0937), SHIFT CABLE TO LEVER STUD
    WASHER, (.253 x .625 x .0937), SHIFT CABLE TO LEVER STUD
  • 5
    11-8267089 NUT, (.250-28), SHIFT BRACKET STUD
    NUT, (.250-28), SHIFT BRACKET STUD
  • 6
    10-805159 SCREW, (.437-20 x 1.500), SHIFT BRACKET TO FLYWHEEL HOUSING
    SCREW, (.437-20 x 1.500), SHIFT BRACKET TO FLYWHEEL HOUSING
  • 7
    12-22248 WASHER, (.453 x .875 x .060), SHIFT BRACKET ATTACHING SCREW
    WASHER, (.453 x .875 x .060), SHIFT BRACKET ATTACHING SCREW
  • 8
    76812T4 VALVE ASSEMBLY, Reverse Lock
    VALVE ASSEMBLY, Reverse Lock
  • 9
    22-45794 ELBOW, HYDRAULIC TRIM HOSE TO REVERSE LOCK VALVE
    ELBOW, HYDRAULIC TRIM HOSE TO REVERSE LOCK VALVE
  • 10
    22-48167 CONNECTOR, ELBOW
    CONNECTOR, ELBOW
  • 11
    45709 FOLLOWER, CAM
    FOLLOWER, CAM
  • 12
    13-25906 WASHER, WAVE - REVERSE LOCK VALVE
    WASHER, WAVE - REVERSE LOCK VALVE
  • 13
    25-457101 O-RING, (1.424 x .103), REVERSE LOCK VALVE
    O-RING, (1.424 x .103), REVERSE LOCK VALVE
  • 14
    45526 CAM, REVERSE LOCK VALVE
    CAM, REVERSE LOCK VALVE
  • 15
    10-46736 SCREW, (0.5 In.), CAM TO CAM LEVER
    SCREW, (0.5 In.), CAM TO CAM LEVER
  • 16
    13-26996 LOCKWASHER, (#10) Stainless Steel, CAM SCREW
    LOCKWASHER, (#10) Stainless Steel, CAM SCREW
  • 17
    12-45713 WASHER, RETAINING - BALL TO VALVE COVER
    WASHER, RETAINING - BALL TO VALVE COVER
  • 18
    30-45712 BALL, VALVE COVER
    BALL, VALVE COVER
  • 19
    45528A2 COVER, REVERSE LOCK VALVE
    COVER, REVERSE LOCK VALVE
  • 20
    25-45711 O-RING, (.612 x .103), VALVE COVER
    O-RING, (.612 x .103), VALVE COVER
  • 21
    12-59570 WASHER, VALVE COVER
    WASHER, VALVE COVER
  • 22
    10-45716 SCREW, (#10-32 x .9375), COVER TO REVERSE LOCK VALVE
    SCREW, (#10-32 x .9375), COVER TO REVERSE LOCK VALVE
  • 23
    11-20110 NUT, (#10-32), COVER SCREW
    NUT, (#10-32), COVER SCREW
  • 24
    22-390721 PLUG, PIPE - REVERSE LOCK VALVE
    PLUG, PIPE - REVERSE LOCK VALVE
  • 25
    46732A1 LEVER ASSEMBLY, CAM
    LEVER ASSEMBLY, CAM
  • 26
    16-45715 STUD, (10-32 x .718), SHIFT CONTROL LEVER TO CAM LEVER
    STUD, (10-32 x .718), SHIFT CONTROL LEVER TO CAM LEVER
  • 29
    10-25299 SCREW, (.312-18 x .75), REVERSE LOCK VALVE TO SHIFT SUPPORT BRACKET
    SCREW, (.312-18 x .75), REVERSE LOCK VALVE TO SHIFT SUPPORT BRACKET
  • 30
    13-21804 LOCKWASHER, REVERSE LOCK VALVE SCREW
    LOCKWASHER, REVERSE LOCK VALVE SCREW
  • 31
    12-21273 WASHER, CAM LEVER STUD
    WASHER, CAM LEVER STUD
  • 32
    11-20110 NUT, (#10-32), SHIFT CONTROL LEVER TO CAM LEVER STUD
    NUT, (#10-32), SHIFT CONTROL LEVER TO CAM LEVER STUD
  • 33
    66397A1 LEVER ASSEMBLY, SHIFT CONTROL - CAM LEVER
    LEVER ASSEMBLY, SHIFT CONTROL - CAM LEVER
  • 34
    16-63081 STUD, SHIFT CABLE TO LEVER
    STUD, SHIFT CABLE TO LEVER
  • 35
    23-31866 SPACER, (.256 x .313 x .625), SHIFT LEVER STUD
    SPACER, (.256 x .313 x .625), SHIFT LEVER STUD
  • 36
    12-39143 WASHER, (.253 x .625 x .0937), SHIFT LEVER STUD
    WASHER, (.253 x .625 x .0937), SHIFT LEVER STUD
  • 37
    11-8267089 NUT, (.250-28), SHIFT CABLE TO LEVER STUD
    NUT, (.250-28), SHIFT CABLE TO LEVER STUD
  • 38
    16-63335 STUD, (.250-28 x 2.00), SHIFT CABLE TO SHIFT LEVER
    STUD, (.250-28 x 2.00), SHIFT CABLE TO SHIFT LEVER
  • 40
    11-63341 TEE NUT, SHIFT CABLE STUD
    TEE NUT, SHIFT CABLE STUD
  • 41
    13051A4 ARM ASSEMBLY, SWITCH ACTUATING
    ARM ASSEMBLY, SWITCH ACTUATING
  • 42
    10-98257 SCREW, (1/2 In.), TENSION SPRING TO ARM
    SCREW, (1/2 In.), TENSION SPRING TO ARM
  • 43
    12-26825 WASHER, (.328 x .750 x .06), TENSION SPRING SCREW
    WASHER, (.328 x .750 x .06), TENSION SPRING SCREW
  • 44
    24-862850 SPRING, TENSION - SWITCH ACTUATING ARM
    SPRING, TENSION - SWITCH ACTUATING ARM
  • 45
    18-328571 COTTER PIN, SHIFT ACTUATING CABLE TO ACTUATING ARM
    COTTER PIN, SHIFT ACTUATING CABLE TO ACTUATING ARM
  • 46
    23-45600 SLEEVE, SWITCH ACTUATING ARM STUD
    SLEEVE, SWITCH ACTUATING ARM STUD
  • 47
    23-37981 SPACER, SWITCH ACTUATING ARM TO TRANSOM PLATE
    SPACER, SWITCH ACTUATING ARM TO TRANSOM PLATE
  • 48
    12-26825 WASHER, (.328 x .750 x .06), SWITCH ACTUATING ARM STUD
    WASHER, (.328 x .750 x .06), SWITCH ACTUATING ARM STUD
  • 49
    11-82670911 NUT, (.312-24) Stainless Steel, SWITCH ACTUATING ARM STUD
    NUT, (.312-24) Stainless Steel, SWITCH ACTUATING ARM STUD
  • 50
    39670A28 SWITCH ASSEMBLY, CUT OUT - TRANSOM PLATE
    SWITCH ASSEMBLY, CUT OUT - TRANSOM PLATE
  • 51
    10-30902 SCREW, (#6-32 x .750), SWITCH ASSEMBLY TO TRANSOM PLATE
    SCREW, (#6-32 x .750), SWITCH ASSEMBLY TO TRANSOM PLATE
  • 52
    66059A5 BRACKET, MOUNTING - SHIFT
    BRACKET, MOUNTING - SHIFT
  • 53
    10-35386 SCREW, (.312-18 x 1.00), SHIFT BRACKET ATTACHING
    SCREW, (.312-18 x 1.00), SHIFT BRACKET ATTACHING
  • 54
    13-39107 LOCKWASHER, (.312-24), SHIFT BRACKET ATTACHING SCREW
    LOCKWASHER, (.312-24), SHIFT BRACKET ATTACHING SCREW
  • 55
    86-66986 TERMINAL BLOCK, SHIFT BRACKET
    TERMINAL BLOCK, SHIFT BRACKET
  • 56
    10-24637 SCREW, (#10-32 x .875), TERMINAL BLOCK
    SCREW, (#10-32 x .875), TERMINAL BLOCK
  • 57
    10-45218 SCREW, (#10-32 x .380), TERMINAL BLOCK
    SCREW, (#10-32 x .380), TERMINAL BLOCK
  • 58
    13-26996 LOCKWASHER, (#10) Stainless Steel, TERMINAL BLOCK SCREW
    LOCKWASHER, (#10) Stainless Steel, TERMINAL BLOCK SCREW
