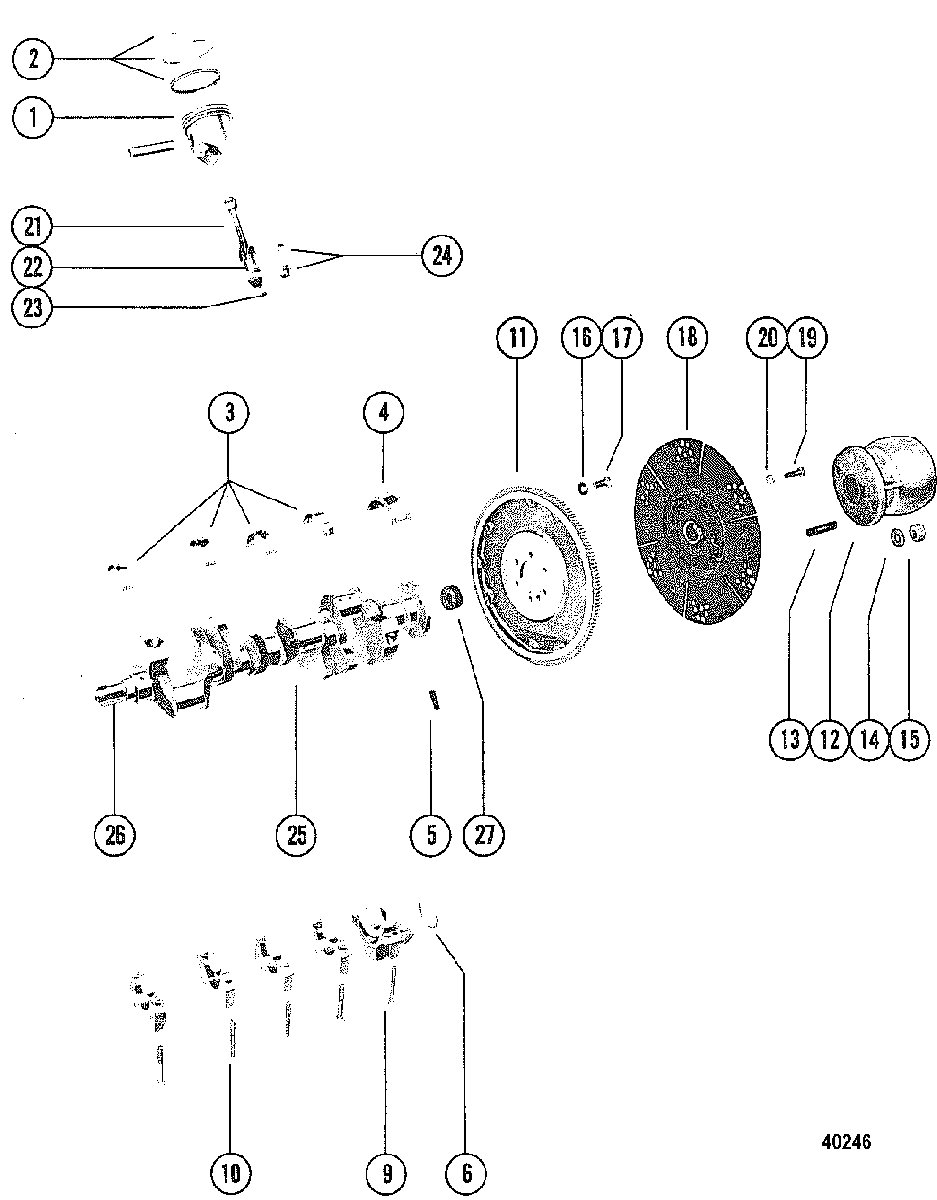

CRANKSHAFT AND PISTONS для Mercruiser - 228 (4 BBL.) GM 305 V-8 1979-1982 5170009 THRU 6218461

  • №
    Артикул
    Название
  • 1
    735-6538 PISTON ASSEMBLY (.001 O.S.)
    PISTON ASSEMBLY (.001 O.S.)
  • 1
    735-6616 PISTON ASSEMBLY (.010 O.S.)
    PISTON ASSEMBLY (.010 O.S.)
  • 1
    735-879194030 PISTON ASSEMBLY (.030 O.S.)
    PISTON ASSEMBLY (.030 O.S.)
  • 2
    39-75609 RING, PISTON - 8 SETS (STANDARD)
    RING, PISTON - 8 SETS (STANDARD)
  • 2
    39-75981 RING, PISTON - 8 SETS (.030 O.S.)
    RING, PISTON - 8 SETS (.030 O.S.)
  • 3
    23-818465 BEARING, CRANKSHAFT (STANDARD)
    BEARING, CRANKSHAFT (STANDARD)
  • 3
    23-818466 BEARING, CRANKSHAFT MAIN (.001 U.S.)
    BEARING, CRANKSHAFT MAIN (.001 U.S.)
  • 3
    23-818467 BEARING, CRANKSHAFT MAIN (.010 U.S.)
    BEARING, CRANKSHAFT MAIN (.010 U.S.)
  • 3
    23-818468 BEARING, CRANKSHAFT MAIN (.020 U.S.)
    BEARING, CRANKSHAFT MAIN (.020 U.S.)
  • 4
    23-818465 BEARING, CRANKSHAFT MAIN - REAR (STANDARD)
    BEARING, CRANKSHAFT MAIN - REAR (STANDARD)
  • 4
    23-818466 BEARING, CRANKSHAFT MAIN - REAR (.001 U.S.)
    BEARING, CRANKSHAFT MAIN - REAR (.001 U.S.)
  • 4
    23-818467 BEARING, CRANKSHAFT MAIN - REAR (.010 U.S.)
    BEARING, CRANKSHAFT MAIN - REAR (.010 U.S.)
  • 4
    23-818468 BEARING, CRANKSHAFT MAIN - REAR (.020 U.S.)
    BEARING, CRANKSHAFT MAIN - REAR (.020 U.S.)
  • 5
    17-24813 PIN, (1/4 In.), DOWEL -REAR CRANKSHAFT BEARING CAP
    PIN, (1/4 In.), DOWEL -REAR CRANKSHAFT BEARING CAP
  • 6
    26-814622 SEAL, Oil, REAR CRANKSHAFT BEARING CAP
    L.H. ROTATION
    SEAL, Oil, REAR CRANKSHAFT BEARING CAP
    L.H. ROTATION
  • 6
    26-35313 SEAL, Oil, REAR CRANKSHAFT BEARING CAP
    R.H. ROTATION
    SEAL, Oil, REAR CRANKSHAFT BEARING CAP
    R.H. ROTATION
  • 9
    10-54788 BOLT, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK (2 31/32")
    BOLT, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK (2 31/32")
  • 10
    16-54790 STUD, OIL PAN BAFFLE ATTACHING
    STUD, OIL PAN BAFFLE ATTACHING
  • --
    17-24813 PIN, (1/4 In.), DOWEL - CRANKCASE FRONT END COVER AND OIL PUMP
    PIN, (1/4 In.), DOWEL - CRANKCASE FRONT END COVER AND OIL PUMP
  • 11
    222-6355 FLYWHEEL ASSEMBLY (L.H. ROTATION)
    FLYWHEEL ASSEMBLY (L.H. ROTATION)
  • 11
    230-4614 FLYWHEEL ASSEMBLY (R.H. ROTATION)
    FLYWHEEL ASSEMBLY (R.H. ROTATION)
  • 12
    76850A2 COUPLING ASSEMBLY
    STERNDRIVE
    COUPLING ASSEMBLY
    STERNDRIVE
  • 13
    16-98532A1 STUD, COUPLER TO FLYWHEEL
    STERNDRIVE
    STUD, COUPLER TO FLYWHEEL
    STERNDRIVE
  • 14
    12-34567 WASHER, COUPLER TO FLYWHEEL STUD
    STERNDRIVE
    WASHER, COUPLER TO FLYWHEEL STUD
    STERNDRIVE
  • 15
    11-8M2008293 NUT, (.437-20), COUPLER STUDS TO FLYWHEEL
    STERNDRIVE
    NUT, (.437-20), COUPLER STUDS TO FLYWHEEL
    STERNDRIVE
  • 16
    13-39131 LOCKWASHER, (.437), FLYWHEEL SCREW
    LOCKWASHER, (.437), FLYWHEEL SCREW
  • 17
    10-845757 SCREW, (.437-20 x 1.00), FLYWHEEL TO CRANKSHAFT
    SCREW, (.437-20 x 1.00), FLYWHEEL TO CRANKSHAFT
  • 18
    98147A1 DRIVEPLATE ASSEMBLY, FLYWHEEL
    STERNDRIVE
    DRIVEPLATE ASSEMBLY, FLYWHEEL
    STERNDRIVE
  • 18
    47608A1 DRIVE PLATE, FLYWHEEL
    INBOARD
    DRIVE PLATE, FLYWHEEL
    INBOARD
  • 19
    10-35091 SCREW, (.375-16 x 1.00), DRIVE PLATE TO FLYWHEEL
    SCREW, (.375-16 x 1.00), DRIVE PLATE TO FLYWHEEL
  • 20
    13-35048 LOCKWASHER, (.375), DRIVE PLATE SCREW
    LOCKWASHER, (.375), DRIVE PLATE SCREW
  • 21
    614-8164T CONNECTING ROD
    CONNECTING ROD
  • 22
    10-85802 SCREW, (.375-24 x Special), CONNECTING ROD CAP
    SCREW, (.375-24 x Special), CONNECTING ROD CAP
  • 23
    11-37493 NUT, (.375-24), CONNECTING ROD CAP BOLT
    NUT, (.375-24), CONNECTING ROD CAP BOLT
  • 24
    23-85701 BEARING (PAIR), CONNECTING ROD (STANDARD)
    BEARING (PAIR), CONNECTING ROD (STANDARD)
  • 24
    23-85702 BEARING (PAIR), CONNECTING ROD (.001 U.S.)
    BEARING (PAIR), CONNECTING ROD (.001 U.S.)
  • 24
    23-85703 BEARING (PAIR), CONNECTING ROD (.002 U.S.)
    BEARING (PAIR), CONNECTING ROD (.002 U.S.)
  • 24
    23-85704 BEARING (PAIR), CONNECTING ROD (.010 U.S.)
    BEARING (PAIR), CONNECTING ROD (.010 U.S.)
  • 24
    23-85705 BEARING (PAIR), CONNECTING ROD (.020 U.S.)
    BEARING (PAIR), CONNECTING ROD (.020 U.S.)
  • 25
    429-6537 CRANKSHAFT
    CRANKSHAFT
  • 26
    28-34466 KEY, CRANKSHAFT PULLEY AND BALANCER
    KEY, CRANKSHAFT PULLEY AND BALANCER
  • 27
    23-71647 BUSHING, PILOT - CRANKSHAFT
    STERNDRIVE
    BUSHING, PILOT - CRANKSHAFT
    STERNDRIVE
