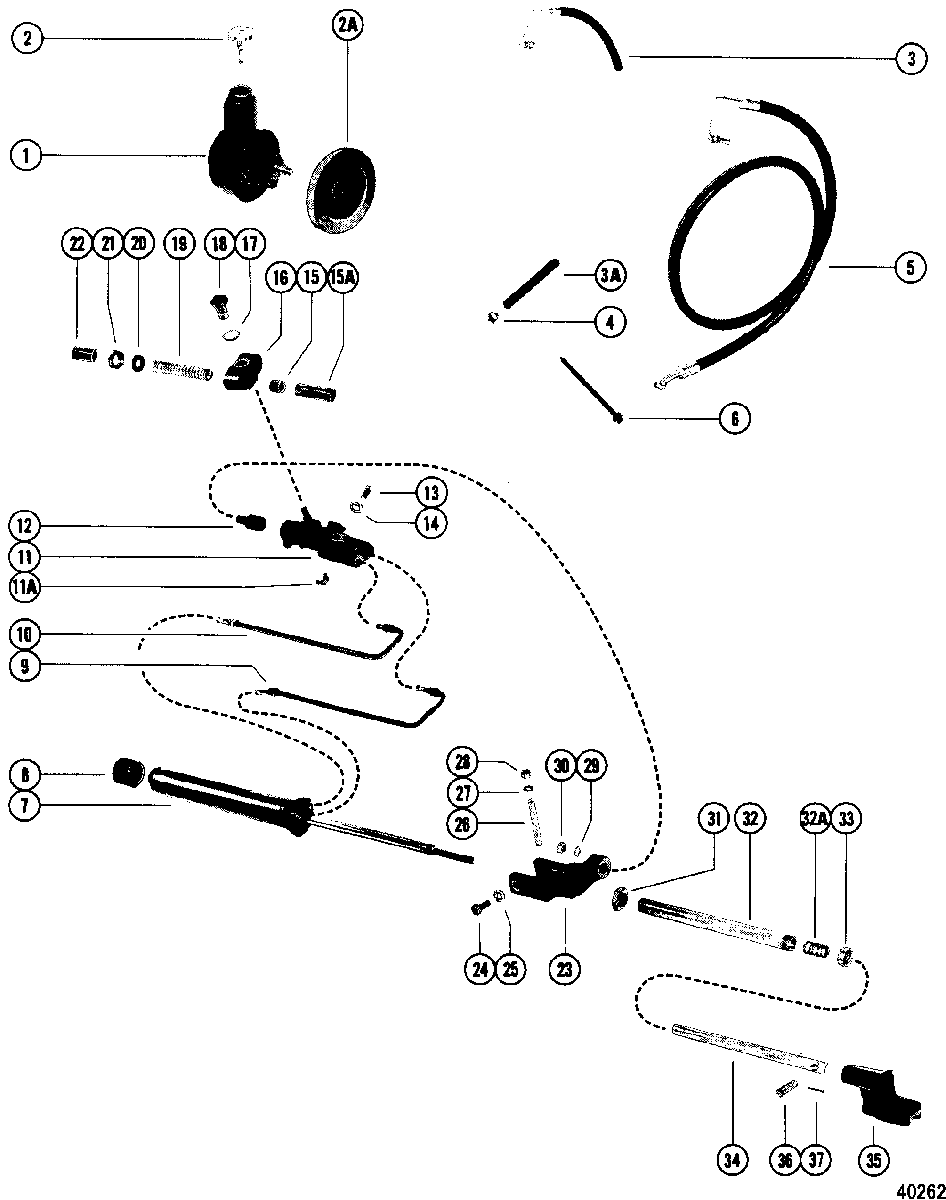

POWER STEERING COMPONENTS(WITH HOSES) для Mercruiser - 228 (4 BBL.) GM 305 V-8 1979-1982 5170009 THRU 6218461

  • №
    Артикул
    Название
  • 1
    90507A5 PUMP ASSEMBLY, Power-Assisted Steering
    NON METRIC
    PUMP ASSEMBLY, Power-Assisted Steering
    NON METRIC
  • 1
    90507A12 PUMP ASSEMBLY, Power-Assisted Steering
    METRIC
    PUMP ASSEMBLY, Power-Assisted Steering
    METRIC
  • 2
    19-39924 CAP, FILLER- HYDRAULIC PUMP
    CAP, FILLER- HYDRAULIC PUMP
  • 2A
    73873A1 PULLEY, HYDRAULIC PUMP
    PULLEY, HYDRAULIC PUMP
  • 3
    32-9884339 HOSE, RETURN - VALVE TO OIL COOLER (32")
    HOSE, RETURN - VALVE TO OIL COOLER (32")
  • 3A
    65231 HOSE, RETURN- OIL COOLER TO HYDRAULIC PUMP (40")
    HOSE, RETURN- OIL COOLER TO HYDRAULIC PUMP (40")
  • 4
    54-815504206 CLAMP, RETURN HOSE TO HYDRAULIC PUMP
    CLAMP, RETURN HOSE TO HYDRAULIC PUMP
  • 5
    32-55116 HOSE, (72 Inches), PRESSURE- POWER STEERING (60")
    NON METRIC
    HOSE, (72 Inches), PRESSURE- POWER STEERING (60")
    NON METRIC
  • 5
    32-90494 HOSE, PRESSURE- POWER STEERING (60")
    METRIC
    HOSE, PRESSURE- POWER STEERING (60")
    METRIC
  • 6
    61990 TIE STRAP, (14.00 Inches), HYDRAULIC HOSES
    TIE STRAP, (14.00 Inches), HYDRAULIC HOSES
  • 7
    57969A12 CYLINDER, BOOSTER (B-25-58224A1 SEAL REPAIR KIT)
    CYLINDER, BOOSTER (B-25-58224A1 SEAL REPAIR KIT)
  • 8
    26059 CAP, RUBBER- BOOSTER CYLINDER
    CAP, RUBBER- BOOSTER CYLINDER
  • 9
    32-57633 TUBE, EXTENDING- POWER STEERING
    TUBE, EXTENDING- POWER STEERING
  • 10
    32-57634 TUBE, RETRACTING- POWER STEERING
    TUBE, RETRACTING- POWER STEERING
  • 11
    816458A1 VALVE ASSEMBLY, POWER STEERING 9B-25-58226A1 SEAL REPAIR KIT)
    VALVE ASSEMBLY, POWER STEERING 9B-25-58226A1 SEAL REPAIR KIT)
  • 11A
    22-67305 FITTING, Grease, POWER STEERING VALVE
    FITTING, Grease, POWER STEERING VALVE
  • 12
    16-55109T STUD, ADAPTER - POWER STEERING VALVE
    STUD, ADAPTER - POWER STEERING VALVE
  • 13
    10-37612 SCREW, (.375-16 x 1.250), CLAMPING
    SCREW, (.375-16 x 1.250), CLAMPING
  • 14
    13-35048 LOCKWASHER, (3/8), CLAMPING SCREW
    LOCKWASHER, (3/8), CLAMPING SCREW
  • 15
    23-60773 SLEEVE, ADJUSTING- CABLE GUIDE TUBE
    SLEEVE, ADJUSTING- CABLE GUIDE TUBE
  • 15A
    23-60652 SLEEVE, ADJUSTING - CABLE GUIDE TUBE
    SLEEVE, ADJUSTING - CABLE GUIDE TUBE
  • 16
    55110T ADAPTOR, CABLE GUIDE TUBE (DUAL)
    ADAPTOR, CABLE GUIDE TUBE (DUAL)
  • 17
    13-20897 LOCKWASHER, DUAL ADAPTER NUT
    LOCKWASHER, DUAL ADAPTER NUT
  • 18
    11-55111 NUT, DUAL ADAPTER TO POWER STEERING VALVE
    NUT, DUAL ADAPTER TO POWER STEERING VALVE
  • 19
    32-55112 TUBE, CABLE GUIDE
    TUBE, CABLE GUIDE
  • 20
    12-37985 WASHER, CABLE GUIDE TUBE
    WASHER, CABLE GUIDE TUBE
  • 21
    11-8M0041651 NUT, (.875-14), CABLE GUIDE TUBE
    NUT, (.875-14), CABLE GUIDE TUBE
  • 22
    64414 GUIDE, CABLE GUIDE TUBE
    GUIDE, CABLE GUIDE TUBE
  • 23
    57286 BRACKET, MOUNTING - TRANSOM PLATE
    BRACKET, MOUNTING - TRANSOM PLATE
  • 24
    10-31832 BOLT, (.500-20 x 1.00), MOUNTING BRACKET TO TRANSOM PLATE
    BOLT, (.500-20 x 1.00), MOUNTING BRACKET TO TRANSOM PLATE
  • 25
    13-31848 LOCKWASHER, (.500), MOUNTING BRACKET SCREW
    LOCKWASHER, (.500), MOUNTING BRACKET SCREW
  • 26
    10-57968 SCREW, (.375-24 x 3.00), ADJUSTING - MOUNTING BRACKET
    SCREW, (.375-24 x 3.00), ADJUSTING - MOUNTING BRACKET
  • 27
    13-35048 LOCKWASHER, (3/8), ADJUSTING SCREW
    LOCKWASHER, (3/8), ADJUSTING SCREW
  • 28
    11-46335 NUT, ADJUSTING SCREW
    NUT, ADJUSTING SCREW
  • 29
    12-20959 WASHER, VALVE ADAPTOR STUD
    WASHER, VALVE ADAPTOR STUD
  • 30
    11-898832 NUT, (.500-20), VALVE ADAPTOR STUD
    NUT, (.500-20), VALVE ADAPTOR STUD
  • 31
    11-32882 NUT, (.875-14), MOUNTING TUBE
    NUT, (.875-14), MOUNTING TUBE
  • 32
    57971 TUBE, MOUNTING - BOOSTER ROD EXTENSION
    TUBE, MOUNTING - BOOSTER ROD EXTENSION
  • 32A
    24-78498 SPRING, TORSION - MOUNTING TUBE
    SPRING, TORSION - MOUNTING TUBE
  • 33
    11-55983 NUT, (.875-14), JAM - MOUNTING TUBE
    NUT, (.875-14), JAM - MOUNTING TUBE
  • 34
    57970 ROD, Extender, CYLINDERS BOOSTER ROD
    ROD, Extender, CYLINDERS BOOSTER ROD
  • 35
    86069T ADAPTOR, ROD END
    ADAPTOR, ROD END
  • 36
    17-52798 PIN, Clevis, STEERING CABLE AND CLEVIS ATTACHING
    PIN, Clevis, STEERING CABLE AND CLEVIS ATTACHING
  • 37
    18-46950 COTTER PIN, CLEVIS PIN RETAINING
    COTTER PIN, CLEVIS PIN RETAINING
