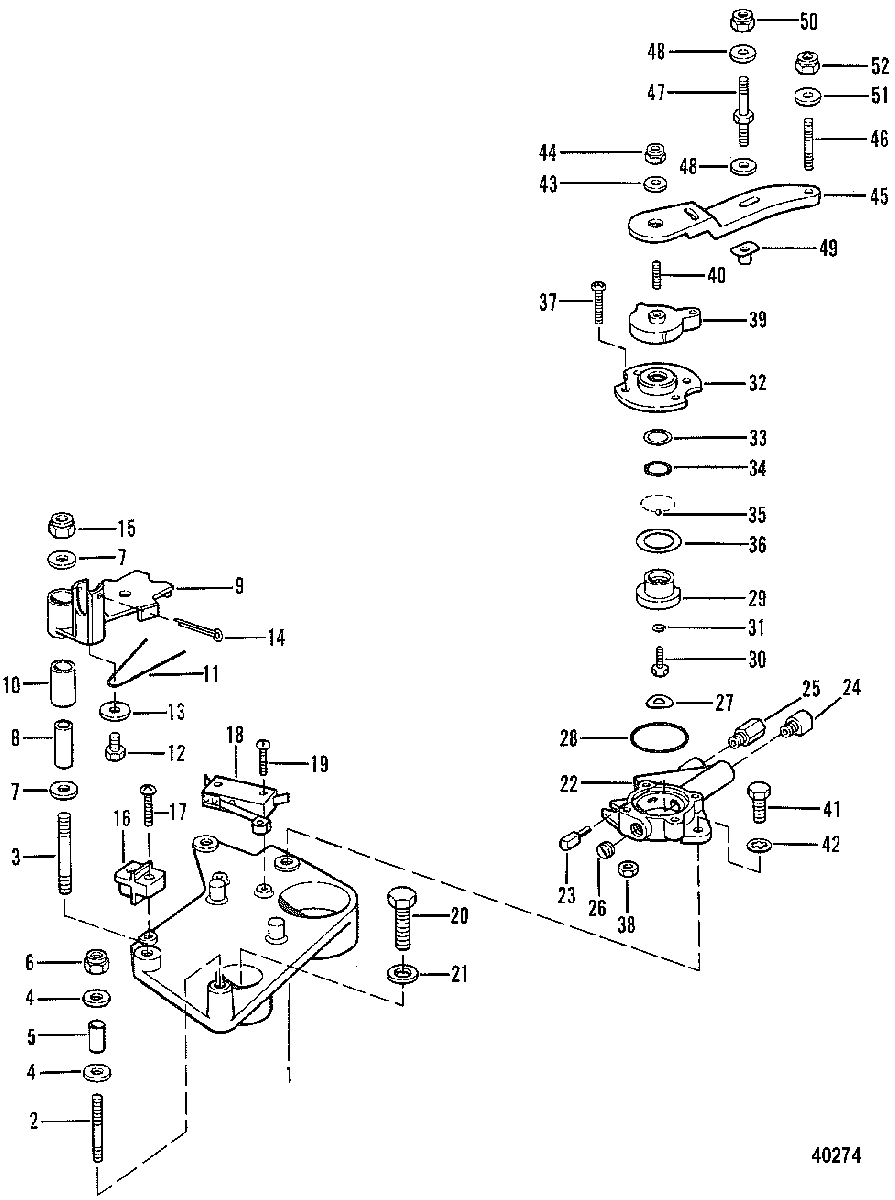

DRIVESHAFT EXTENSION COMPONENTS для Mercruiser - 228 (4 BBL.) GM 305 V-8 1979-1982 5170009 THRU 6218461
-
№АртикулНазвание
-
194912A3 SHIFT PLATE ASSEMBLYSHIFT PLATE ASSEMBLY
-
216-79661 STUD, (1.75 In.), SHIFT CABLESTUD, (1.75 In.), SHIFT CABLE
-
316-73563 STUD, (.312-18/.312-24 x 2.310), ACTUATING SWITCHSTUD, (.312-18/.312-24 x 2.310), ACTUATING SWITCH
-
412-39143 WASHER, (.253 x .625 x .0937), SHIFT CABLE STUDWASHER, (.253 x .625 x .0937), SHIFT CABLE STUD
-
523-31866 SPACER, (.256 x .313 x .625), SHIFT CABLE STUDSPACER, (.256 x .313 x .625), SHIFT CABLE STUD
-
611-8267089 NUT, (.250-28), SHIFT CABLE STUDNUT, (.250-28), SHIFT CABLE STUD
-
712-26825 WASHER, (.328 x .750 x .06), ACTUATING ARM STUDWASHER, (.328 x .750 x .06), ACTUATING ARM STUD
-
823-37981 SPACER, ACTUATING ARM STUDSPACER, ACTUATING ARM STUD
-
913051A4 ARM ASSEMBLY, SWITCH ACTUATINGARM ASSEMBLY, SWITCH ACTUATING
-
1023-45600 SLEEVE, SWITCH ACTUATING STUDSLEEVE, SWITCH ACTUATING STUD
-
1124-862850 SPRING, TENSIONSPRING, TENSION
-
1210-98257 SCREW, (1/2 In.), TENSION SPRINGSCREW, (1/2 In.), TENSION SPRING
-
1312-26825 WASHER, (.328 x .750 x .06), TENSION SPRING SCREWWASHER, (.328 x .750 x .06), TENSION SPRING SCREW
-
1418-328571 COTTER PIN, SHIFT CABLECOTTER PIN, SHIFT CABLE
-
1511-82670911 NUT, (.312-24) Stainless Steel, ACTUATING ARM STUDNUT, (.312-24) Stainless Steel, ACTUATING ARM STUD
-
1686-66986 TERMINAL BLOCKTERMINAL BLOCK
-
1710-24637 SCREW, (#10-32 x .875), TERMINAL BLOCKSCREW, (#10-32 x .875), TERMINAL BLOCK
-
1710-45218 SCREW, (#10-32 x .380), TERMINAL BLOCKSCREW, (#10-32 x .380), TERMINAL BLOCK
-
1839670A28 SWITCH ASSEMBLY, ACTUATINGSWITCH ASSEMBLY, ACTUATING
-
1910-30902 SCREW, (#6-32 x .750), ACTUATING SWITCHSCREW, (#6-32 x .750), ACTUATING SWITCH
-
2010-35047 SCREW, (.375-16 x 1.250) Stainless Steel, SHIFT PLATESCREW, (.375-16 x 1.250) Stainless Steel, SHIFT PLATE
-
2112-34931 WASHER, (.406 x .734 x .063) Stainless Steel, SHIFT PLATE SCREWWASHER, (.406 x .734 x .063) Stainless Steel, SHIFT PLATE SCREW
-
2276812T4 VALVE ASSEMBLY, Reverse LockVALVE ASSEMBLY, Reverse Lock
-
2345709 FOLLOWER, CAMFOLLOWER, CAM
-
2422-45794 ELBOW, REVERSE LOCK VALVEELBOW, REVERSE LOCK VALVE
-
2522-49719 CONNECTOR, ELBOWCONNECTOR, ELBOW
-
2622-390721 PLUG, REVERSE LOCK VALVEPLUG, REVERSE LOCK VALVE
-
2713-25906 WASHER, REVERSE LOCK VALVEWASHER, REVERSE LOCK VALVE
-
2825-457101 O-RING, (1.424 x .103), REVERSE LOCK VALVEO-RING, (1.424 x .103), REVERSE LOCK VALVE
-
2945526 CAM, REVERSE LOCK VALVECAM, REVERSE LOCK VALVE
-
3010-46736 SCREW, (0.5 In.), CAM TO CAM LEVERSCREW, (0.5 In.), CAM TO CAM LEVER
-
3113-26996 LOCKWASHER, (#10) Stainless Steel, CAM SCREWLOCKWASHER, (#10) Stainless Steel, CAM SCREW
-
3245528A2 COVER, REVERSE LOCK VALVECOVER, REVERSE LOCK VALVE
-
3312-59570 WASHER, REVERSE LOCK VALVE COVERWASHER, REVERSE LOCK VALVE COVER
-
3425-45711 O-RING, (.612 x .103), VALVE COVERO-RING, (.612 x .103), VALVE COVER
-
3530-45712 BALL, VALVE COVERBALL, VALVE COVER
-
3612-45713 WASHER, RETAINING - BALL TO VALVE COVERWASHER, RETAINING - BALL TO VALVE COVER
-
3710-45716 SCREW, (#10-32 x .9375), COVER TO REVERSE LOCK VALVESCREW, (#10-32 x .9375), COVER TO REVERSE LOCK VALVE
-
3811-20110 NUT, (#10-32), COVER SCREWNUT, (#10-32), COVER SCREW
-
3946732A1 LEVER ASSEMBLY, CAMLEVER ASSEMBLY, CAM
-
4016-45715 STUD, (10-32 x .718), SHIFT CONTROL LEVER TO CAM LEVERSTUD, (10-32 x .718), SHIFT CONTROL LEVER TO CAM LEVER
-
4110-25299 SCREW, (.312-18 x .75), REVERSE LOCK VALVESCREW, (.312-18 x .75), REVERSE LOCK VALVE
-
4213-21804 LOCKWASHER, REVERSE LOCK VALVE SCREWLOCKWASHER, REVERSE LOCK VALVE SCREW
-
4312-21273 WASHER, CAM LEVER STUDWASHER, CAM LEVER STUD
-
4411-20110 NUT, (#10-32), SHIFT CONTROL LEVER TO CAM LEVER STUDNUT, (#10-32), SHIFT CONTROL LEVER TO CAM LEVER STUD
-
4566397A1 LEVER ASSEMBLY, SHIFT CONTROL - CAM LEVERLEVER ASSEMBLY, SHIFT CONTROL - CAM LEVER
-
4616-63081 STUD, SHIFT CABLE TO LEVERSTUD, SHIFT CABLE TO LEVER
-
4716-63335 STUD, (.250-28 x 2.00), SHIFT ACTUATING CABLE TO SHIFT CONTROL LEVERSTUD, (.250-28 x 2.00), SHIFT ACTUATING CABLE TO SHIFT CONTROL LEVER
-
4812-39143 WASHER, (.253 x .625 x .0937), SHIFT ACTUATING CABLE STUDWASHER, (.253 x .625 x .0937), SHIFT ACTUATING CABLE STUD
-
4911-63341 TEE NUT, SHIFT ACTUATING CABLE TO SHIFT CONTROL LEVERTEE NUT, SHIFT ACTUATING CABLE TO SHIFT CONTROL LEVER
-
5011-8267089 NUT, (.250-28), SHIFT CABLE STUDNUT, (.250-28), SHIFT CABLE STUD
-
5112-39143 WASHER, (.253 x .625 x .0937), SHIFT CABLE STUDWASHER, (.253 x .625 x .0937), SHIFT CABLE STUD
-
5211-8267089 NUT, (.250-28), SHIFT ACTUATING LEVERNUT, (.250-28), SHIFT ACTUATING LEVER
