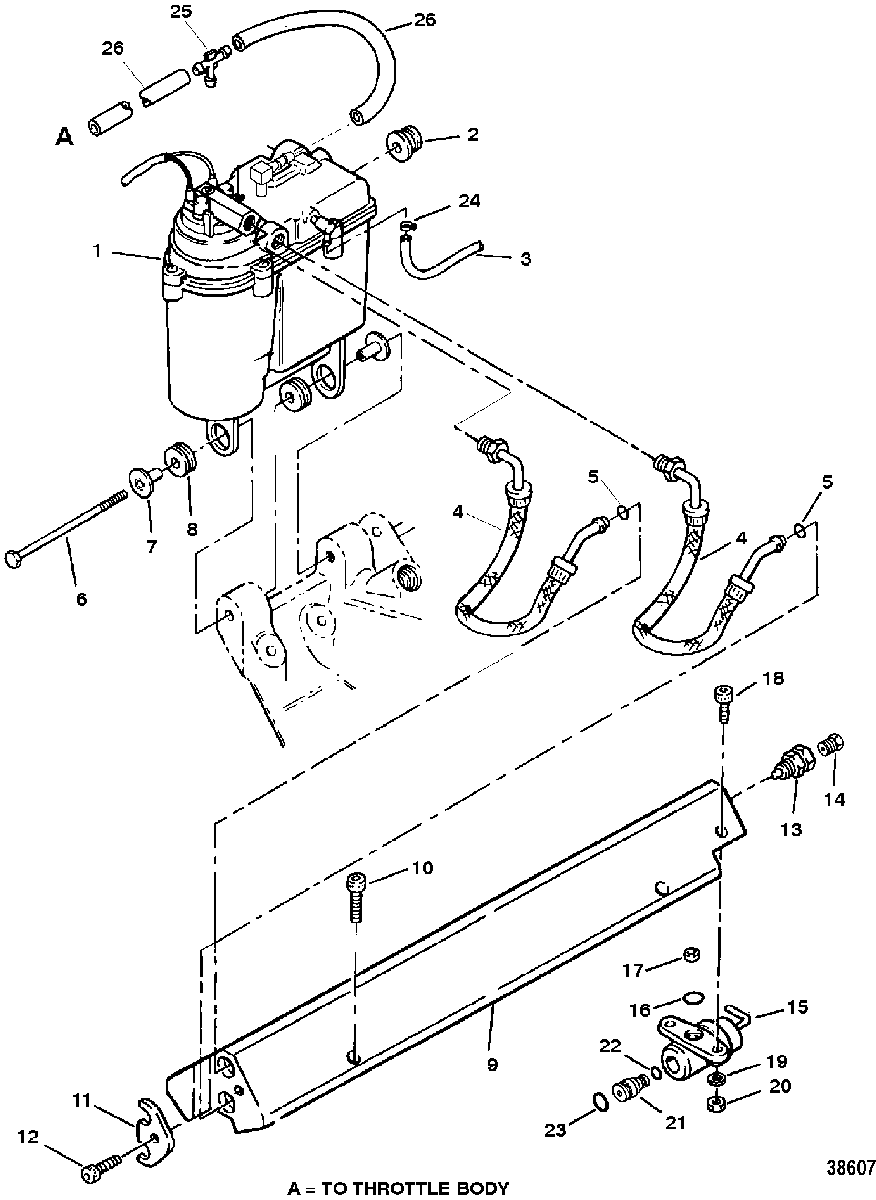

VAPOR SEPARATOR TANK AND FUEL RAIL для Mercruiser - 8.2L MIE MPI (LH) GEN. VI GM 502 V-8 1996-1997 0F819620 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    806787A3 TANK ASSEMBLY
    TANK ASSEMBLY
  • 2
    25-880331 GROMMET
    GROMMET
  • 3
    32-80568932 HOSE
    HOSE
  • 4
    32-805435A1 LINE ASSEMBLY, Fuel
    LINE ASSEMBLY, Fuel
  • 5
    25-805970 O-RING
    O-RING
  • 6
    10-805392 SCREW, (1/4-20 x 5.0)
    SCREW, (1/4-20 x 5.0)
  • 7
    23-19064 BUSHING
    BUSHING
  • 8
    25-88033 GROMMET
    GROMMET
  • 9
    805405T FUEL RAIL
    FUEL RAIL
  • 10
    10-805698 SCREW, (1/4-20 x 1.75) (1/4-20 X 1-3/4 IN.)
    SCREW, (1/4-20 x 1.75) (1/4-20 X 1-3/4 IN.)
  • 11
    54-805437 CLIP
    CLIP
  • 12
    10-805557 SCREW, (5/16-18 x .50)
    SCREW, (5/16-18 x .50)
  • 13
    22-805408 VALVE, Rail Pressure Service
    VALVE, Rail Pressure Service
  • 14
    19-8M0046566 CAP, Shrader Valve - Brass
    CAP, Shrader Valve - Brass
  • 15
    805227A1 REGULATOR ASSEMBLY, Fuel Pressure
    REGULATOR ASSEMBLY, Fuel Pressure
  • 16
    25-805531 O-RING, (.476 x .075)
    O-RING, (.476 x .075)
  • 17
    35-805406 FILTER
    FILTER
  • 18
    10-852368 SCREW, (#10-24 x .750)
    SCREW, (#10-24 x .750)
  • 19
    12-89302 WASHER, (.203 x .406 x .040)
    WASHER, (.203 x .406 x .040)
  • 20
    11-805562 NUT, (#10-24)
    NUT, (#10-24)
  • 21
    22-805514A1 FITTING ASSEMBLY
    VST FUEL SYSTEM
    FITTING ASSEMBLY
    VST FUEL SYSTEM
  • 22
    25-805553 O-RING
    VST FUEL SYSTEM
    O-RING
    VST FUEL SYSTEM
  • 23
    25-805407 O-RING, (.346 x .075)
    VST FUEL SYSTEM
    O-RING, (.346 x .075)
    VST FUEL SYSTEM
  • 21
    22-860348A2 PLUG ASSEMBLY
    FUEL COOLED SYSTEM
    PLUG ASSEMBLY
    FUEL COOLED SYSTEM
  • 22
    25-805553 O-RING
    FUEL COOLED SYSTEM
    O-RING
    FUEL COOLED SYSTEM
  • 24
    54-815504105 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 25
    22-806689 FITTING, Tee
    FITTING, Tee
  • 26
    32-7381567 TUBING, (42.00 Inches Bulk)
    TUBING, (42.00 Inches Bulk)
  • -
    27-805396A95 GASKET SET
    (7.4L)
    GASKET SET
    (7.4L)
  • -
    27-805396A92 GASKET SET, Overhaul
    (8.2L)
    GASKET SET, Overhaul
    (8.2L)
