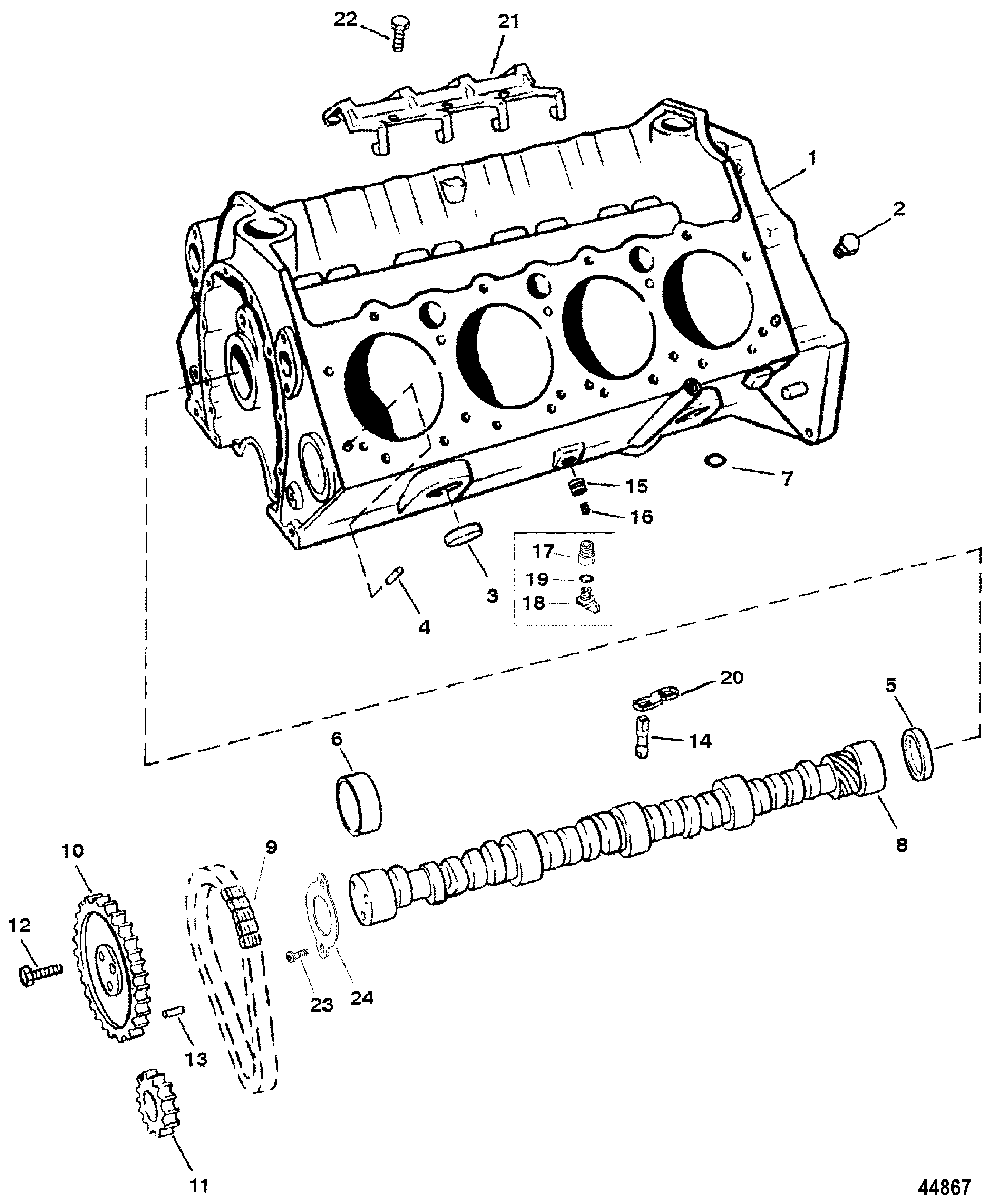

CYLINDER BLOCK AND CAMSHAFT для Mercruiser - 8.2L MIE MPI (LH) GEN. VI GM 502 V-8 1996-1997 0F819620 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    NSS NOT SOLD SEPARATE
    (7.4L) (ORDER LONG BLOCK 807739A1)
    NOT SOLD SEPARATE
    (7.4L) (ORDER LONG BLOCK 807739A1)
  • 1
    NSS NOT SOLD SEPARATE
    (8.2L) (ORDER LONG BLOCK 807745A1)
    NOT SOLD SEPARATE
    (8.2L) (ORDER LONG BLOCK 807745A1)
  • 2
    22-32561 PLUG, (.250-18 x .41)
    PLUG, (.250-18 x .41)
  • 2
    22-12524 PLUG, (.375)
    PLUG, (.375)
  • 3
    19-34270 EXPANSION PLUG, (1.625)
    EXPANSION PLUG, (1.625)
  • 4
    17-52190 PIN
    PIN
  • 5
    19-94140 EXPANSION PLUG (REAR CAMSHAFT HOLE)
    EXPANSION PLUG (REAR CAMSHAFT HOLE)
  • 6
    23-85684 BEARING SET
    BEARING SET
  • 7
    25-69756 O-RING, (.500 Inch) (REAR MAIN CAP OIL PASSAGE)
    O-RING, (.500 Inch) (REAR MAIN CAP OIL PASSAGE)
  • 8
    431-850453T CAMSHAFT
    (7.4L)
    CAMSHAFT
    (7.4L)
  • 8
    431-850478T CAMSHAFT
    (8.2L)
    CAMSHAFT
    (8.2L)
  • 9
    845796T CHAIN
    CHAIN
  • 10
    43-845795T SPROCKET
    SPROCKET
  • 11
    43-845794T SPROCKET
    SPROCKET
  • 12
    10-8M0043993 SCREW, (.312-18 x .750)
    SCREW, (.312-18 x .750)
  • 13
    17-843378 PIN, Dowel (1/4 In. Diameter)
    PIN, Dowel (1/4 In. Diameter)
  • 14
    850467 LIFTER
    (7.4L)
    LIFTER
    (7.4L)
  • 14
    850466T LIFTER, Roller
    (8.2L)
    LIFTER, Roller
    (8.2L)
  • 15
    22-48556 BUSHING , Reducer (.250 To .125)
    BRASS DRAIN PLUG
    BUSHING , Reducer (.250 To .125)
    BRASS DRAIN PLUG
  • 16
    22-328022 PLUG, Pipe (.125-27)
    BRASS DRAIN PLUG
    PLUG, Pipe (.125-27)
    BRASS DRAIN PLUG
  • 17
    22-860088 BUSHING
    PLASTIC DRAIN PLUG
    BUSHING
    PLASTIC DRAIN PLUG
  • 18
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue
    PLASTIC DRAIN PLUG
    PLUG KIT, (.500-13) Royal Blue
    PLASTIC DRAIN PLUG
  • 19
    25-32509 QUAD RING
    PLASTIC DRAIN PLUG
    QUAD RING
    PLASTIC DRAIN PLUG
  • 20
    845754 GUIDE
    GUIDE
  • 21
    8M0050807 RETAINER
    RETAINER
  • 22
    10-841389 SCREW, (.312-18 x .625)
    SCREW, (.312-18 x .625)
  • 23
    845941 RETAINER
    RETAINER
  • 24
    10-845943 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
  • -
    807739R5 MARINE LONG BLOCK
    (7.4L) (SEE NOTE)
    MARINE LONG BLOCK
    (7.4L) (SEE NOTE)
  • -
    807745A3 MARINE LONG BLOCK
    (8.2L) (SEE NOTE)
    MARINE LONG BLOCK
    (8.2L) (SEE NOTE)
  • -
    27-805396A95 GASKET SET
    (7.4L)
    GASKET SET
    (7.4L)
  • -
    27-805396A92 GASKET SET, Overhaul
    (8.2L)
    GASKET SET, Overhaul
    (8.2L)
  • -
    92-809825 RTV SILICONE, (3 Ounce Tube) Metallic Blue
    RTV SILICONE, (3 Ounce Tube) Metallic Blue
  • -
    92-34227Q02 SEALING COMPOUND, (16 Ounce)
    SEALING COMPOUND, (16 Ounce)
