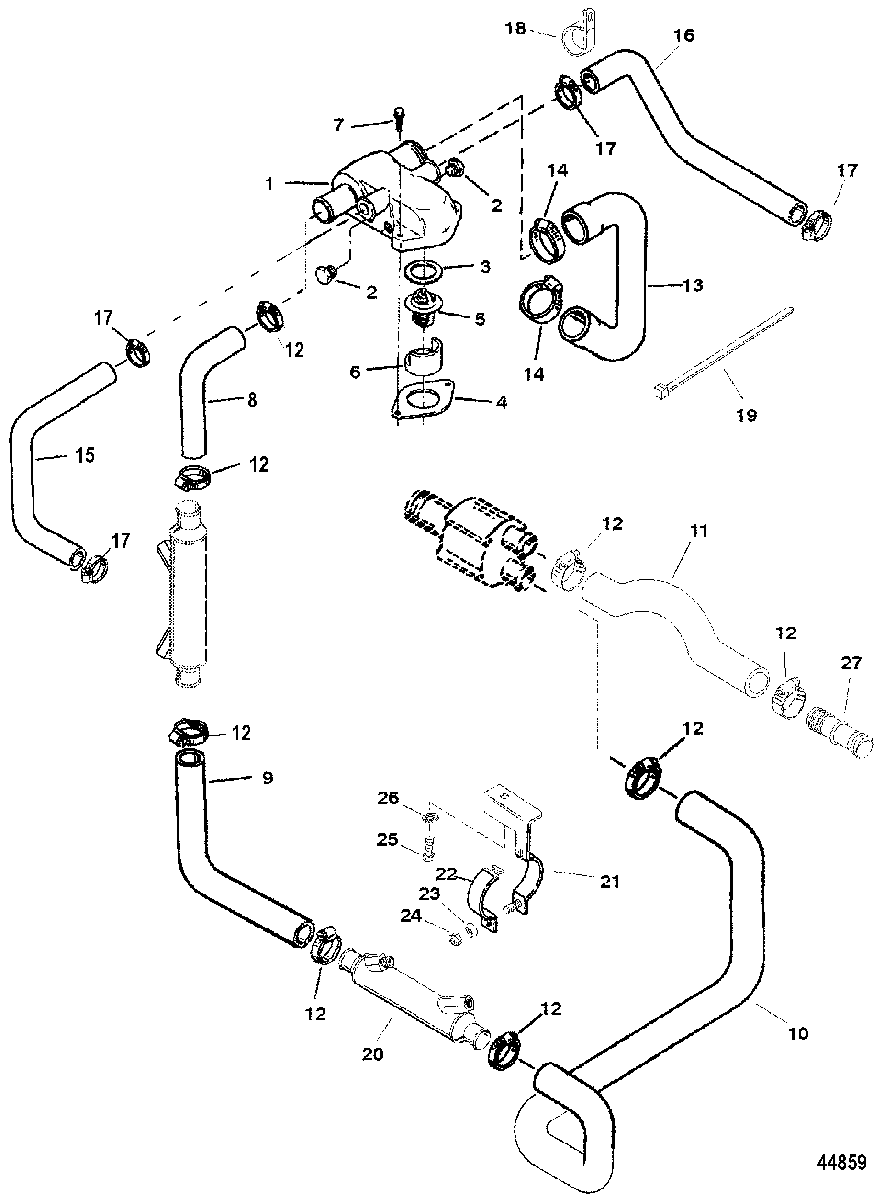

THERMOSTAT HOUSING, STANDARD COOLING (VST FUEL SYSTEM) для Mercruiser - 8.2L MIE MPI (LH) GEN. VI GM 502 V-8 1996-1997 0F819620 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    806235A1 HOUSING ASSEMBLY, Thermostat
    HOUSING ASSEMBLY, Thermostat
  • 2
    22-32803 PLUG, Pipe (.375-18) Brass
    PLUG, Pipe (.375-18) Brass
  • 3
    27-806871 GASKET, Thermostat
    GASKET, Thermostat
  • 4
    27-530451 GASKET, Thermostat Housing
    GASKET, Thermostat Housing
  • 5
    8M0109441 THERMOSTAT, 71A°C (160A°F)
    THERMOSTAT, 71A°C (160A°F)
  • 6
    23-806922 SLEEVE
    SLEEVE
  • 7
    10-8M0113180 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 8
    32-807407 HOSE, Thermostat Housing to Engine Oil Cooler
    HOSE, Thermostat Housing to Engine Oil Cooler
  • 9
    32-807405 HOSE, Cooler to Cooler
    (USE WITH 10 IN. ENGINE OIL COOLER)
    HOSE, Cooler to Cooler
    (USE WITH 10 IN. ENGINE OIL COOLER)
  • 9
    32-807406 HOSE, Cooler to Cooler
    (USE WITH 13 IN. ENGINE OIL COOLER)
    HOSE, Cooler to Cooler
    (USE WITH 13 IN. ENGINE OIL COOLER)
  • 10
    32-807404 HOSE, Transmission Oil Cooler to Seawater Pump
    HOSE, Transmission Oil Cooler to Seawater Pump
  • 11
    32-897145 HOSE, Seawater Pump To T-Fitting
    HOSE, Seawater Pump To T-Fitting
  • 12
    54-815504222 CLAMP, Worm Gear (1.98 DIameter)
    CLAMP, Worm Gear (1.98 DIameter)
  • 13
    32-897181 HOSE, Thermostat Housing to Water Pump
    HOSE, Thermostat Housing to Water Pump
  • 14
    54-815504232 CLAMP, Worm Gear (2.50 Diameter)
    CLAMP, Worm Gear (2.50 Diameter)
  • 15
    32-973853 HOSE, Thermostat Housing to Port Exhaust Manifold
    HOSE, Thermostat Housing to Port Exhaust Manifold
  • 16
    32-807201 HOSE, Thermostat Housing to Starboard Exhaust Manifold
    HOSE, Thermostat Housing to Starboard Exhaust Manifold
  • 17
    54-815504220 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 18
    54-806616 CLAMP
    CLAMP
  • 19
    77054 TIE STRAP, (14.50 Inches)
    TIE STRAP, (14.50 Inches)
  • 20
    807479T COOLER
    COOLER
  • 21
    807402T BRACKET
    BRACKET
  • 22
    807445T CLAMP
    CLAMP
  • 23
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 24
    11-8267088 NUT, (.250-20)
    NUT, (.250-20)
  • 25
    10-86750 SCREW, (.312-18 x .620)
    SCREW, (.312-18 x .620)
  • 26
    13-39107 LOCKWASHER, (.312-24)
    LOCKWASHER, (.312-24)
  • 27
    805135 COUPLER, Hose
    COUPLER, Hose
  • -
    27-805396A95 GASKET SET
    (7.4L)
    GASKET SET
    (7.4L)
  • -
    27-805396A92 GASKET SET, Overhaul
    (8.2L)
    GASKET SET, Overhaul
    (8.2L)
