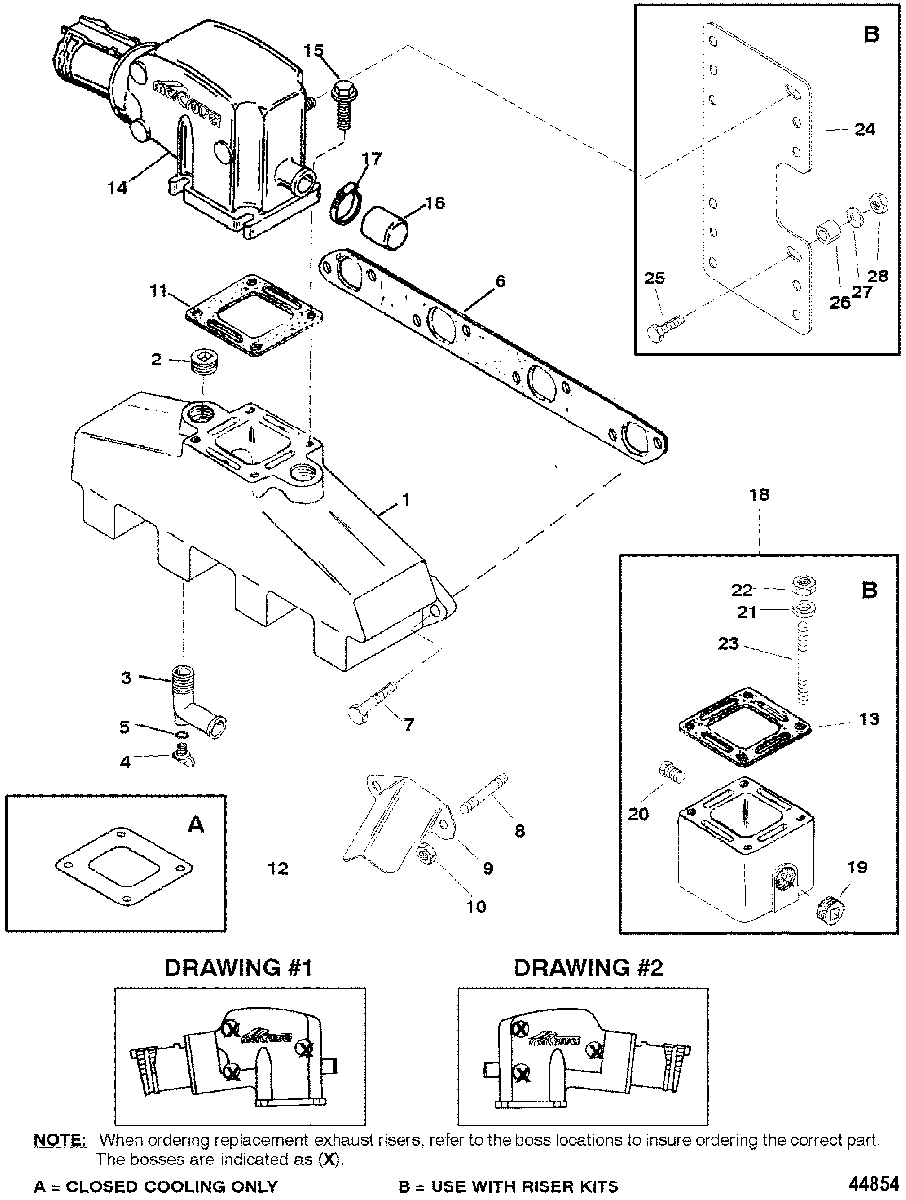

EXHAUST MANIFOLD AND EXHAUST ELBOW для Mercruiser - 8.2L MIE MPI (LH) GEN. VI GM 502 V-8 1996-1997 0F819620 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    807078T10 MANIFOLD ASSEMBLY, Exhaust
    MANIFOLD ASSEMBLY, Exhaust
  • 2
    22-416223 PLUG, (3/4-14)
    PLUG, (3/4-14)
  • 3
    22-862210A01 ELBOW KIT, Drain
    ELBOW KIT, Drain
  • 4
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue
    PLUG KIT, (.500-13) Royal Blue
  • 5
    25-32509 QUAD RING
    QUAD RING
  • 6
    27-46820 GASKET
    GASKET
  • 7
    10-37612 SCREW, (.375-16 x 1.250)
    VST FUEL SYSTEM
    SCREW, (.375-16 x 1.250)
    VST FUEL SYSTEM
  • 7
    10-37612 SCREW, (.375-16 x 1.250)
    FUEL COOLED SYSTEM
    SCREW, (.375-16 x 1.250)
    FUEL COOLED SYSTEM
  • 8
    16-860165 STUD
    FUEL COOLED SYSTEM
    STUD
    FUEL COOLED SYSTEM
  • 9
    860203T SHIELD, Heat
    FUEL COOLED SYSTEM
    SHIELD, Heat
    FUEL COOLED SYSTEM
  • 10
    11-28770 NUT, (.312-24) Stainless Steel
    FUEL COOLED SYSTEM
    NUT, (.312-24) Stainless Steel
    FUEL COOLED SYSTEM
  • 11
    27-863724 GASKET
    (USE WITH STANDARD COOLING)
    GASKET
    (USE WITH STANDARD COOLING)
  • 12
    27-8637251 GASKET
    (USE WITH CLOSED COOLING)
    GASKET
    (USE WITH CLOSED COOLING)
  • 13
    27-863726 GASKET
    (USE WITH RISER KITS)
    GASKET
    (USE WITH RISER KITS)
  • 14
    816900A5 ELBOW ASSEMBLY, Exhaust
    (SEE NOTE & DRAWING #1)
    ELBOW ASSEMBLY, Exhaust
    (SEE NOTE & DRAWING #1)
  • 14
    816900A7 ELBOW ASSEMBLY, Exhaust
    (SEE NOTE & DRAWING #2)
    ELBOW ASSEMBLY, Exhaust
    (SEE NOTE & DRAWING #2)
  • 15
    10-865982005 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 15
    10-98534 SCREW, (.375-16 x 2.30)
    SCREW, (.375-16 x 2.30)
  • 16
    19-805727001 CAP, Rubber
    CAP, Rubber
  • 17
    54-815504220 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 18
    93320A13 RISER KIT, Exhaust Elbow (3 In.)
    RISER KIT, Exhaust Elbow (3 In.)
  • 18
    807477A5 RISER KIT, Exhaust Elbow (6 In.)
    RISER KIT, Exhaust Elbow (6 In.)
  • 19
    22-416223 PLUG, (3/4-14)
    PLUG, (3/4-14)
  • 20
    22-328022 PLUG, Pipe (.125-27)
    PLUG, Pipe (.125-27)
  • 21
    12-46132 WASHER
    WASHER
  • 22
    11-46335 NUT, (.375-24)
    NUT, (.375-24)
  • 23
    16-97520 STUD, (.375 x 5.0)
    USE WITH 3 IN. RISER
    STUD, (.375 x 5.0)
    USE WITH 3 IN. RISER
  • 23
    16-34713 STUD, (.375 x 6.5)
    USE WITH 3 IN. RISER
    STUD, (.375 x 6.5)
    USE WITH 3 IN. RISER
  • 23
    10-865982005 SCREW, (.375-16 x 1.00)
    USE WITH 6 IN. RISER
    SCREW, (.375-16 x 1.00)
    USE WITH 6 IN. RISER
  • 23
    16-805978 STUD, (3/8 x 2.75)
    USE WITH 6 IN. RISER
    STUD, (3/8 x 2.75)
    USE WITH 6 IN. RISER
  • 24
    818598T BRACKET
    USE WITH 6 IN. RISER
    BRACKET
    USE WITH 6 IN. RISER
  • 25
    10-76596 SCREW, (.250-20 x 1.250)
    USE WITH 6 IN. RISER
    SCREW, (.250-20 x 1.250)
    USE WITH 6 IN. RISER
  • 26
    23-806981 SPACER
    USE WITH 6 IN. RISER
    SPACER
    USE WITH 6 IN. RISER
  • 27
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    USE WITH 6 IN. RISER
    WASHER, (.2656 x .625 x .0625) Stainless Steel
    USE WITH 6 IN. RISER
  • 28
    11-64015 NUT, (.250-20)
    USE WITH 6 IN. RISER
    NUT, (.250-20)
    USE WITH 6 IN. RISER
  • -
    27-805396A95 GASKET SET
    (7.4L)
    GASKET SET
    (7.4L)
  • -
    27-805396A92 GASKET SET, Overhaul
    (8.2L)
    GASKET SET, Overhaul
    (8.2L)
