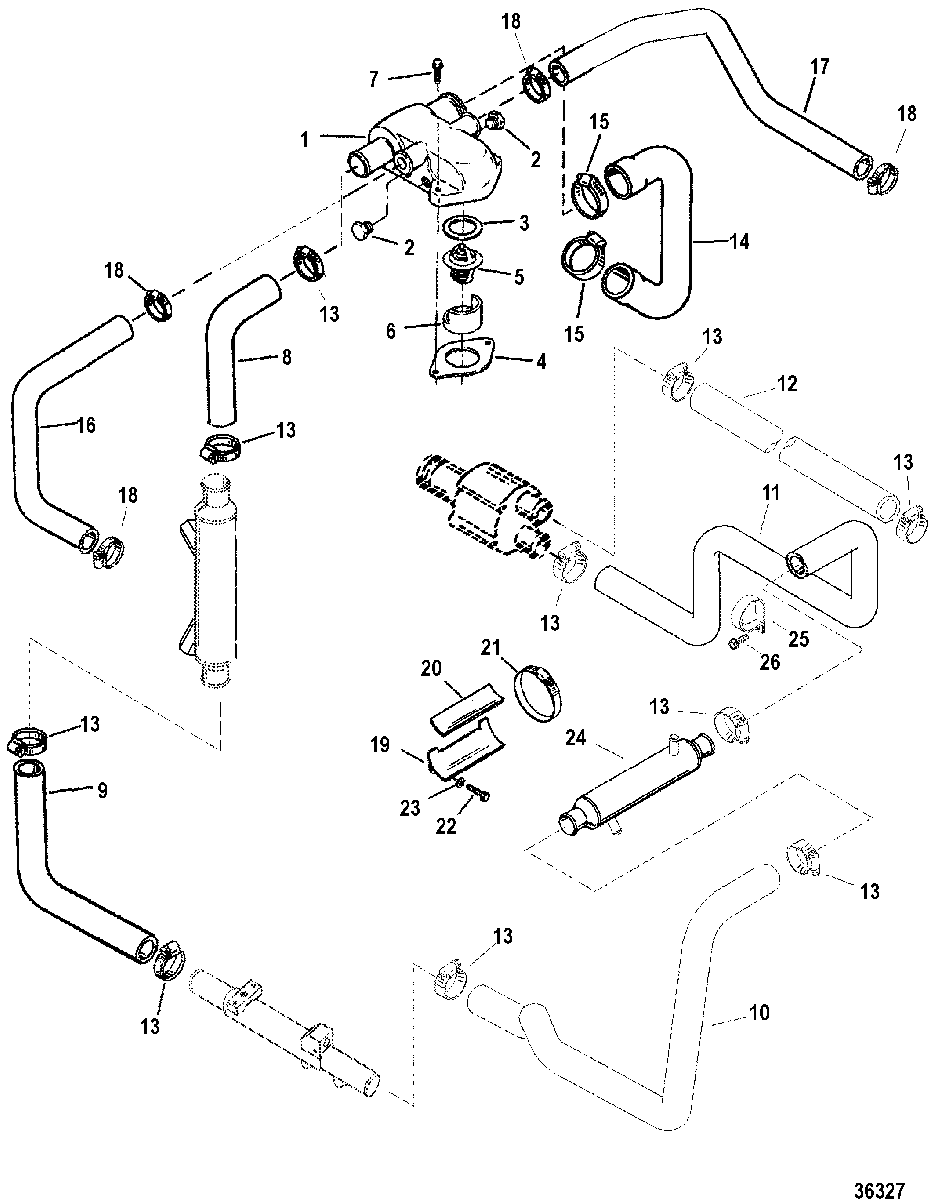

THERMOSTAT HOUSING, STANDARD COOLING (FUEL COOLED SYSTEM) для Mercruiser - 8.2L MIE MPI (LH) GEN. VI GM 502 V-8 1996-1997 0F819620 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    806235A1 HOUSING ASSEMBLY, Thermostat
    HOUSING ASSEMBLY, Thermostat
  • 2
    22-32803 PLUG, Pipe (.375-18) Brass
    PLUG, Pipe (.375-18) Brass
  • 3
    27-806871 GASKET
    GASKET
  • 4
    27-530451 GASKET
    GASKET
  • 5
    8M0109441 THERMOSTAT, 71A°C (160A°F)
    THERMOSTAT, 71A°C (160A°F)
  • 6
    23-806922 SLEEVE
    SLEEVE
  • 7
    10-8M0113180 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 8
    32-807407 HOSE
    HOSE
  • 9
    32-71613 HOSE
    (USE WITH 10 IN. ENGINE OIL COOLER)
    HOSE
    (USE WITH 10 IN. ENGINE OIL COOLER)
  • 9
    32-8074061 HOSE
    (USE WITH 13 IN. ENGINE OIL COOLER)
    HOSE
    (USE WITH 13 IN. ENGINE OIL COOLER)
  • 10
    32-808045 HOSE, Fuel Cooler to Transmission Oil Cooler
    HOSE, Fuel Cooler to Transmission Oil Cooler
  • 11
    32-808044 HOSE, Molded, Transmission Oil Cooler to Sea Water Pump
    HOSE, Molded, Transmission Oil Cooler to Sea Water Pump
  • 12
    32-8M0062666 HOSE, (96.00 Inches Bulk), Sea Water Pump to Transom
    HOSE, (96.00 Inches Bulk), Sea Water Pump to Transom
  • 13
    54-815504222 CLAMP, Worm Gear (1.98 DIameter)
    CLAMP, Worm Gear (1.98 DIameter)
  • 14
    32-897181 HOSE, Thermostat Housing to Water Pump
    HOSE, Thermostat Housing to Water Pump
  • 15
    54-815504232 CLAMP, Worm Gear (2.50 Diameter)
    CLAMP, Worm Gear (2.50 Diameter)
  • 16
    32-897491 HOSE, Thermostat Housing to Port Exhaust Manifold
    HOSE, Thermostat Housing to Port Exhaust Manifold
  • 17
    32-807201 HOSE, Thermostat Housing to Starboard Exhaust Manifold
    HOSE, Thermostat Housing to Starboard Exhaust Manifold
  • 18
    54-815504220 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 19
    805546A2 BRACKET, Transmission Oil Cooler
    BRACKET, Transmission Oil Cooler
  • 20
    772233 PAD
    PAD
  • 21
    54-815504232 CLAMP, Worm Gear (2.50 Diameter)
    CLAMP, Worm Gear (2.50 Diameter)
  • 22
    10-37612 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 23
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 24
    862837T COOLER, Transmission Oil
    COOLER, Transmission Oil
  • 25
    54-47715 CLIP
    CLIP
  • 26
    10-35765A1 SCREW AND LOCKWASHER, (.312-18 x .625)
    SCREW AND LOCKWASHER, (.312-18 x .625)
  • -
    27-805396A95 GASKET SET
    (7.4L)
    GASKET SET
    (7.4L)
  • -
    27-805396A92 GASKET SET, Overhaul
    (8.2L)
    GASKET SET, Overhaul
    (8.2L)
