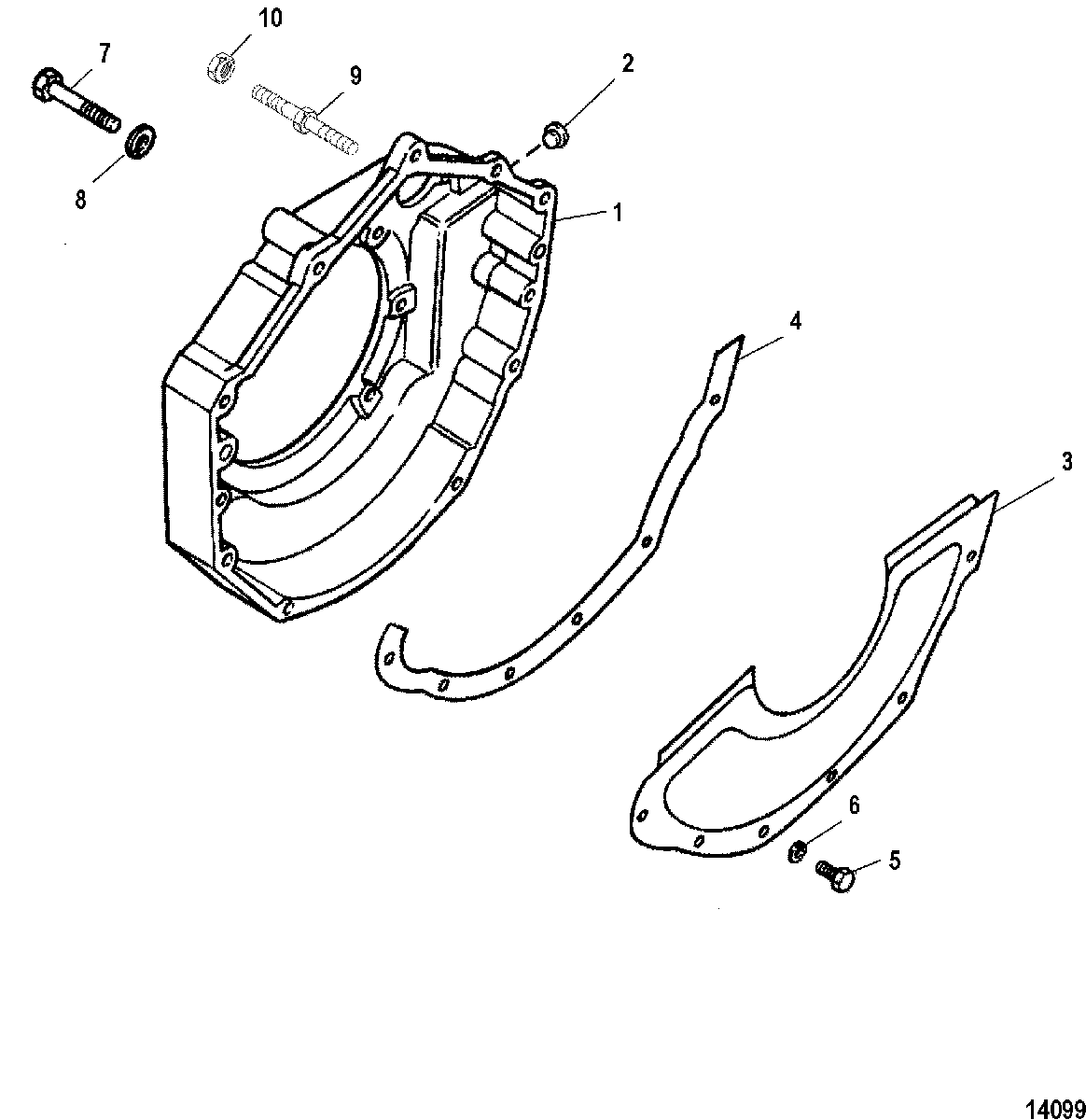

FLYWHEEL HOUSING для Mercruiser - 8.2L MIE MPI (LH) GEN. VI GM 502 V-8 1996-1997 0F819620 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    814309A1 HOUSING ASSEMBLY, Flywheel
    HOUSING ASSEMBLY, Flywheel
  • 2
    19-12304 PLUG
    PLUG
  • 3
    818718A4 COVER ASSEMBLY, Flywheel
    COVER ASSEMBLY, Flywheel
  • 4
    27-86015 GASKET
    GASKET
  • 5
    10-98253 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
  • 6
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 7
    10-47277 SCREW, (.312-24 x .750)
    SCREW, (.312-24 x .750)
  • 7
    10-34353 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 7
    10-37612 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 7
    10-47688 SCREW, (.375-16 x 2.750)
    SCREW, (.375-16 x 2.750)
  • 8
    13-39107 LOCKWASHER, (.312-24)
    LOCKWASHER, (.312-24)
  • 8
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 9
    16-8M2004610 STUD, (.375-16 x 2.130)
    STUD, (.375-16 x 2.130)
  • 10
    11-32219 NUT, (.375-16)
    NUT, (.375-16)
