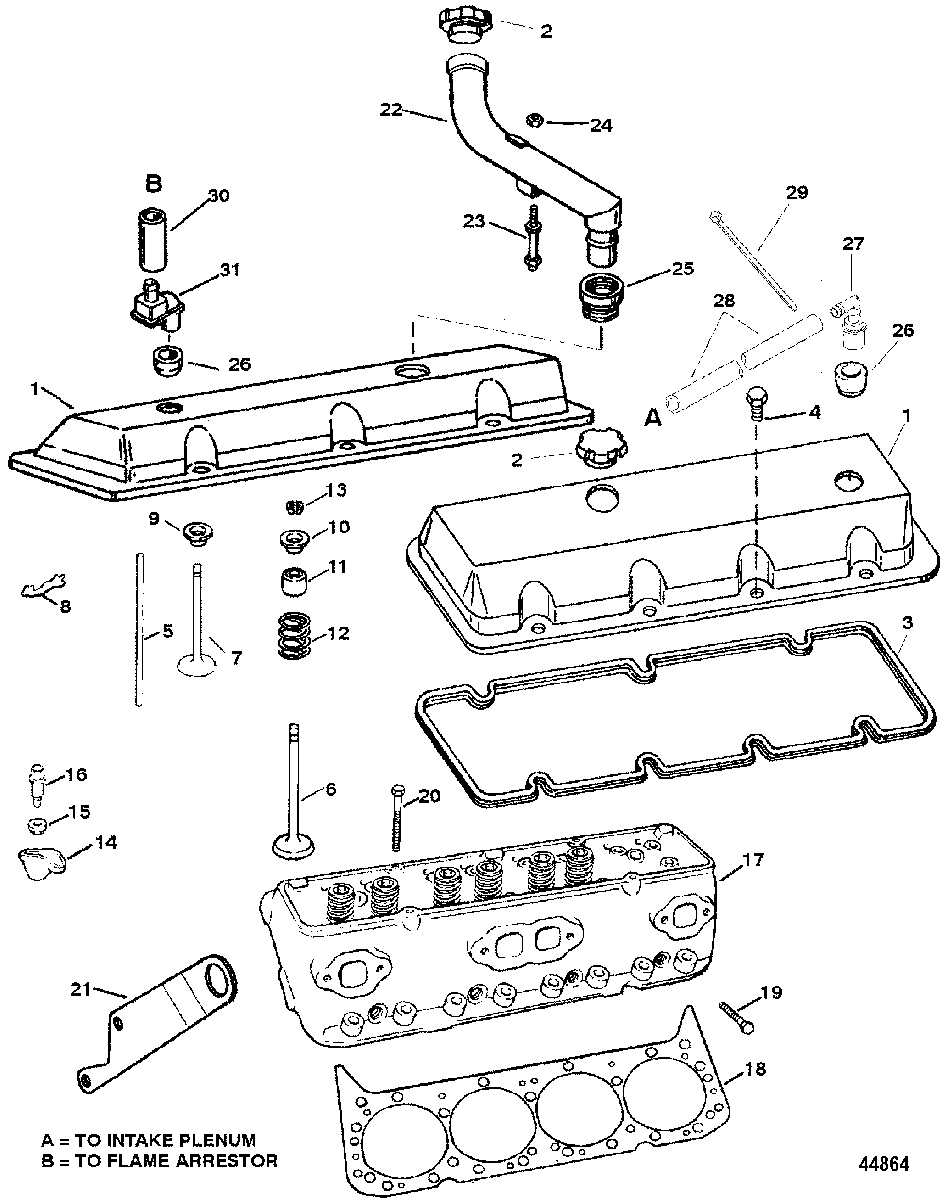

CYLINDER HEAD AND ROCKER COVER(7.4L) для Mercruiser - 8.2L MIE MPI (LH) GEN. VI GM 502 V-8 1996-1997 0F819620 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    850462 COVER, Rocker
    COVER, Rocker
  • 2
    36-811569 CAP, Oil Tank
    CAP, Oil Tank
  • 3
    27-8M0092920 GASKET, Rocker Cover
    GASKET, Rocker Cover
  • 4
    10-811589 BOLT, (1/4-20 x 0.875)
    BOLT, (1/4-20 x 0.875)
  • 5
    850468 PUSH ROD
    (INTAKE)
    PUSH ROD
    (INTAKE)
  • 5
    850469 PUSH ROD
    (EXHAUST)
    PUSH ROD
    (EXHAUST)
  • 6
    814506 VALVE, Exhaust
    (STANDARD)
    VALVE, Exhaust
    (STANDARD)
  • 6
    814507001 VALVE, Exhaust
    (.015 O.S.)
    VALVE, Exhaust
    (.015 O.S.)
  • 7
    49134 VALVE, Intake
    (STANDARD)
    VALVE, Intake
    (STANDARD)
  • 8
    811585 GUIDE
    GUIDE
  • 9
    850464 CAP
    (INTAKE)
    CAP
    (INTAKE)
  • 10
    850463 ROTATOR
    (EXHAUST)
    ROTATOR
    (EXHAUST)
  • 11
    26-811545 SEAL, Valve
    SEAL, Valve
  • 12
    24-850465T SPRING, Valve
    SPRING, Valve
  • 13
    28-54530 KEY
    KEY
  • 14
    850471 ARM, Rocker
    ARM, Rocker
  • 15
    850472 BALL, Rocker Arm
    BALL, Rocker Arm
  • 16
    10-811593 BOLT, Rocker Arm
    BOLT, Rocker Arm
  • 17
    938-883492R1 CYLINDER HEAD
    CYLINDER HEAD
  • 18
    27-879150141 GASKET, Cylinder Head
    GASKET, Cylinder Head
  • 19
    8M0102366 BOLT, (2.00 Inch)
    BOLT, (2.00 Inch)
  • 20
    8M0102366 BOLT, (4.125 Inch)
    BOLT, (4.125 Inch)
  • 21
    807081T BRACKET (FRONT)
    BRACKET (FRONT)
  • 22
    36-807131T TUBE
    TUBE
  • 23
    16-805706 STUD
    STUD
  • 24
    11-826709109 NUT, (.250-28)
    NUT, (.250-28)
  • 25
    26-805622 GROMMET
    GROMMET
  • 26
    25-811553 GROMMET
    GROMMET
  • 27
    21-806603 VALVE, PVC
    VALVE, PVC
  • 28
    32-8M0062321 HOSE, PVC (22.50 Inch Bulk)
    HOSE, PVC (22.50 Inch Bulk)
  • 29
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 30
    32-8M0062669 TUBING, (24.00 Inches Bulk)
    (USE WITH METAL FLAME ARRESTOR)
    TUBING, (24.00 Inches Bulk)
    (USE WITH METAL FLAME ARRESTOR)
  • 30
    32-8M0086022 HOSE, Breather
    (USE WITH PLASTIC FLAME ARRESTOR)
    HOSE, Breather
    (USE WITH PLASTIC FLAME ARRESTOR)
  • 31
    807925A2 BAFFLE
    BAFFLE
  • -
    27-805396A95 GASKET SET
    (7.4L)
    GASKET SET
    (7.4L)
