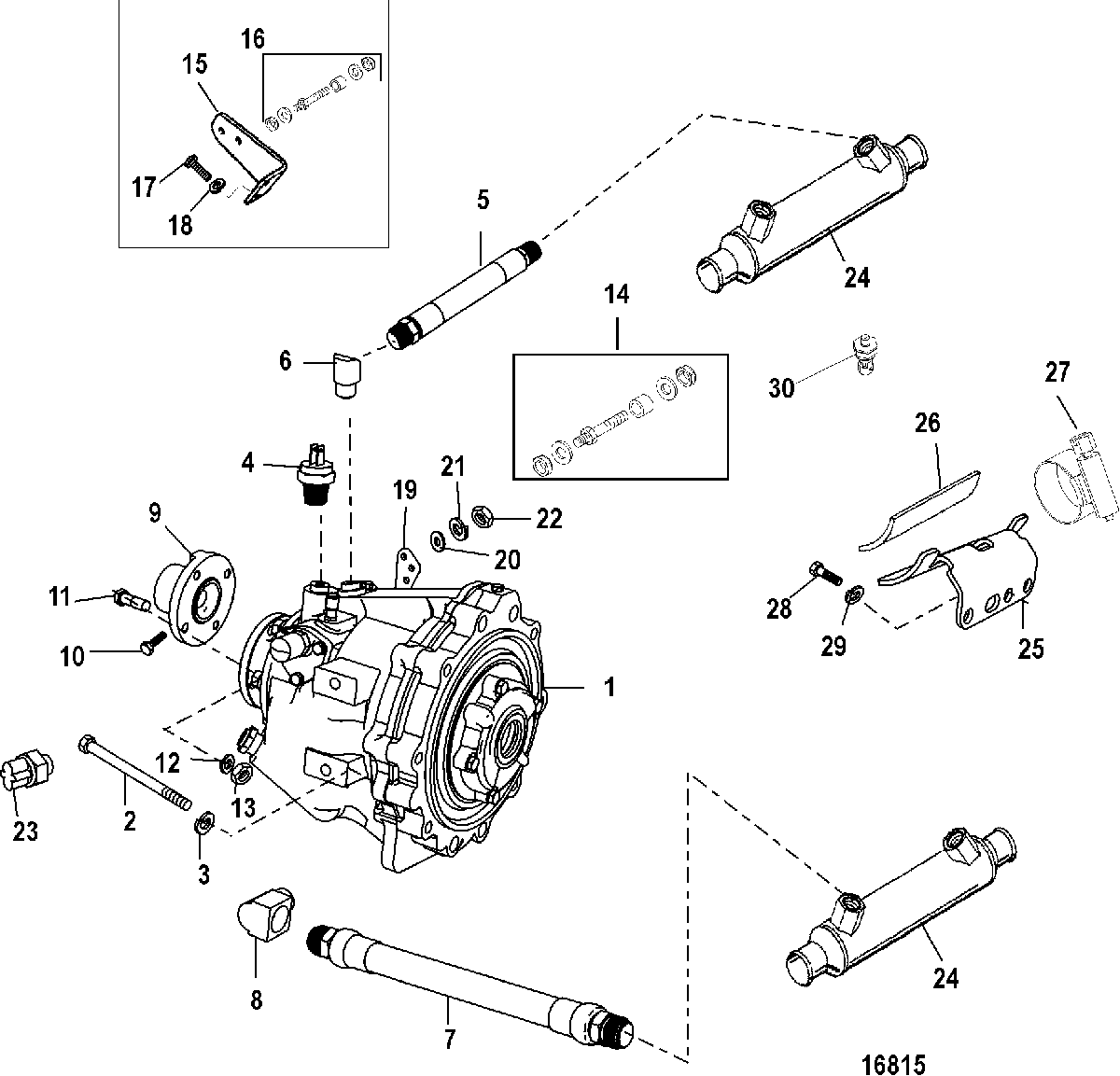

TRANSMISSION AND RELATED PARTS(BORG WARNER 72) для Mercruiser - 8.2L MIE MPI (GEN. VI) GM 502 V-8 0L002450 THRU 0L086012
-
№АртикулНазвание
-
147810A19 TRANSMISSION
(1.1:1 RATIO)TRANSMISSION
(1.1:1 RATIO) -
210-60179 SCREW, (.437-14 x 3.500)SCREW, (.437-14 x 3.500)
-
313-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
487-88031 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
532-8054781 HOSE, (19.50)HOSE, (19.50)
-
622-88517 FITTING, ReducingFITTING, Reducing
-
732-475166 HOSE ASSEMBLY, (30.00 Inches)HOSE ASSEMBLY, (30.00 Inches)
-
822-47629 ELBOW, 90 DegreeELBOW, 90 Degree
-
979476A1 FLANGE ASSEMBLY, (5.00 x 1.00)FLANGE ASSEMBLY, (5.00 x 1.00)
-
979476A2 FLANGE ASSEMBLY, (5.00 x 1.125)FLANGE ASSEMBLY, (5.00 x 1.125)
-
979476A3 FLANGE ASSEMBLY, (5.00 x 1.25)FLANGE ASSEMBLY, (5.00 x 1.25)
-
979476A4 FLANGE ASSEMBLY, (5.00 x 1.375)FLANGE ASSEMBLY, (5.00 x 1.375)
-
979476A5 FLANGE ASSEMBLY, (5.00 x 1.50)FLANGE ASSEMBLY, (5.00 x 1.50)
-
979476A6 FLANGE ASSEMBLY, (5.00 x 1.75)FLANGE ASSEMBLY, (5.00 x 1.75)
-
979476A7 FLANGE ASSEMBLY, (5.00 x 2.00)FLANGE ASSEMBLY, (5.00 x 2.00)
-
1010-60171 SCREW, (.375-16 x 1.250)SCREW, (.375-16 x 1.250)
-
1010-60169 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
1110-805159 SCREW, (.437-20 x 1.500)SCREW, (.437-20 x 1.500)
-
1213-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
1311-22024 NUT, (.437-14)NUT, (.437-14)
-
1416-97477A3 STUD KITSTUD KIT
-
1518351A1 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
1616-97477A3 STUD KITSTUD KIT
-
1710-54615 SCREW, (.250-20 x .625)SCREW, (.250-20 x .625)
-
1813-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1943325 LEVERLEVER
-
2012-20722 WASHER, (.328 x .625 x .060)WASHER, (.328 x .625 x .060)
-
2113-26993 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
2211-22053 NUT, (.312-24)NUT, (.312-24)
-
2347613 SWITCHSWITCH
-
24862837T COOLER, Transmission OilCOOLER, Transmission Oil
-
25805546A2 BRACKET, Oil CoolerBRACKET, Oil Cooler
-
26772233 PADPAD
-
2754-815504232 CLAMP, Worm Gear (2.50 Diameter)CLAMP, Worm Gear (2.50 Diameter)
-
2810-34353 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
2913-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
