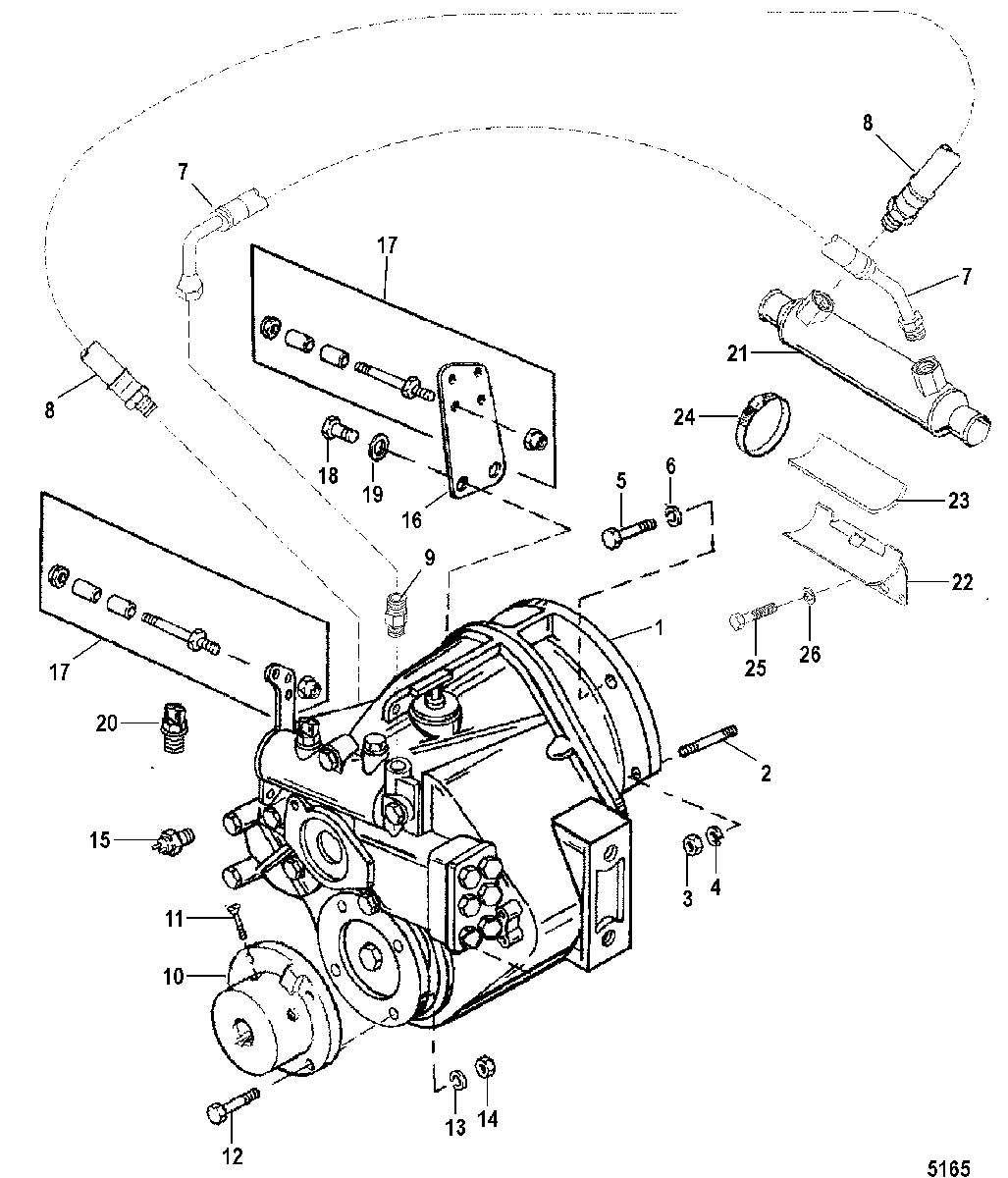

TRANSMISSION AND RELATED PARTS(BORG WARNER 5000) для Mercruiser - 8.2L MIE MPI (GEN. VI) GM 502 V-8 0L002450 THRU 0L086012
-
№АртикулНазвание
-
1805495R57 TRANSMISSION
(1.50:1 RATIO) DOWN ANGLE TRANSMISSIONTRANSMISSION
(1.50:1 RATIO) DOWN ANGLE TRANSMISSION -
1805495R58 TRANSMISSION
(2.00:1 RATIO) DOWN ANGLE TRANSMISSIONTRANSMISSION
(2.00:1 RATIO) DOWN ANGLE TRANSMISSION -
1805495R59 TRANSMISSION
(2.45:1 RATIO) DOWN ANGLE TRANSMISSIONTRANSMISSION
(2.45:1 RATIO) DOWN ANGLE TRANSMISSION -
1805495R60 TRANSMISSION
(2.80:1 RATIO) DOWN ANGLE TRANSMISSIONTRANSMISSION
(2.80:1 RATIO) DOWN ANGLE TRANSMISSION -
1807481A5 TRANSMISSION
(1.50:1 RATIO) V-DRIVE TRANSMISSIONTRANSMISSION
(1.50:1 RATIO) V-DRIVE TRANSMISSION -
1807481R56 TRANSMISSION
(2.00:1 RATIO) V-DRIVE TRANSMISSIONTRANSMISSION
(2.00:1 RATIO) V-DRIVE TRANSMISSION -
1807481R57 TRANSMISSION
(2.50:1 RATIO) V-DRIVE TRANSMISSIONTRANSMISSION
(2.50:1 RATIO) V-DRIVE TRANSMISSION -
216-805259 STUDSTUD
-
311-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
412-22248 WASHER, (.453 x .875 x .060)WASHER, (.453 x .875 x .060)
-
510-47462 SCREW, (.437-14 x 1.250)SCREW, (.437-14 x 1.250)
-
613-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
732-807686 HOSEHOSE
-
832-8054781 HOSE, (19.50)HOSE, (19.50)
-
922-807272 FITTING, (.50) Inch Flare To (.375) Inch NPTFITTING, (.50) Inch Flare To (.375) Inch NPT
-
1079476A1 FLANGE ASSEMBLY, (5.00 x 1.00)FLANGE ASSEMBLY, (5.00 x 1.00)
-
1079476A2 FLANGE ASSEMBLY, (5.00 x 1.125)FLANGE ASSEMBLY, (5.00 x 1.125)
-
1079476A3 FLANGE ASSEMBLY, (5.00 x 1.25)FLANGE ASSEMBLY, (5.00 x 1.25)
-
1079476A4 FLANGE ASSEMBLY, (5.00 x 1.375)FLANGE ASSEMBLY, (5.00 x 1.375)
-
1079476A5 FLANGE ASSEMBLY, (5.00 x 1.50)FLANGE ASSEMBLY, (5.00 x 1.50)
-
1079476A6 FLANGE ASSEMBLY, (5.00 x 1.75)FLANGE ASSEMBLY, (5.00 x 1.75)
-
1079476A7 FLANGE ASSEMBLY, (5.00 x 2.00)FLANGE ASSEMBLY, (5.00 x 2.00)
-
1110-60171 SCREW, (.375-16 x 1.250)SCREW, (.375-16 x 1.250)
-
1110-60169 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
1210-805159 SCREW, (.437-20 x 1.500)SCREW, (.437-20 x 1.500)
-
1313-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
1411-22024 NUT, (.437-14)NUT, (.437-14)
-
1587-88031 SWITCH, TempatureSWITCH, Tempature
-
16806238 BRACKETBRACKET
-
1716-97477A3 STUD KITSTUD KIT
-
1810-40001124 SCREW, (M8 x 14)SCREW, (M8 x 14)
-
1913-400247 LOCKWASHER, (M8)LOCKWASHER, (M8)
-
2047613 SWITCHSWITCH
-
21862837T COOLER, Transmission OilCOOLER, Transmission Oil
-
22805546A2 BRACKET, Oil CoolerBRACKET, Oil Cooler
-
23772233 PADPAD
-
2454-815504232 CLAMP, Worm Gear (2.50 Diameter)CLAMP, Worm Gear (2.50 Diameter)
-
2510-34353 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
2613-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
