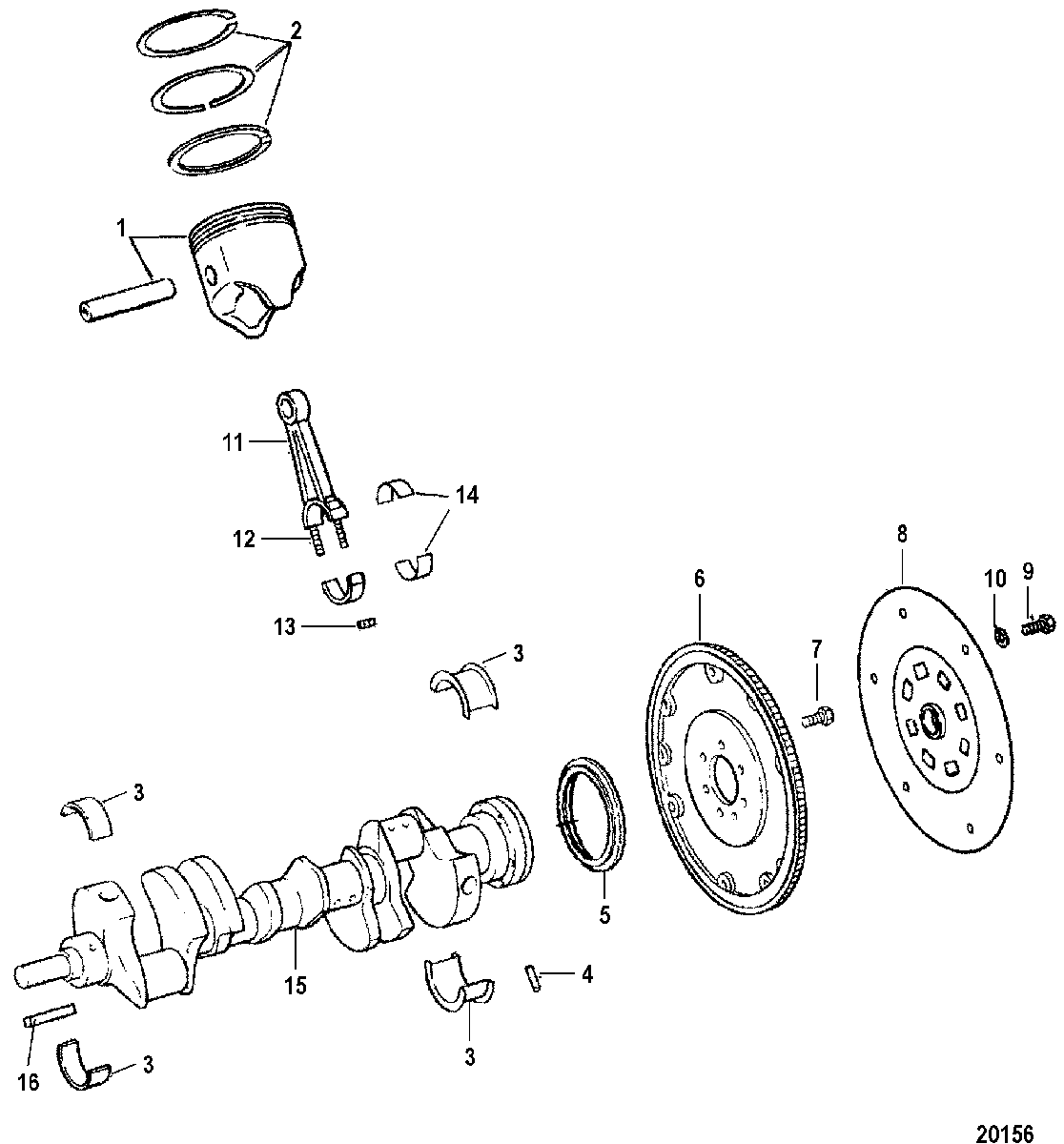

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mercruiser - 8.2L MIE MPI (GEN. VI) GM 502 V-8 0L002450 THRU 0L086012

  • №
    Артикул
    Название
  • 1
    737-850477T PISTON ASSEMBLY (STANDARD)
    454 MAG MPI HORIZON
    PISTON ASSEMBLY (STANDARD)
    454 MAG MPI HORIZON
  • 1
    737-850451 PISTON KIT (.030 O.S.)
    454 MAG MPI HORIZON
    PISTON KIT (.030 O.S.)
    454 MAG MPI HORIZON
  • 2
    39-827651T RING, Piston (STANDARD)
    454 MAG MPI HORIZON
    RING, Piston (STANDARD)
    454 MAG MPI HORIZON
  • 2
    39-850447 RING, Piston (.030 O.S.)
    454 MAG MPI HORIZON
    RING, Piston (.030 O.S.)
    454 MAG MPI HORIZON
  • 1
    737-827664 PISTON ASSEMBLY, Standard (STANDARD)
    8.2L MPI
    PISTON ASSEMBLY, Standard (STANDARD)
    8.2L MPI
  • 1
    737-827665A1 PISTON KIT (.030 O.S.)
    8.2L MPI
    PISTON KIT (.030 O.S.)
    8.2L MPI
  • 2
    39-827660T RING SET, Piston - Standard (STANDARD)
    8.2L MPI
    RING SET, Piston - Standard (STANDARD)
    8.2L MPI
  • 2
    39-852935 RING SET, Piston - .030 Oversize (.030 O.S.)
    8.2L MPI
    RING SET, Piston - .030 Oversize (.030 O.S.)
    8.2L MPI
  • 3
    23-818473001 BEARING SET, Main - Standard (STANDARD)
    BEARING SET, Main - Standard (STANDARD)
  • 3
    23-818474 BEARING SET, Main - .001 Undersize
    BEARING SET, Main - .001 Undersize
  • 3
    23-818475 BEARING SET, Main - .002 Undersize
    BEARING SET, Main - .002 Undersize
  • 3
    23-818476001 BEARING SET, Main - .010 Undersize
    BEARING SET, Main - .010 Undersize
  • 3
    23-818477 BEARING SET, Main - .020 Undersize
    BEARING SET, Main - .020 Undersize
  • 4
    17-43504 PIN, Dowel (1/4 Diameter) (1/4 IN. DIA.)
    PIN, Dowel (1/4 Diameter) (1/4 IN. DIA.)
  • 5
    26-811554 SEAL
    SEAL
  • 6
    200-8M0084512 FLYWHEEL
    FLYWHEEL
  • 7
    10-845757 SCREW, (.437-20 x 1.00)
    SCREW, (.437-20 x 1.00)
  • 8
    860125T DRIVEPLATE ASSEMBLY
    ( B/W 72C )
    DRIVEPLATE ASSEMBLY
    ( B/W 72C )
  • 8
    862975A1 DRIVEPLATE ASSEMBLY
    ( Velvet 5000 and Hurth 630 )
    DRIVEPLATE ASSEMBLY
    ( Velvet 5000 and Hurth 630 )
  • 9
    10-35091 SCREW, (.375-16 x 1.00)
    ( B/W 72C )
    SCREW, (.375-16 x 1.00)
    ( B/W 72C )
  • 9
    10-37612 SCREW, (.375-16 x 1.250)
    ( Velvet 5000 and Hurth 630 )
    SCREW, (.375-16 x 1.250)
    ( Velvet 5000 and Hurth 630 )
  • 9
    10-35091 SCREW, (.375-16 x 1.00)
    ( Velvet 5000 and Hurth 630 )
    SCREW, (.375-16 x 1.00)
    ( Velvet 5000 and Hurth 630 )
  • 10
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 11
    614-8M0084554 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 12
    10-19234 SCREW, (.437-20)
    SCREW, (.437-20)
  • 13
    11-58056 NUT
    NUT
  • 14
    23-85726001 BEARING SET, Connecting Rod - Standard
    BEARING SET, Connecting Rod - Standard
  • 14
    23-85727 BEARING SET, Connecting Rod - (.001 Undersize) (PAIR)
    BEARING SET, Connecting Rod - (.001 Undersize) (PAIR)
  • 14
    23-85728 BEARING SET, Connecting Rod - (.002 Undersize) (PAIR)
    BEARING SET, Connecting Rod - (.002 Undersize) (PAIR)
  • 14
    23-85691 BEARING SET, Connecting Rod - (.010 Undersize) (PAIR)
    BEARING SET, Connecting Rod - (.010 Undersize) (PAIR)
  • 14
    23-85729 BEARING SET, Connecting Rod - (.020 Undersize) (PAIR)
    BEARING SET, Connecting Rod - (.020 Undersize) (PAIR)
  • 15
    429-811552 CRANKSHAFT
    454 MAG MPI HORIZON
    CRANKSHAFT
    454 MAG MPI HORIZON
  • 15
    429-843083T CRANKSHAFT
    8.2L MPI
    CRANKSHAFT
    8.2L MPI
  • 16
    28-845607 KEY
    KEY
  • -
    27-811572A94 GASKET SET, Overhaul (454)
    GASKET SET, Overhaul (454)
  • -
    27-805396A92 GASKET SET, Overhaul (8.2L)
    GASKET SET, Overhaul (8.2L)
