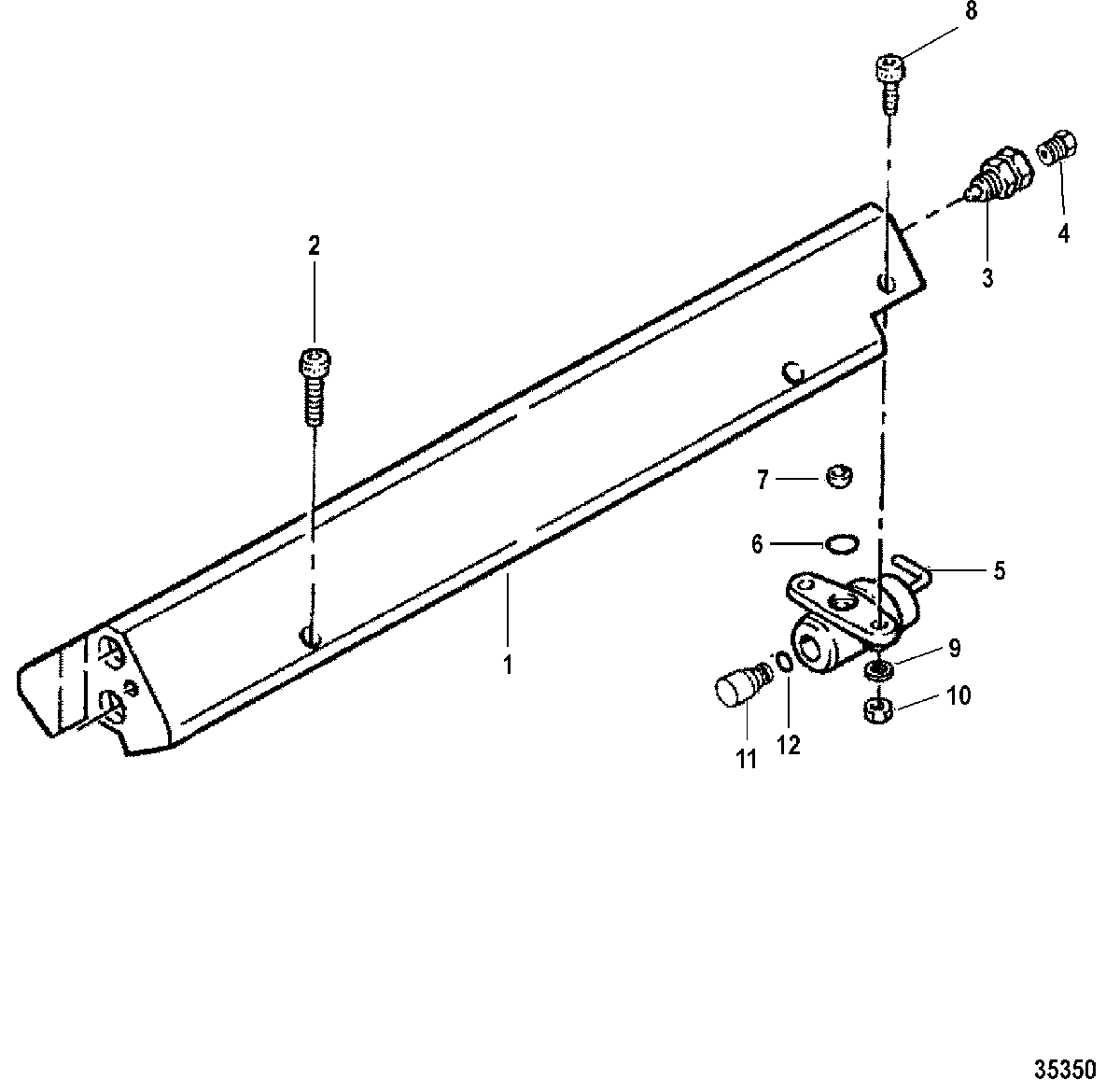

FUEL RAIL ASSEMBLY для Mercruiser - 8.2L MIE MPI (GEN. VI) GM 502 V-8 0L002450 THRU 0L086012

  • №
    Артикул
    Название
  • 1
    805405T FUEL RAIL
    FUEL RAIL
  • 2
    10-805698 SCREW, (1/4-20 x 1.75) (1/4-20 X 1-3/4 IN.)
    SCREW, (1/4-20 x 1.75) (1/4-20 X 1-3/4 IN.)
  • 3
    22-805408 VALVE, Rail Pressure Service
    VALVE, Rail Pressure Service
  • 4
    19-8M0046566 CAP, Shrader Valve - Brass
    CAP, Shrader Valve - Brass
  • 5
    805227A1 REGULATOR ASSEMBLY, Fuel Pressure
    REGULATOR ASSEMBLY, Fuel Pressure
  • 6
    25-805531 O-RING, (.476 x .075)
    O-RING, (.476 x .075)
  • 7
    35-805406 FILTER
    FILTER
  • 8
    10-852368 SCREW, (#10-24 x .750)
    SCREW, (#10-24 x .750)
  • 9
    12-89302 WASHER, (.203 x .406 x .040)
    WASHER, (.203 x .406 x .040)
  • 10
    11-805562 NUT, (#10-24)
    NUT, (#10-24)
  • 11
    22-860348A2 PLUG ASSEMBLY
    PLUG ASSEMBLY
  • 12
    25-805553 O-RING
    O-RING
  • -
    27-811572A94 GASKET SET, Overhaul (454)
    GASKET SET, Overhaul (454)
  • -
    27-805396A92 GASKET SET, Overhaul (8.2L)
    GASKET SET, Overhaul (8.2L)
