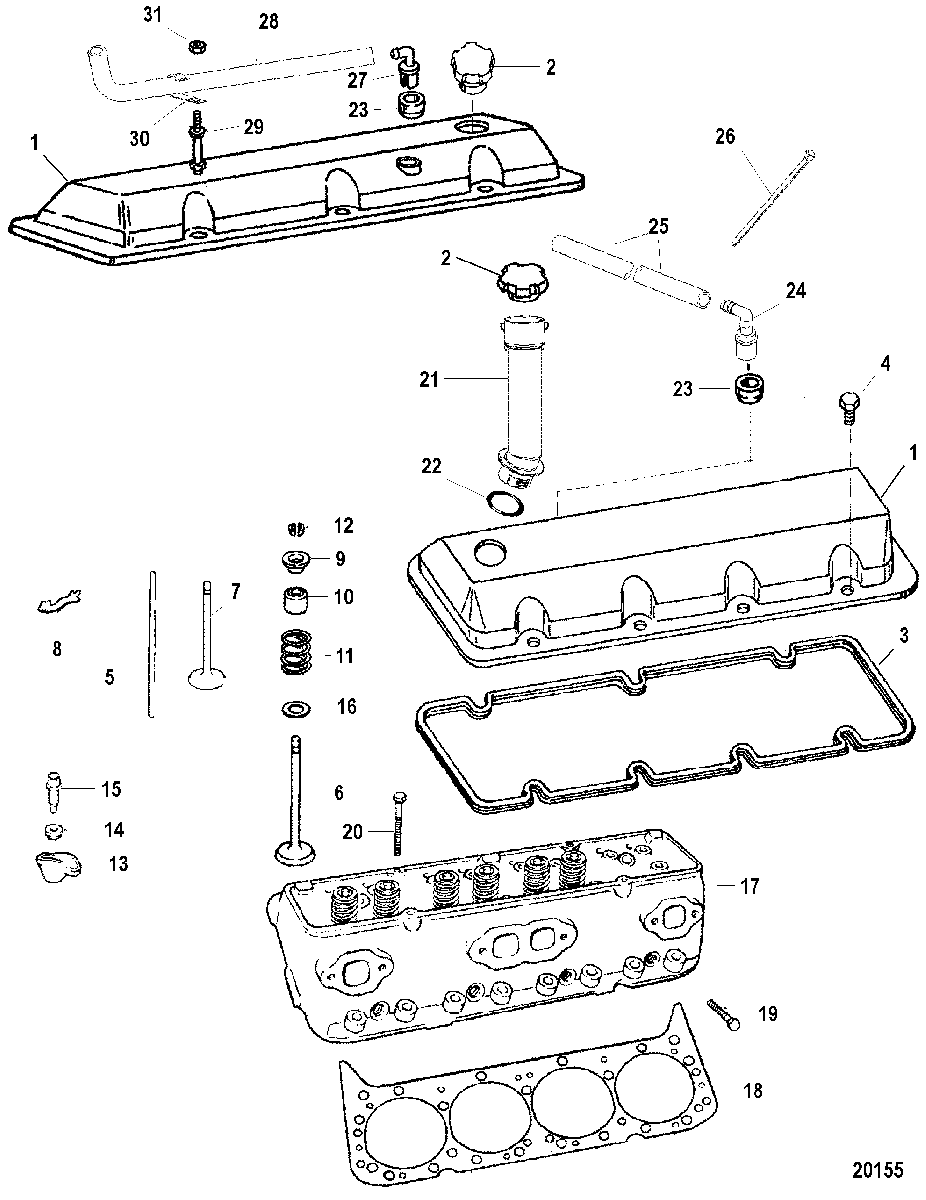

CYLINDER HEAD AND ROCKER COVER для Mercruiser - 8.2L MIE MPI (GEN. VI) GM 502 V-8 0L002450 THRU 0L086012

  • №
    Артикул
    Название
  • 1
    802565 COVER, Rocker
    COVER, Rocker
  • 2
    845753T1 CAP, Oil Fill
    CAP, Oil Fill
  • 3
    27-8M0092920 GASKET, Rocker Cover
    GASKET, Rocker Cover
  • 4
    10-811589 BOLT, (1/4-20 x 0.875) (1/4-20 X 5/8 IN.)
    BOLT, (1/4-20 x 0.875) (1/4-20 X 5/8 IN.)
  • 5
    852003 PUSH ROD
    (INTAKE)
    PUSH ROD
    (INTAKE)
  • 5
    852004 PUSH ROD
    (EXHAUST)
    PUSH ROD
    (EXHAUST)
  • 6
    816962 VALVE, Exhaust
    (STANDARD)
    VALVE, Exhaust
    (STANDARD)
  • 6
    816963T VALVE, Exhaust
    (.015 O.S.)
    VALVE, Exhaust
    (.015 O.S.)
  • 7
    801877 VALVE, Intake
    (STANDARD)
    VALVE, Intake
    (STANDARD)
  • 7
    801878 VALVE, Intake
    (.015 O.S.)
    VALVE, Intake
    (.015 O.S.)
  • 8
    881686 GUIDE
    GUIDE
  • 9
    827644A1 CAP ASSEMBLY, Valve
    CAP ASSEMBLY, Valve
  • 10
    26-827645 SEAL, Valve
    SEAL, Valve
  • 11
    24-801879T SPRING, Valve
    SPRING, Valve
  • 12
    28-54530 KEY
    KEY
  • 13
    811591T ARM, Rocker
    ARM, Rocker
  • 14
    850472 BALL, Rocker Arm
    BALL, Rocker Arm
  • 15
    10-811593 BOLT, Rocker Arm
    BOLT, Rocker Arm
  • 16
    15-845669 SHIM, Valve Spring (.015)
    SHIM, Valve Spring (.015)
  • 17
    938-8M0115141 CYLINDER HEAD ASSEMBLY
    CYLINDER HEAD ASSEMBLY
  • 18
    27-879150141 GASKET, Cylinder Head
    454 MAG MPI HORIZON
    GASKET, Cylinder Head
    454 MAG MPI HORIZON
  • 18
    27-879150139 GASKET, Cylinder Head
    8.2L MPI
    GASKET, Cylinder Head
    8.2L MPI
  • 19
    8M0102366 BOLT, (2.00 Inch)
    BOLT, (2.00 Inch)
  • 20
    8M0102366 BOLT, (4.125 Inch)
    BOLT, (4.125 Inch)
  • 21
    36-861124 TUBE, Oil Fill
    TUBE, Oil Fill
  • 22
    25-29439 O-RING
    O-RING
  • 23
    25-811553 GROMMET
    GROMMET
  • 24
    21-806603 VALVE, PVC
    VALVE, PVC
  • 25
    32-8M0062321 HOSE, (33.00 Inches Bulk) (TO INTAKE PLENUM)
    HOSE, (33.00 Inches Bulk) (TO INTAKE PLENUM)
  • 26
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 27
    97850T ELBOW, 90 Degree, Breather
    ELBOW, 90 Degree, Breather
  • 28
    32-8M0062669 TUBING, (24.00 Inches Bulk) (TO FLAME ARRESTOR)
    8.2L MPI
    TUBING, (24.00 Inches Bulk) (TO FLAME ARRESTOR)
    8.2L MPI
  • 28
    32-807786 HOSE, Molded (TO FLAME ARRESTOR)
    454 MAG MPI HORIZON
    HOSE, Molded (TO FLAME ARRESTOR)
    454 MAG MPI HORIZON
  • 29
    16-805706 STUD
    454 MAG MPI HORIZON
    STUD
    454 MAG MPI HORIZON
  • 30
    54-97224 J CLIP
    454 MAG MPI HORIZON
    J CLIP
    454 MAG MPI HORIZON
  • 31
    11-826709109 NUT, (.250-28)
    454 MAG MPI HORIZON
    NUT, (.250-28)
    454 MAG MPI HORIZON
  • -
    27-811572A94 GASKET SET, Overhaul (454)
    GASKET SET, Overhaul (454)
  • -
    27-805396A92 GASKET SET, Overhaul (8.2L)
    GASKET SET, Overhaul (8.2L)
