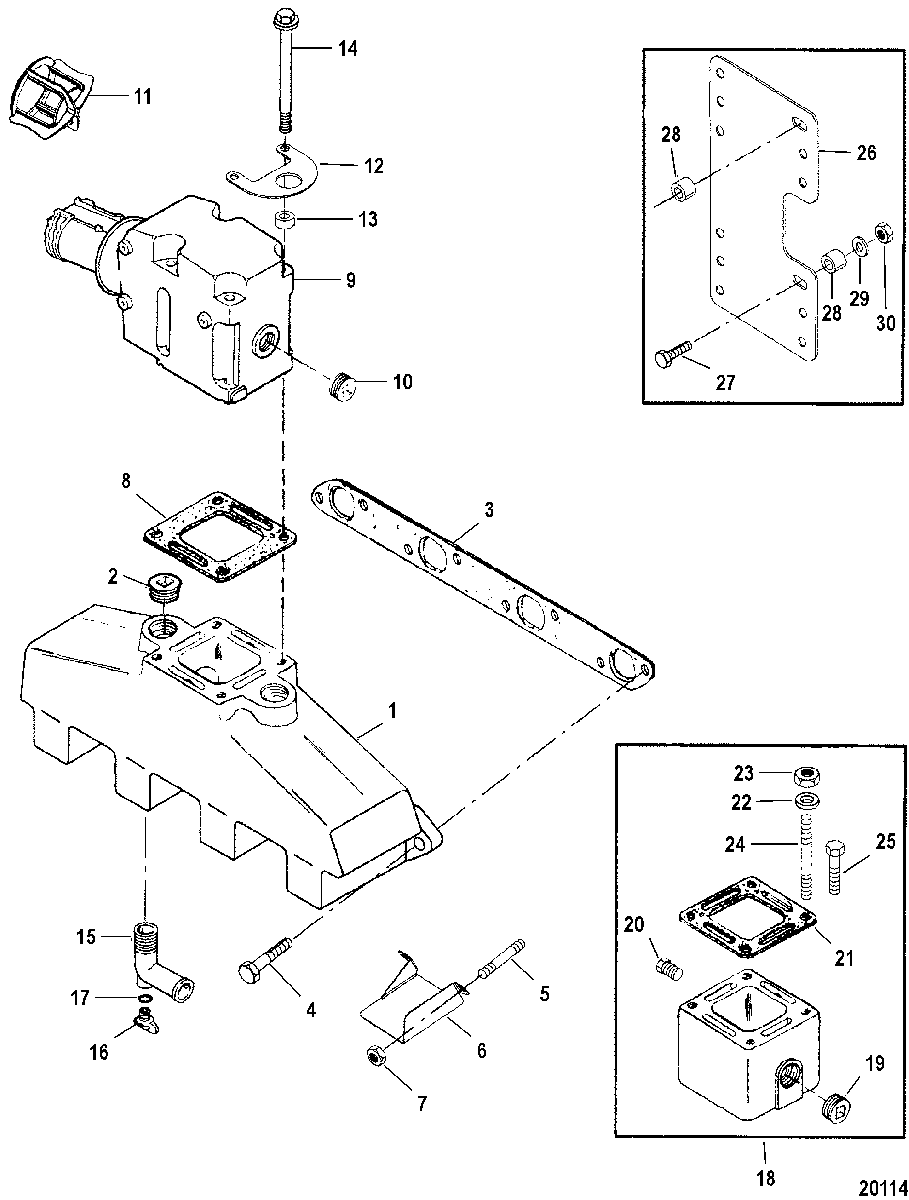

EXHAUST MANIFOLD AND EXHAUST ELBOW для Mercruiser - 8.2L MIE MPI (GEN. VI) GM 502 V-8 0L002450 THRU 0L086012

  • №
    Артикул
    Название
  • 1
    807078T10 MANIFOLD ASSEMBLY, Exhaust (CERAMIC COATED)
    MANIFOLD ASSEMBLY, Exhaust (CERAMIC COATED)
  • 2
    22-416223 PLUG, (.750-14) Pipe
    PLUG, (.750-14) Pipe
  • 3
    27-46820 GASKET
    GASKET
  • 4
    10-37612 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 5
    16-860165 STUD
    STUD
  • 6
    860203T SHIELD, Heat
    SHIELD, Heat
  • 7
    11-28770 NUT, (.312-24) Stainless Steel
    NUT, (.312-24) Stainless Steel
  • 8
    27-863724 GASKET
    GASKET
  • 9
    807988A03 ELBOW ASSEMBLY, Exhaust
    ELBOW ASSEMBLY, Exhaust
  • 10
    22-416223 PLUG, (.750-14) Pipe
    PLUG, (.750-14) Pipe
  • 11
    860222A1 RESONATOR
    RESONATOR
  • 12
    861242 BRACKET, Quick Connect
    454 MAG MPI HORIZON
    BRACKET, Quick Connect
    454 MAG MPI HORIZON
  • 13
    23-57369 SPACER
    454 MAG MPI HORIZON
    SPACER
    454 MAG MPI HORIZON
  • 14
    10-43749 SCREW, (.375-16 x 5.750)
    454 MAG MPI HORIZON
    SCREW, (.375-16 x 5.750)
    454 MAG MPI HORIZON
  • 14
    10-15007 SCREW, (.375-16 x 6.25)
    454 MAG MPI HORIZON
    SCREW, (.375-16 x 6.25)
    454 MAG MPI HORIZON
  • 14
    10-44387 SCREW, (.376-16 x 6.750)
    454 MAG MPI HORIZON
    SCREW, (.376-16 x 6.750)
    454 MAG MPI HORIZON
  • 14
    10-43749 SCREW, (.375-16 x 5.750)
    8.2L MPI W/O RISERS
    SCREW, (.375-16 x 5.750)
    8.2L MPI W/O RISERS
  • 14
    10-44387 SCREW, (.376-16 x 6.750)
    8.2L MPI W/O RISERS
    SCREW, (.376-16 x 6.750)
    8.2L MPI W/O RISERS
  • 14
    10-43749 SCREW, (.375-16 x 5.750)
    8.2L MPI W/ 6 IN. RISERS
    SCREW, (.375-16 x 5.750)
    8.2L MPI W/ 6 IN. RISERS
  • 15
    22-862210A01 ELBOW KIT, Drain
    ELBOW KIT, Drain
  • 16
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue
    PLUG KIT, (.500-13) Royal Blue
  • 17
    25-32509 QUAD RING
    QUAD RING
  • 18
    93320A13 RISER KIT, Exhaust (3 Inches)
    (3 IN.) EACH KIT CONTAINS 2 RISERS
    RISER KIT, Exhaust (3 Inches)
    (3 IN.) EACH KIT CONTAINS 2 RISERS
  • 18
    93322A12 RISER KIT, Exhaust (6 Inches)
    (6 IN.) EACH KIT CONTAINS 2 RISERS
    RISER KIT, Exhaust (6 Inches)
    (6 IN.) EACH KIT CONTAINS 2 RISERS
  • 19
    22-416223 PLUG, (.750-14) Pipe
    PLUG, (.750-14) Pipe
  • 20
    22-328022 PLUG, Pipe (.125-27)
    PLUG, Pipe (.125-27)
  • 21
    27-863726 GASKET
    GASKET
  • 22
    12-46132 WASHER
    USE WITH 3 IN. RISER
    WASHER
    USE WITH 3 IN. RISER
  • 23
    11-46335 NUT, (.375-24)
    USE WITH 3 IN. RISER
    NUT, (.375-24)
    USE WITH 3 IN. RISER
  • 24
    16-8M0022137 STUD, (.375 x 9.56)
    USE WITH 3 IN. RISER
    STUD, (.375 x 9.56)
    USE WITH 3 IN. RISER
  • 24
    16-8M0022138 STUD, (.375 x 10.56)
    USE WITH 3 IN. RISER
    STUD, (.375 x 10.56)
    USE WITH 3 IN. RISER
  • 23
    11-805979 NUT, (.375-24)
    8.2L MPI, USE WITH 6 IN. RISER
    NUT, (.375-24)
    8.2L MPI, USE WITH 6 IN. RISER
  • 24
    16-805978 STUD, (3/8 x 2.75) (3/8 X 2-3/4 IN.)
    8.2L MPI, USE WITH 6 IN. RISER
    STUD, (3/8 x 2.75) (3/8 X 2-3/4 IN.)
    8.2L MPI, USE WITH 6 IN. RISER
  • 25
    10-865982005 SCREW, (.375-16 x 1.00)
    454 MAG MPI HORIZON, USE WITH 6 IN. RISER
    SCREW, (.375-16 x 1.00)
    454 MAG MPI HORIZON, USE WITH 6 IN. RISER
  • 25
    10-865982005 SCREW, (.375-16 x 1.00)
    8.2L MPI, USE WITH 6 IN. RISER
    SCREW, (.375-16 x 1.00)
    8.2L MPI, USE WITH 6 IN. RISER
  • 26
    818598T BRACKET
    USE WITH 6 IN. RISER
    BRACKET
    USE WITH 6 IN. RISER
  • 27
    10-76596 SCREW, (.250-20 x 1.250)
    USE WITH 6 IN. RISER
    SCREW, (.250-20 x 1.250)
    USE WITH 6 IN. RISER
  • 28
    23-806981 SPACER
    USE WITH 6 IN. RISER
    SPACER
    USE WITH 6 IN. RISER
  • 29
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    USE WITH 6 IN. RISER
    WASHER, (.2656 x .625 x .0625) Stainless Steel
    USE WITH 6 IN. RISER
  • 30
    11-64015 NUT, (.250-20)
    USE WITH 6 IN. RISER
    NUT, (.250-20)
    USE WITH 6 IN. RISER
  • -
    27-811572A94 GASKET SET, Overhaul (454)
    GASKET SET, Overhaul (454)
  • -
    27-805396A92 GASKET SET, Overhaul (8.2L)
    GASKET SET, Overhaul (8.2L)
