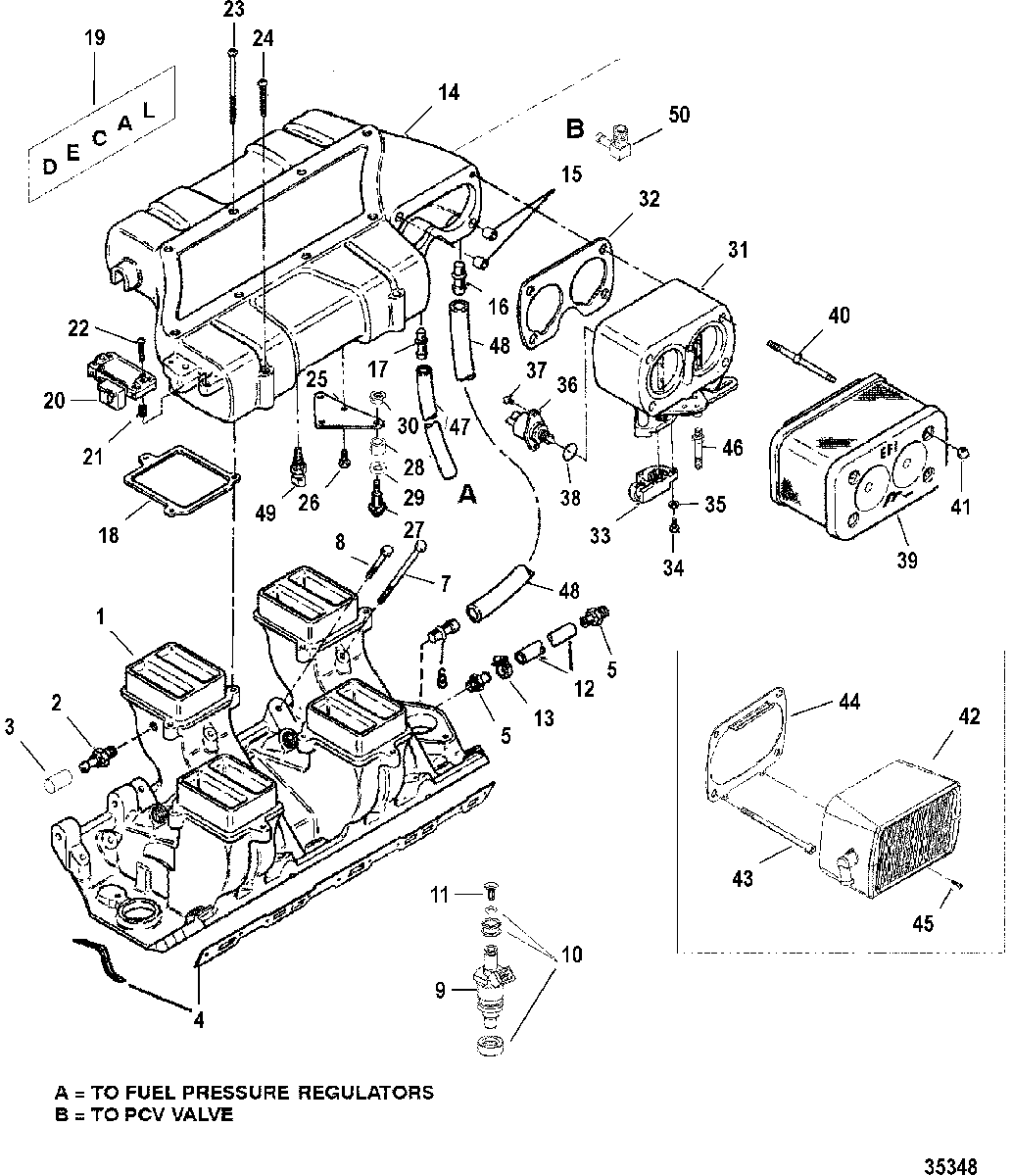

INTAKE MANIFOLD AND INTAKE PLENUM для Mercruiser - 8.2L MIE MPI (GEN. VI) GM 502 V-8 0L002450 THRU 0L086012

  • №
    Артикул
    Название
  • 1
    8M0090767 MANIFOLD ASSEMBLY, Intake
    MANIFOLD ASSEMBLY, Intake
  • 2
    22-805691 FITTING, (.250) Barb
    FITTING, (.250) Barb
  • 3
    19-854310 PLUG
    PLUG
  • 4
    27-805403A1 GASKET SET
    GASKET SET
  • 5
    22-806242 CONNECTOR
    CONNECTOR
  • 6
    22-805519 FITTING, Barb (.250 Inch)
    FITTING, Barb (.250 Inch)
  • 7
    10-807640 SCREW, (.375-16 x 5.5) (3/8-16 X 5-1/2 IN.)
    SCREW, (.375-16 x 5.5) (3/8-16 X 5-1/2 IN.)
  • 8
    10-807641 SCREW, (.375-16 x 1.75) (3/8-16 X 1-3/4 IN.)
    SCREW, (.375-16 x 1.75) (3/8-16 X 1-3/4 IN.)
  • 9
    805225A1 INJECTOR ASSEMBLY, Fuel
    INJECTOR ASSEMBLY, Fuel
  • 10
    25-805511A1 SEALING KIT, Fuel Injector
    SEALING KIT, Fuel Injector
  • 11
    35-17422 FILTER
    FILTER
  • 12
    32-8059871 HOSE, Water Pump To Intake Manifold
    HOSE, Water Pump To Intake Manifold
  • 13
    54-815504212 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 14
    805240A18 PLENUM ASSEMBLY, Intake (CRINKLE PAINT)
    454 MAG MPI HORIZON
    PLENUM ASSEMBLY, Intake (CRINKLE PAINT)
    454 MAG MPI HORIZON
  • 14
    805240A1 PLENUM ASSEMBLY, Intake
    8.2L MPI
    PLENUM ASSEMBLY, Intake
    8.2L MPI
  • 15
    23-52698 SLEEVE
    SLEEVE
  • 16
    22-805519 FITTING, Barb (.250 Inch)
    FITTING, Barb (.250 Inch)
  • 17
    22-805598 FITTING, (.1875) Barb
    FITTING, (.1875) Barb
  • 18
    27-805522A1 GASKET SET
    GASKET SET
  • 19
    38-8613641 DECAL
    454 MAG MPI HORIZON
    DECAL
    454 MAG MPI HORIZON
  • 19
    37-861369 DECAL
    8.2L MPI
    DECAL
    8.2L MPI
  • 20
    864856A1 SENSOR ASSEMBLY
    SENSOR ASSEMBLY
  • 21
    26-805412 SEAL
    SEAL
  • 22
    10-807120 SCREW, (#10-24 x 1.00)
    SCREW, (#10-24 x 1.00)
  • 23
    10-805391 SCREW (5/16-18 X 4-1/2 IN.) (GOLD COLORED)
    454 MAG MPI HORIZON
    SCREW (5/16-18 X 4-1/2 IN.) (GOLD COLORED)
    454 MAG MPI HORIZON
  • 23
    10-805391 SCREW, (.312-18 x 4.500)
    8.2L MPI
    SCREW, (.312-18 x 4.500)
    8.2L MPI
  • 24
    10-805390 SCREW (5/16-18 X 2-1/4 IN.) (GOLD COLORED)
    454 MAG MPI HORIZON
    SCREW (5/16-18 X 2-1/4 IN.) (GOLD COLORED)
    454 MAG MPI HORIZON
  • 24
    10-805390 SCREW, (.312-18 x 2.250)
    8.2L MPI
    SCREW, (.312-18 x 2.250)
    8.2L MPI
  • 25
    805413T BRACKET, Throttle Cable
    BRACKET, Throttle Cable
  • 26
    10-73286 SCREW, (.250-20 x .500) Stainless Steel
    SCREW, (.250-20 x .500) Stainless Steel
  • 27
    10-807132 SHOULDER BOLT
    SHOULDER BOLT
  • 28
    23-11284 SPACER, (.62 Diameter)
    SPACER, (.62 Diameter)
  • 29
    12-26825 WASHER, (.328 x .750 x .06)
    WASHER, (.328 x .750 x .06)
  • 30
    11-814101 NUT, (.250-20) Stainless Steel
    NUT, (.250-20) Stainless Steel
  • 31
    861475A2 THROTTLE BODY ASSEMBLY (CRINKLE PAINT)
    454 MAG MPI HORIZON
    THROTTLE BODY ASSEMBLY (CRINKLE PAINT)
    454 MAG MPI HORIZON
  • 31
    860204A5 THROTTLE BODY ASSEMBLY
    8.2L MPI
    THROTTLE BODY ASSEMBLY
    8.2L MPI
  • 32
    27-805396 GASKET, Throttle Body
    GASKET, Throttle Body
  • 33
    805226A1 SENSOR ASSEMBLY, TPS
    SENSOR ASSEMBLY, TPS
  • 34
    10-805400 SCREW, (#8-32 x .500) Stainless Steel
    SCREW, (#8-32 x .500) Stainless Steel
  • 35
    12-28001 WASHER, (.188 x .438 x .049)
    WASHER, (.188 x .438 x .049)
  • 36
    805224A1 MOTOR ASSEMBLY, IAC
    MOTOR ASSEMBLY, IAC
  • 37
    10-805400 SCREW, (#8-32 x .500) Stainless Steel
    SCREW, (#8-32 x .500) Stainless Steel
  • 38
    25-808547 O-RING
    O-RING
  • 39
    807656A2 FLAME ARRESTOR (CRINKLE PAINT)
    454 MAG MPI HORIZON
    FLAME ARRESTOR (CRINKLE PAINT)
    454 MAG MPI HORIZON
  • 40
    16-805399 STUD
    454 MAG MPI HORIZON
    STUD
    454 MAG MPI HORIZON
  • 41
    11-805402 NUT, Acorn
    454 MAG MPI HORIZON
    NUT, Acorn
    454 MAG MPI HORIZON
  • 42
    807656A2 FLAME ARRESTOR
    8.2L MPI
    FLAME ARRESTOR
    8.2L MPI
  • 43
    10-808040 SCREW, (5/16-18 x 4.0) (5/16-18 X 4 IN.)
    8.2L MPI
    SCREW, (5/16-18 x 4.0) (5/16-18 X 4 IN.)
    8.2L MPI
  • 44
    807654T BRACKET, Flame Arrestor
    8.2L MPI
    BRACKET, Flame Arrestor
    8.2L MPI
  • 45
    10-808039 SCREW, (#6-32) (#6-32)
    8.2L MPI
    SCREW, (#6-32) (#6-32)
    8.2L MPI
  • 46
    16-807133 STUD, (.250 x 1.750)
    STUD, (.250 x 1.750)
  • 47
    32-8M0063567 HOSE
    HOSE
  • 48
    32-7381567 TUBING, (42.00 Inches Bulk)
    TUBING, (42.00 Inches Bulk)
  • 49
    805223T SENSOR
    SENSOR
  • 50
    22-687271 FITTING, (.250-18) 90 Degree - Brass (TO PCV VALVE)
    FITTING, (.250-18) 90 Degree - Brass (TO PCV VALVE)
  • -
    27-811572A94 GASKET SET, Overhaul (454)
    GASKET SET, Overhaul (454)
  • -
    27-805396A92 GASKET SET, Overhaul (8.2L)
    GASKET SET, Overhaul (8.2L)
