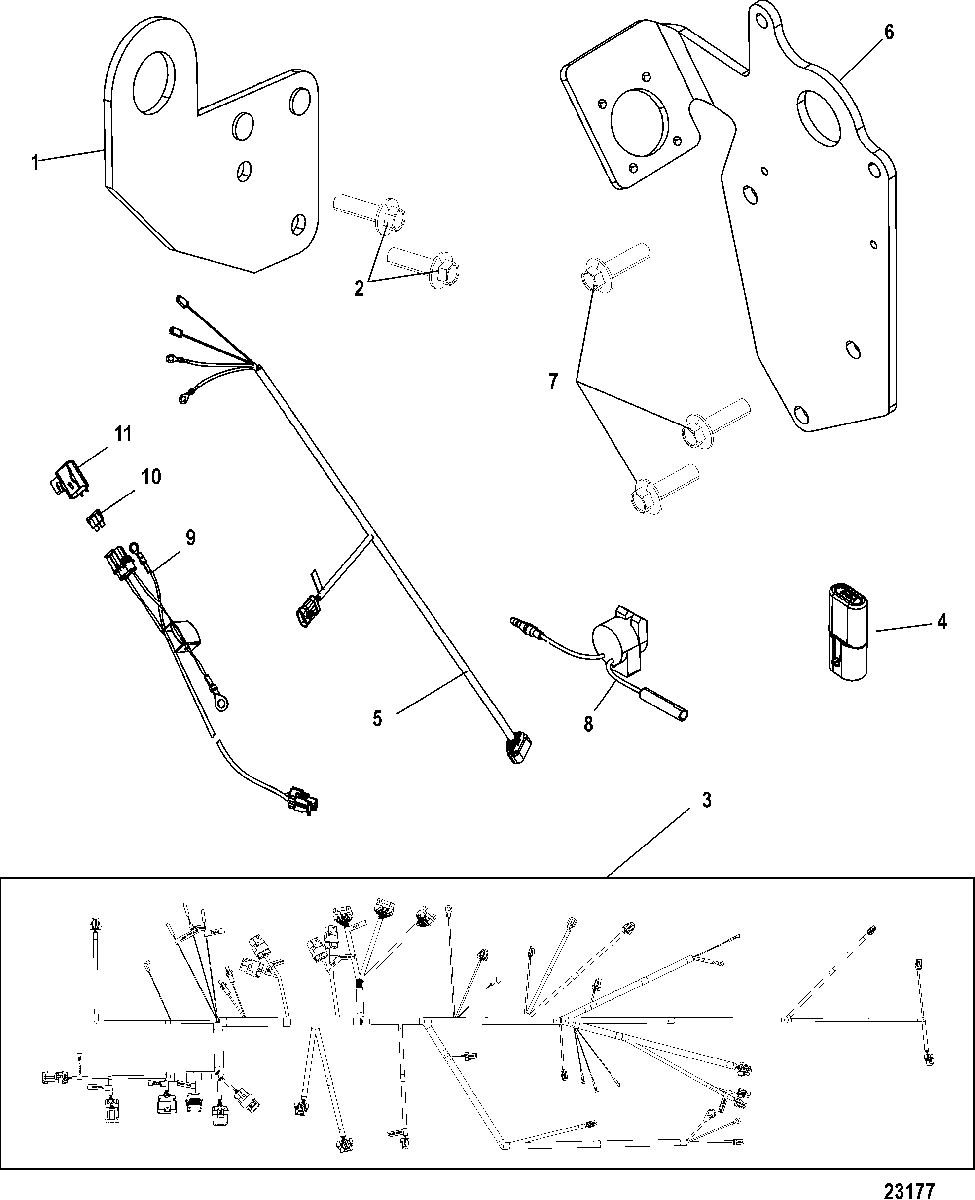

Wiring Harness and Lifting Brackets для Mercruiser - 8.1L INBOARD (Base) 0W690000 THRU 0W698172

  • №
    Артикул
    Название
  • 1
    862346T BRACKET, Front Lifting Eye
    BRACKET, Front Lifting Eye
  • 2
    10-4010820 SCREW, (M10 x 20) Hex Flange - Stainless Steel
    SCREW, (M10 x 20) Hex Flange - Stainless Steel
  • 3
    84-865457T06 HARNESS ASSEMBLY, Engine
    Mechanical Throttle and Shift
    HARNESS ASSEMBLY, Engine
    Mechanical Throttle and Shift
  • 3
    84-865653T04 HARNESS ASSEMBLY, Engine
    Digital Throttle and Shift
    HARNESS ASSEMBLY, Engine
    Digital Throttle and Shift
  • 4
    893388A01 CAP, Resitor - 2 Pin, 120 Ohm (CAN 1, 2 and 3)
    CAP, Resitor - 2 Pin, 120 Ohm (CAN 1, 2 and 3)
  • 5
    84-865769T01 HARNESS ASSEMBLY, Transmission
    Mechanical Throttle and Shift
    HARNESS ASSEMBLY, Transmission
    Mechanical Throttle and Shift
  • 5
    84-865676T01 HARNESS ASSEMBLY, Transmission
    Digital Throttle and Shift
    HARNESS ASSEMBLY, Transmission
    Digital Throttle and Shift
  • 6
    862347T BRACKET, Rear Lifting Eye
    BRACKET, Rear Lifting Eye
  • 7
    10-4010820 SCREW, (M10 x 20) Hex Flange - Stainless Steel
    SCREW, (M10 x 20) Hex Flange - Stainless Steel
  • 8
    816492A15 ALARM KIT
    ALARM KIT
  • 9
    84-8M0113732 HARNESS ASSEMBLY, Clean Power
    HARNESS ASSEMBLY, Clean Power
  • 10
    862646 FUSE, Tan - 5 Ampere
    FUSE, Tan - 5 Ampere
  • 11
    828054 COVER, Fuse
    COVER, Fuse
