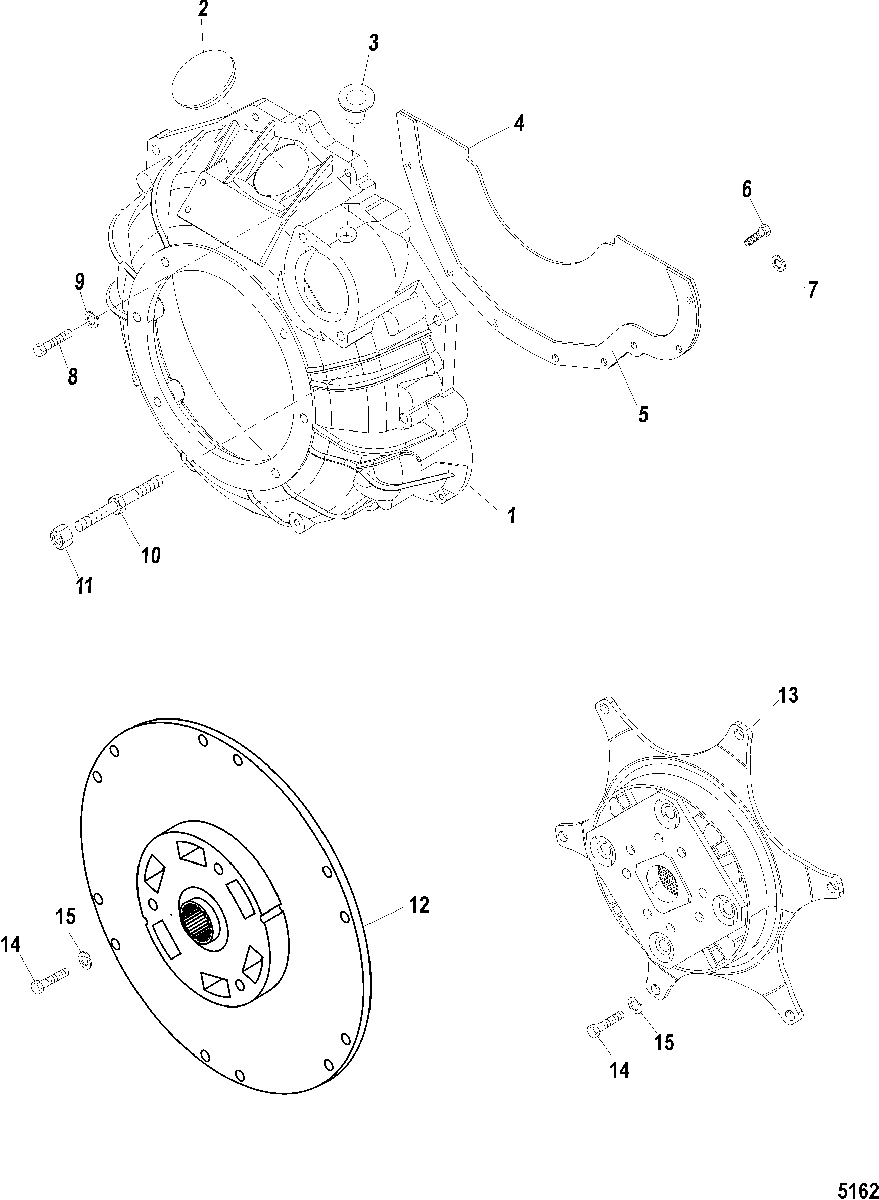

Flywheel Housing для Mercruiser - 8.1L INBOARD (Base) 0W690000 THRU 0W698172

  • №
    Артикул
    Название
  • 1
    814309A1 HOUSING ASSEMBLY
    HOUSING ASSEMBLY
  • 2
    19-12304 PLUG
    PLUG
  • 4
    818718A4 COVER ASSEMBLY, Flywheel
    COVER ASSEMBLY, Flywheel
  • 5
    27-86015 GASKET
    GASKET
  • 6
    10-98253 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
  • 7
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 8
    10-47277 SCREW, (.312-24 x .750)
    SCREW, (.312-24 x .750)
  • 8
    10-4009025 SCREW, (M10 x 25) Stainless Steel
    SCREW, (M10 x 25) Stainless Steel
  • 8
    10-40001197 SCREW, (M10 x 35)
    SCREW, (M10 x 35)
  • 8
    10-4010870 SCREW, (M10 x 70) Hex Flange - Stainless Steel
    SCREW, (M10 x 70) Hex Flange - Stainless Steel
  • 9
    13-400248 LOCKWASHER, (M10)
    LOCKWASHER, (M10)
  • 9
    13-400247 LOCKWASHER, (M8)
    LOCKWASHER, (M8)
  • 10
    16-861316 STUD, Grounding, Stainless Steel
    STUD, Grounding, Stainless Steel
  • 11
    11-40125100 NUT, (M10)
    NUT, (M10)
  • 12
    860125T DRIVEPLATE ASSEMBLY
    (Borg Warner 72C Only)
    DRIVEPLATE ASSEMBLY
    (Borg Warner 72C Only)
  • 13
    862975A2 DRIVEPLATE ASSEMBLY
    (Borg Warner 5000 And All Hurth Transmissions) Includes Fasteners
    DRIVEPLATE ASSEMBLY
    (Borg Warner 5000 And All Hurth Transmissions) Includes Fasteners
  • 14
    10-40001195 SCREW, (M10 x 30)
    SCREW, (M10 x 30)
  • 15
    12-25909 WASHER, (.406 x .812 x .065)
    WASHER, (.406 x .812 x .065)
