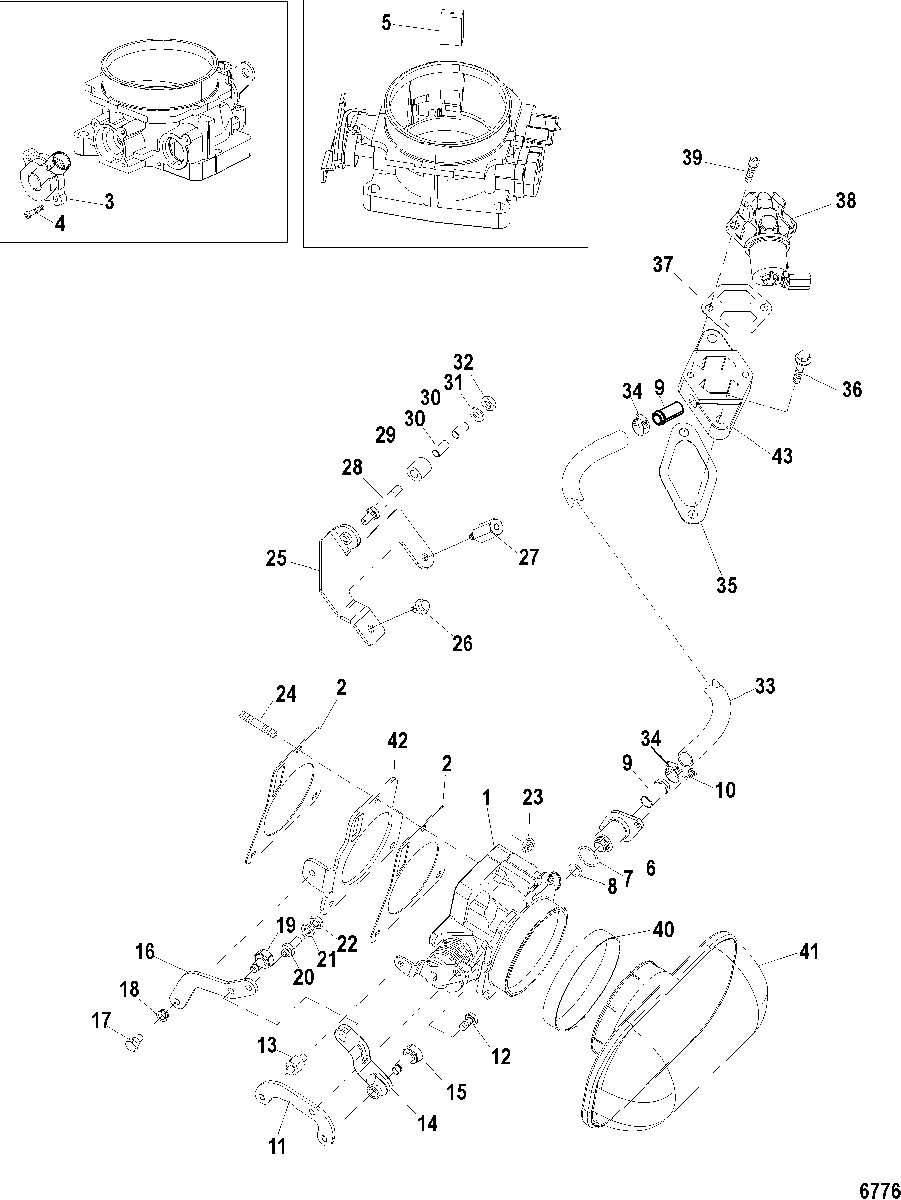

Throttle Body, Mechanical Throttle, Shift для Mercruiser - 8.1L INBOARD (Base) 0W690000 THRU 0W698172

  • №
    Артикул
    Название
  • 1
    866576A04 THROTTLE BODY ASSEMBLY
    Base
    THROTTLE BODY ASSEMBLY
    Base
  • 1
    866577A04 THROTTLE BODY ASSEMBLY
    High Output
    THROTTLE BODY ASSEMBLY
    High Output
  • 2
    27-863215 GASKET, Throttle Body
    GASKET, Throttle Body
  • 3
    8M0097035 SENSOR, TPS, Includes O-Ring
    SENSOR, TPS, Includes O-Ring
  • 4
    10-853680 SCREW KIT
    SCREW KIT
  • 5
    35-863829 MUFFLER, Intake Air Control
    Not Used on All Applications
    MUFFLER, Intake Air Control
    Not Used on All Applications
  • 6
    862999A5 PLUG KIT, Adaptor, Intake Air Control
    PLUG KIT, Adaptor, Intake Air Control
  • 7
    25-808547 O-RING
    O-RING
  • 8
    25-863006 O-RING
    O-RING
  • 9
    22-863427 FITTING, Air Valve
    FITTING, Air Valve
  • 10
    10-805400 SCREW, (#8-32 x .500) Stainless Steel
    SCREW, (#8-32 x .500) Stainless Steel
  • 11
    863135 LEVER, Throttle
    LEVER, Throttle
  • 12
    10-64014 SCREW, (.250-28 x .500)
    SCREW, (.250-28 x .500)
  • 13
    16-863345 STUD, Special
    STUD, Special
  • 14
    863214 LINK
    LINK
  • 15
    805533 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 16
    8M2001692 ARM, Cable
    ARM, Cable
  • 17
    10-863380 SCREW, Special
    SCREW, Special
  • 18
    23-97896 BUSHING, Flanged
    BUSHING, Flanged
  • 19
    805398 PIN, Primary Linkage
    PIN, Primary Linkage
  • 20
    16-805526 STUD, (.250-28 x 1.540)
    STUD, (.250-28 x 1.540)
  • 21
    12-20533 WASHER
    WASHER
  • 22
    11-8267139 NUT, (.250-28)
    NUT, (.250-28)
  • 23
    11-802751 NUT
    NUT
  • 24
    16-8M0077391 STUD
    STUD
  • 25
    863153 BRACKET, Throttle Cable Attaching
    BRACKET, Throttle Cable Attaching
  • 26
    10-4006731 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 27
    23-863734 SPACER
    SPACER
  • 28
    16-97477A3 STUD KIT
    STUD KIT
  • 29
    NSS NOT SOLD SEPARATE, Spacer, Special
    NOT SOLD SEPARATE, Spacer, Special
  • 30
    23-31866 SPACER, (.256 x .313 x .625)
    SPACER, (.256 x .313 x .625)
  • 31
    12-20533 WASHER
    WASHER
  • 32
    11-8267139 NUT, (.250-28)
    NUT, (.250-28)
  • 33
    32-864262 HOSE, Air Bypass
    HOSE, Air Bypass
  • 34
    54-815504206 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • NS
    19-8M0074364 COVER, Hose Clamp End
    COVER, Hose Clamp End
  • 35
    27-863285 GASKET, Air Valve
    GASKET, Air Valve
  • 36
    10-40011151 SCREW, (M8 x 35) Stainless Steel
    SCREW, (M8 x 35) Stainless Steel
  • 37
    27-8M0119616 GASKET, Idle Air Valve
    GASKET, Idle Air Valve
  • 38
    862998 VALVE, Idle Air
    VALVE, Idle Air
  • 39
    10-4008820 SCREW, (M6 x 20)
    SCREW, (M6 x 20)
  • 40
    54-863393 CLAMP, Flame Arrestor
    CLAMP, Flame Arrestor
  • 41
    8M0113516 FLAME ARRESTOR
    FLAME ARRESTOR
  • 42
    862996 BRACKET, Throttle Linkage
    BRACKET, Throttle Linkage
  • 43
    862997A1 MOUNTING PLATE, Intake Air Control
    MOUNTING PLATE, Intake Air Control
