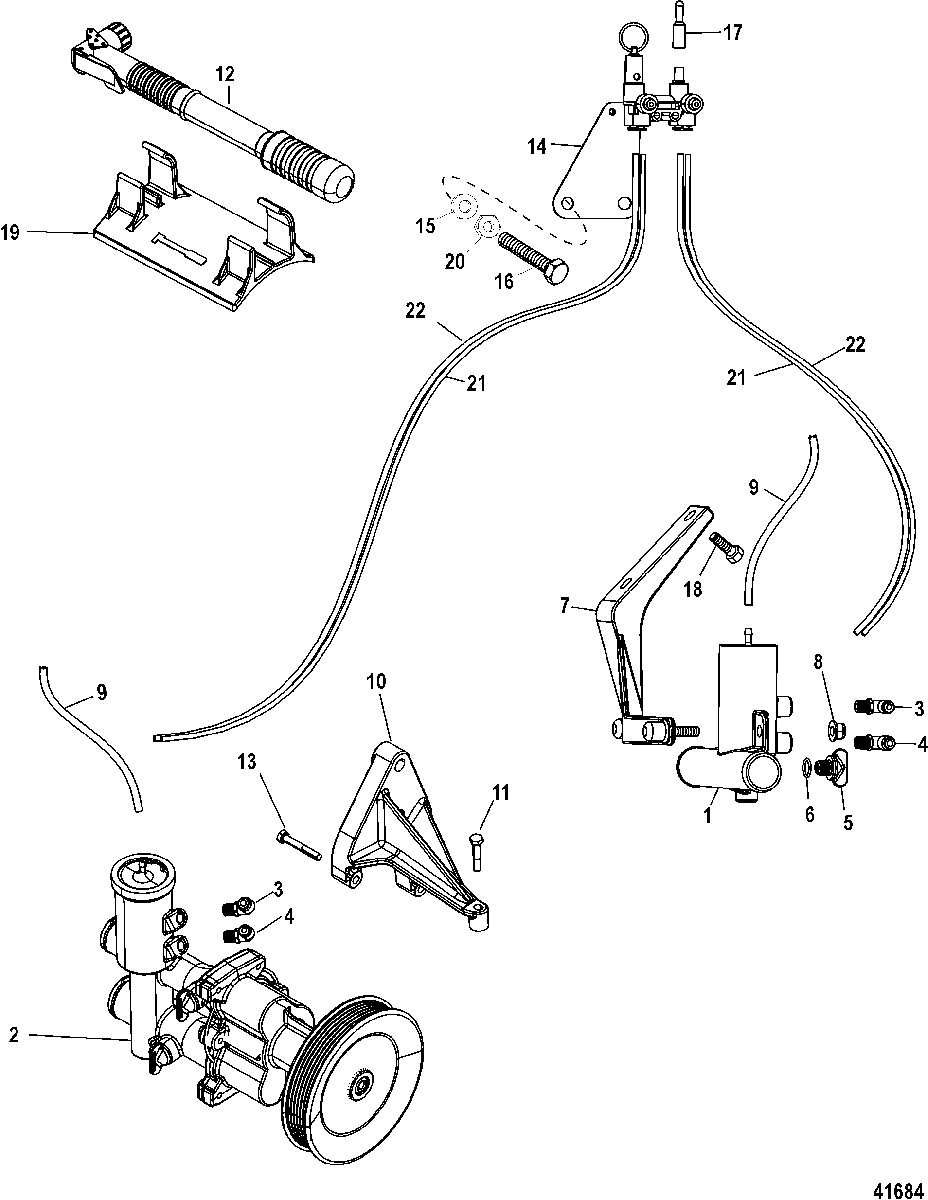

Water Drain System для Mercruiser - 8.1L INBOARD (Base) 0W690000 THRU 0W698172

  • №
    Артикул
    Название
  • 1
    863717A2 ACTUATOR ASSEMBLY, Water Drain
    Port
    ACTUATOR ASSEMBLY, Water Drain
    Port
  • 2
    46-8M0137218 PUMP KIT, Sea Water
    See "Seawater Pump" for Component Break down
    PUMP KIT, Sea Water
    See "Seawater Pump" for Component Break down
  • 3
    22-8M0082321 FITTING, Gray (90 Degree)
    FITTING, Gray (90 Degree)
  • 4
    22-8M0082322 FITTING, Orange (90 Degree)
    FITTING, Orange (90 Degree)
  • 5
    22-8M0119211 PLUG ASSEMBLY, (.500-13) Blue
    PLUG ASSEMBLY, (.500-13) Blue
  • 6
    25-26802 O-RING, (.424 x .103)
    O-RING, (.424 x .103)
  • 7
    863863T BRACKET, Actuator Mounting
    Port
    BRACKET, Actuator Mounting
    Port
  • 8
    11-826365 NUT, (M8), Nylock
    NUT, (M8), Nylock
  • 9
    32-8630561 HOSE, (42.00 Inches Bulk) Black, Air
    HOSE, (42.00 Inches Bulk) Black, Air
  • 10
    863859T BRACKET
    BRACKET
  • 11
    10-4000331 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 12
    863057 PUMP, Air
    PUMP, Air
  • 13
    10-8M2012296 SCREW, (M6 x 40)
    SCREW, (M6 x 40)
  • 14
    862969A2 MANIFOLD ASSEMBLY, Air
    MANIFOLD ASSEMBLY, Air
  • 15
    12-4002314 WASHER
    WASHER
  • 16
    10-864887 SCREW, (M5)
    SCREW, (M5)
  • 17
    19-883503 CAP, Service Point
    CAP, Service Point
  • 18
    10-4000374 SCREW, (M10 x 16)
    SCREW, (M10 x 16)
  • 19
    863059 BRACKET, Air Pump
    BRACKET, Air Pump
  • 20
    11-826292 NUT, (M10) Brass/Nickel Plated
    NUT, (M10) Brass/Nickel Plated
  • 21
    32-8M0077561 HOSE, (40.00 Inches Bulk) Green
    Cut Starboard to 25.5 Inch, Port Hose To 23 Inch
    HOSE, (40.00 Inches Bulk) Green
    Cut Starboard to 25.5 Inch, Port Hose To 23 Inch
  • 22
    32-8M0062601 HOSE, (40.00 Inches Bulk) Grey
    Starboard 40 Inch, Port Hose To 23 Inch
    HOSE, (40.00 Inches Bulk) Grey
    Starboard 40 Inch, Port Hose To 23 Inch
