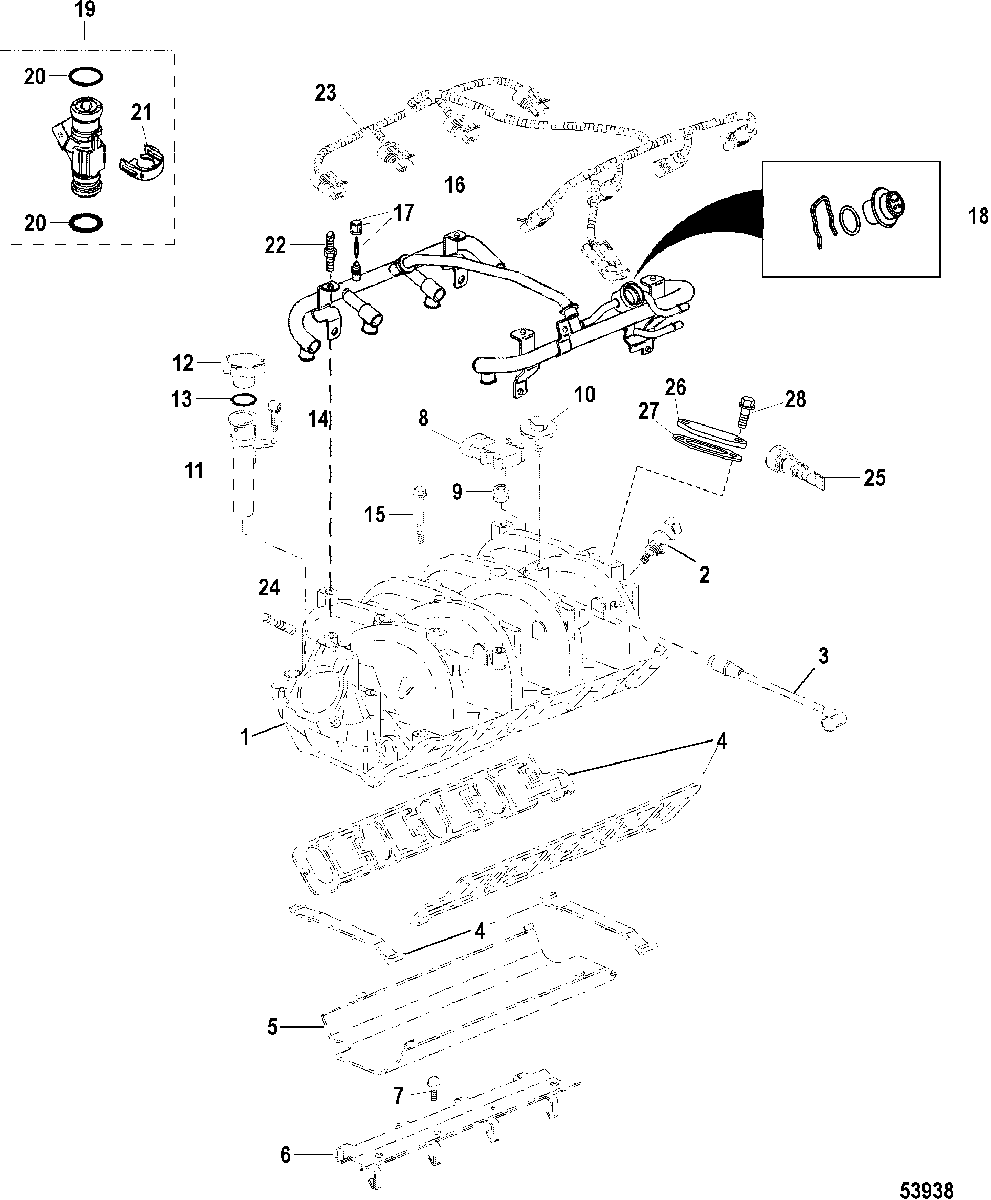

Intake Manifold для Mercruiser - 8.1L INBOARD (Base) 0W690000 THRU 0W698172

  • №
    Артикул
    Название
  • 1
    8M0064079 MANIFOLD, Intake
    MANIFOLD, Intake
  • 2
    805223T SENSOR, Manifold Air Temperature
    SENSOR, Manifold Air Temperature
  • 3
    32-881734 HOSE, Fuel Pressure Regulator
    HOSE, Fuel Pressure Regulator
  • 4
    27-895235 GASKET SET, Intake Manifold and Valley
    GASKET SET, Intake Manifold and Valley
  • 5
    881689 SHIELD, Oil Splash
    SHIELD, Oil Splash
  • 6
    8M0050807 RETAINER, Valve Lifter Guide
    RETAINER, Valve Lifter Guide
  • 7
    10-881570 SCREW, (M8 x 25 MM)
    SCREW, (M8 x 25 MM)
  • 8
    8M0054726 SENSOR, Manifold Air Pressure
    SENSOR, Manifold Air Pressure
  • 9
    25-881733 SEAL, M.A.P. Sensor
    SEAL, M.A.P. Sensor
  • 10
    10-881646 SCREW, (M6 x 20)
    SCREW, (M6 x 20)
  • 11
    864996 TUBE, Oil Fill
    TUBE, Oil Fill
  • 12
    864997 CAP, Oil Fill Tube
    CAP, Oil Fill Tube
  • 13
    NSS NOT SOLD SEPARATE, SEAL-Oil Fill Cap
    NOT SOLD SEPARATE, SEAL-Oil Fill Cap
  • 14
    10-881645 BOLT, (M6 x 20), Oil Fill Tube
    BOLT, (M6 x 20), Oil Fill Tube
  • 15
    10-895234001 SCREW, (M6 x 73)
    SCREW, (M6 x 73)
  • 16
    8M0132702 FUEL RAIL, Fuel Injection
    FUEL RAIL, Fuel Injection
  • 17
    22-802631 VALVE AND CAP KIT, Fuel Pressure Service
    VALVE AND CAP KIT, Fuel Pressure Service
  • 18
    8M0046753 REGULATOR KIT, Fuel Pressure
    REGULATOR KIT, Fuel Pressure
  • 19
    881693002 INJECTOR, 3 hole pintle
    INJECTOR, 3 hole pintle
  • 19
    881693001 INJECTOR, 2 hole pintle
    INJECTOR, 2 hole pintle
  • 20
    25-881694001 SEAL KIT
    SEAL KIT
  • 21
    881695001 RETAINER KIT, Fuel Injector
    RETAINER KIT, Fuel Injector
  • 22
    16-881968001 STUD, Fuel Injection Rail
    STUD, Fuel Injection Rail
  • 23
    84-8M0127600 HARNESS ASSEMBLY, Fuel Injection Wiring
    HARNESS ASSEMBLY, Fuel Injection Wiring
  • 24
    16-8M0077391 STUD, Throttle Body
    STUD, Throttle Body
  • 25
    22-8623601 PLUG, Fuel Rail Outlet
    Use with Design-I Regulator
    PLUG, Fuel Rail Outlet
    Use with Design-I Regulator
  • 26
    881725 PLATE, Block Off
    (Digital Throttle Shift)
    PLATE, Block Off
    (Digital Throttle Shift)
  • 27
    27-863285 GASKET
    (Digital Throttle Shift)
    GASKET
    (Digital Throttle Shift)
  • 28
    10-898101392 SCREW, (M8 x 30)
    (Digital Throttle Shift)
    SCREW, (M8 x 30)
    (Digital Throttle Shift)
