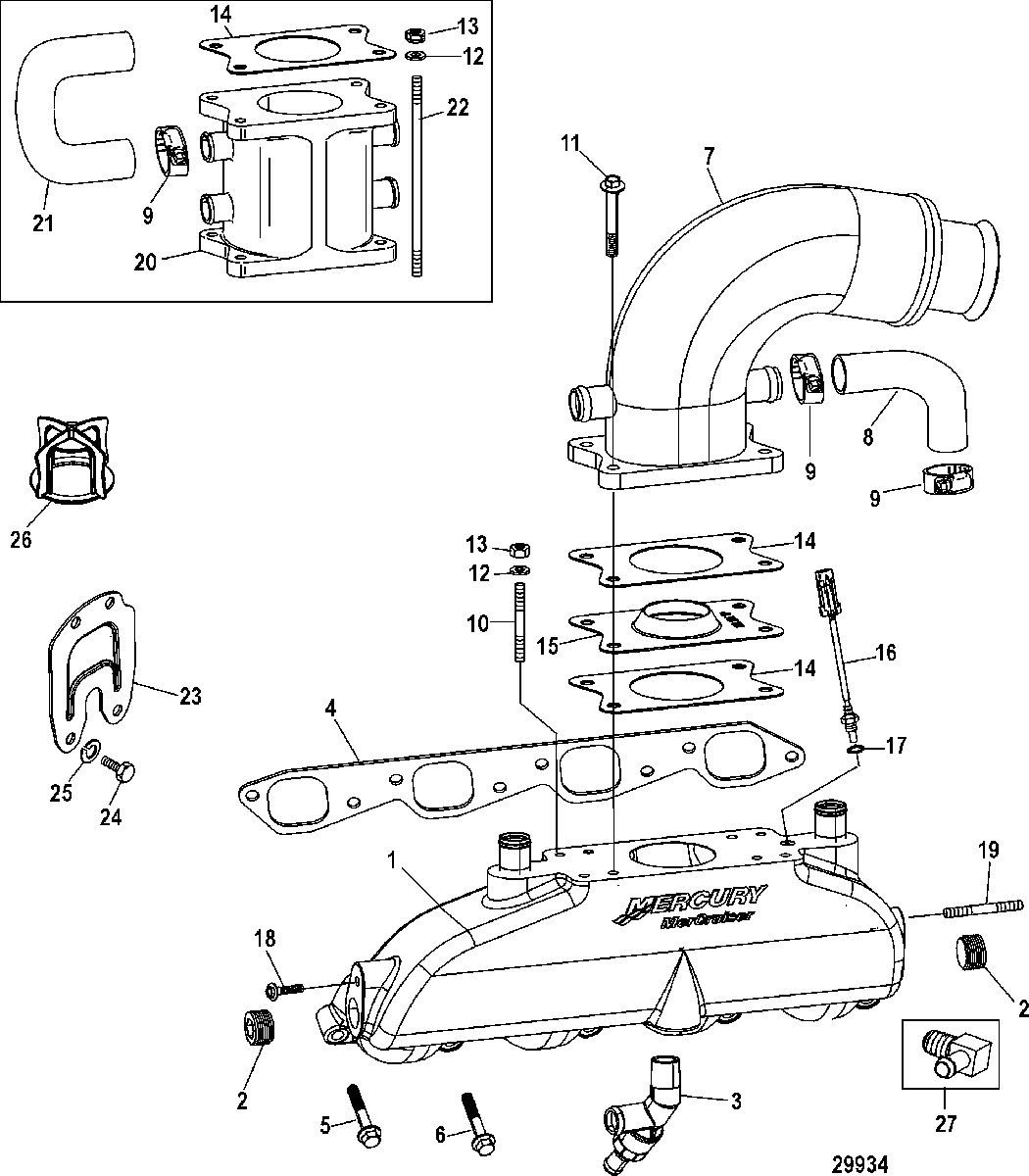

Exhaust Manifold, Elbow and Riser для Mercruiser - 8.1L INBOARD (Base) 0W690000 THRU 0W698172

  • №
    Артикул
    Название
  • 1
    866178T01 MANIFOLD ASSEMBLY, Cast-Iron Alloy, Exhaust
    MANIFOLD ASSEMBLY, Cast-Iron Alloy, Exhaust
  • 2
    22-12524 PLUG, (.375-18 x .475) Brass
    PLUG, (.375-18 x .475) Brass
  • 3
    22-865341A03 FITTING ASSEMBLY, Drain - Stainless Steel
    Port Exhaust Manifold
    FITTING ASSEMBLY, Drain - Stainless Steel
    Port Exhaust Manifold
  • 3
    22-865828A02 FITTING ASSEMBLY, Drain
    Starboard Exhaust Manifold
    FITTING ASSEMBLY, Drain
    Starboard Exhaust Manifold
  • 4
    27-46820 GASKET, Exhaust Manifold to Cylinder Head
    GASKET, Exhaust Manifold to Cylinder Head
  • 5
    10-40011151 SCREW, (M8 x 35) Stainless Steel
    SCREW, (M8 x 35) Stainless Steel
  • 6
    10-40011158 SCREW, (M8 x 70) Stainless Steel
    SCREW, (M8 x 70) Stainless Steel
  • 7
    865331A02 ELBOW, Exhaust
    Standard Rise
    ELBOW, Exhaust
    Standard Rise
  • 7
    865332A02 ELBOW, Exhaust
    2 Inch Rise
    ELBOW, Exhaust
    2 Inch Rise
  • 8
    32-863095 HOSE, Elbow to Manifold
    HOSE, Elbow to Manifold
  • 9
    54-815504216 CLAMP, Worm Gear (1.56 Diameter)
    CLAMP, Worm Gear (1.56 Diameter)
  • 10
    16-8204511 STUD, (M8 x 55)
    STUD, (M8 x 55)
  • 11
    10-4010725 SCREW, (M8 x 25)
    SCREW, (M8 x 25)
  • 12
    12-12038 WASHER
    WASHER
  • 13
    11-4002030 NUT, (M8)
    NUT, (M8)
  • 14
    27-862356 GASKET, Elbow to Manifold
    GASKET, Elbow to Manifold
  • 15
    8M2000433 TURBULATOR, Exhaust
    TURBULATOR, Exhaust
  • 16
    885342002 SENSOR ASSEMBLY, Temperature
    SENSOR ASSEMBLY, Temperature
  • 17
    25-627021 O-RING, (.301 x .070)
    O-RING, (.301 x .070)
  • 18
    10-4010716 SCREW, (M8 x 16)
    SCREW, (M8 x 16)
  • 19
    16-424632 STUD, (M8 x 37.1)
    STUD, (M8 x 37.1)
  • 20
    8M0124066 RISER, (6 Inch)
    RISER, (6 Inch)
  • 21
    32-863102 HOSE
    HOSE
  • 22
    16-863121 STUD, (M8 x 194)
    STUD, (M8 x 194)
  • NS
    19-8M0074364 COVER, Hose Clamp End
    COVER, Hose Clamp End
  • 23
    861776A2 PLATE KIT
    PLATE KIT
  • 24
    10-8M0113180 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 25
    13-41471 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 26
    860222A1 RESONATOR, Exhaust
    RESONATOR, Exhaust
  • 27
    8M2000159 ELBOW
    ELBOW
