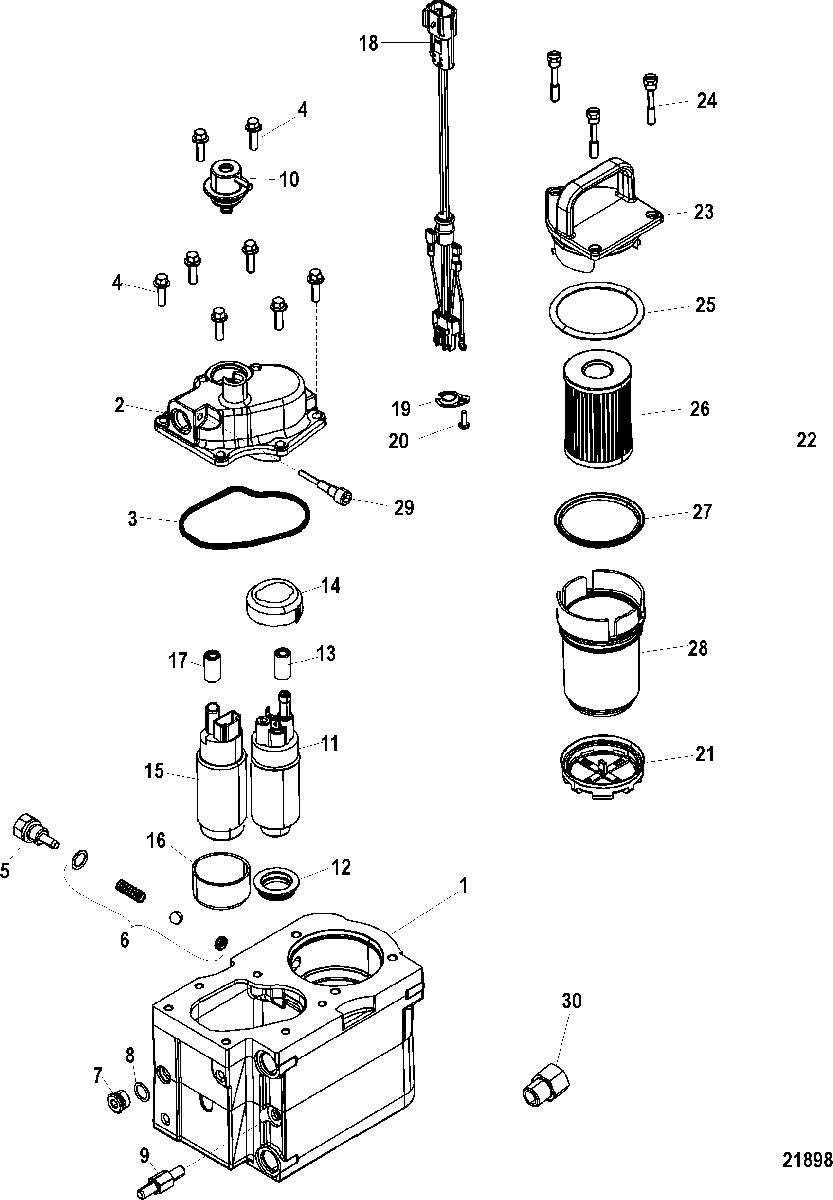

Fuel Module Components для Mercruiser - 8.1L INBOARD (Base) 0W690000 THRU 0W698172

  • №
    Артикул
    Название
  • -
    864650A05 MODULE KIT, Fuel Pump, Complete
    MODULE KIT, Fuel Pump, Complete
  • 1
    892664T01 HOUSING, Fuel Module
    HOUSING, Fuel Module
  • 2
    8M0130861 COVER, Fuel Module Housing
    COVER, Fuel Module Housing
  • 3
    26-892683 SEAL
    SEAL
  • 4
    10-892684 SCREW
    SCREW
  • 5
    892670A01 CHECK VALVE KIT
    CHECK VALVE KIT
  • 6
    NSS NOT SOLD SEPARATE, Check Valve
    NOT SOLD SEPARATE, Check Valve
  • 7
    NSS NOT SOLD SEPARATE, Plug
    NOT SOLD SEPARATE, Plug
  • 8
    NSS NOT SOLD SEPARATE, Seal
    NOT SOLD SEPARATE, Seal
  • 9
    16-865326 STUD, (M8 x 30)
    STUD, (M8 x 30)
  • 10
    892681 REGULATOR
    REGULATOR
  • 11
    866170A01 PUMP ASSEMBLY, Fuel - Low Pressure
    PUMP ASSEMBLY, Fuel - Low Pressure
  • 12
    NSS NOT SOLD SEPARATE, Seal
    NOT SOLD SEPARATE, Seal
  • 13
    NSS NOT SOLD SEPARATE, Seal
    NOT SOLD SEPARATE, Seal
  • 14
    NSS NOT SOLD SEPARATE, Isolator, Lift Pump
    NOT SOLD SEPARATE, Isolator, Lift Pump
  • 15
    866169T01 PUMP ASSEMBLY, Fuel - High Pressure
    PUMP ASSEMBLY, Fuel - High Pressure
  • 16
    NSS NOT SOLD SEPARATE, Isolator
    NOT SOLD SEPARATE, Isolator
  • 17
    NSS NOT SOLD SEPARATE, Seal
    NOT SOLD SEPARATE, Seal
  • 18
    84-8M0056175 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 19
    NSS NOT SOLD SEPARATE, Retainer
    NOT SOLD SEPARATE, Retainer
  • 20
    NSS NOT SOLD SEPARATE, Screw
    NOT SOLD SEPARATE, Screw
  • 21
    35-892665 FILTER
    FILTER
  • 22
    892687A02 CARTRIDGE ASSEMBLY, Fuel Filter
    CARTRIDGE ASSEMBLY, Fuel Filter
  • 23
    NSS NOT SOLD SEPARATE, Cap, Fuel Filter Cartridge
    NOT SOLD SEPARATE, Cap, Fuel Filter Cartridge
  • 24
    NSS NOT SOLD SEPARATE, Screw
    NOT SOLD SEPARATE, Screw
  • 25
    NSS NOT SOLD SEPARATE, Seal
    NOT SOLD SEPARATE, Seal
  • 26
    35-8M0093688 FILTER
    FILTER
  • 27
    NSS NOT SOLD SEPARATE, Seal
    NOT SOLD SEPARATE, Seal
  • 28
    NSS NOT SOLD SEPARATE, Cup, Fuel Filter Cartridge
    NOT SOLD SEPARATE, Cup, Fuel Filter Cartridge
  • 29
    10-866114 SCREW, (.250-28) Special
    SCREW, (.250-28) Special
  • 30
    22-88517 FITTING, Reducing
    FITTING, Reducing
