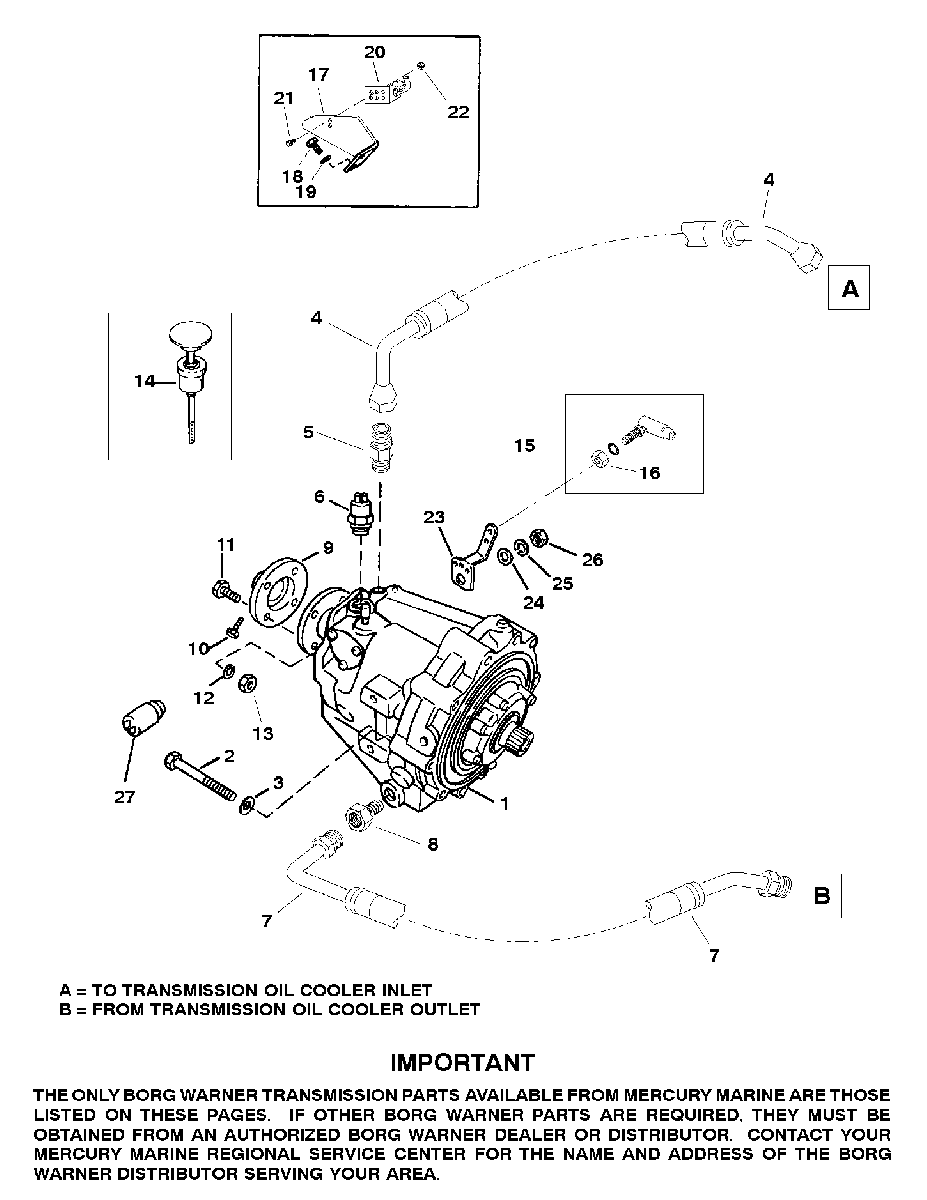

TRANSMISSION AND RELATED PARTS (BORG WARNER 72) для Mercruiser - 454 MAG. MPI (SKI) GEN. VI GM 454 V-8 1996-1997 0F820100 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    47810A19 TRANSMISSION
    (1.1:1 RATIO)
    TRANSMISSION
    (1.1:1 RATIO)
  • 2
    10-60179 SCREW (7/16-14 x 3-1/2)
    SCREW (7/16-14 x 3-1/2)
  • 3
    13-32993 LOCKWASHER (7/16 in.)
    LOCKWASHER (7/16 in.)
  • 4
    32-807414 HOSE-Oil (to Oil Cooler)
    HOSE-Oil (to Oil Cooler)
  • 5
    22-807272 ADAPTOR
    ADAPTOR
  • 6
    87-88031 SWITCH-Temperature
    SWITCH-Temperature
  • 7
    32-807417 HOSE-Oil (From Oil Cooler)
    HOSE-Oil (From Oil Cooler)
  • 8
    22-93190 CONNECTOR
    CONNECTOR
  • 9
    79476A1 FLANGE ASSEMBLY (1 in.)
    FLANGE ASSEMBLY (1 in.)
  • 9
    79476A2 FLANGE ASSEMBLY (1-1/8 in.)
    FLANGE ASSEMBLY (1-1/8 in.)
  • 9
    79476A3 FLANGE ASSEMBLY (1-1/4 in.)
    FLANGE ASSEMBLY (1-1/4 in.)
  • 9
    79476A4 FLANGE ASSEMBLY (1-3/8 in.)
    FLANGE ASSEMBLY (1-3/8 in.)
  • 9
    79476A5 FLANGE ASSEMBLY (1-1/2 in.)
    FLANGE ASSEMBLY (1-1/2 in.)
  • 9
    79476A6 FLANGE ASSEMBLY (1-3/4 in.)
    FLANGE ASSEMBLY (1-3/4 in.)
  • 9
    79476A7 FLANGE ASSEMBLY (2 in.)
    FLANGE ASSEMBLY (2 in.)
  • 10
    10-60171 SCREW (3/8-16 x 1-1/4 in.)
    SCREW (3/8-16 x 1-1/4 in.)
  • 10
    10-60169 SCREW (3/8-16 x 3/4 in.)
    SCREW (3/8-16 x 3/4 in.)
  • 11
    10-805159 SCREW (7/16-20 x 1-1/2 in.)
    SCREW (7/16-20 x 1-1/2 in.)
  • 12
    13-32993 LOCKWASHER (7/16 in.)
    LOCKWASHER (7/16 in.)
  • 13
    11-22024 NUT (7/16-20)
    NUT (7/16-20)
  • 14
    806701A1 DIPSTICK
    DIPSTICK
  • 15
    807484 BALL JOINT KIT
    BALL JOINT KIT
  • 16
    11-8267089 NUT (1/4-28)
    NUT (1/4-28)
  • 17
    807719T BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 18
    10-54615 SCREW (1/4-20 x 5/8 in.)
    SCREW (1/4-20 x 5/8 in.)
  • 19
    13-26992 LOCKWASHER (1/4 in.)
    LOCKWASHER (1/4 in.)
  • 20
    807485T BRACKET-Quick Release
    BRACKET-Quick Release
  • 21
    10-89766 SCREW (#10-32 x 5/8 in.)
    SCREW (#10-32 x 5/8 in.)
  • 22
    11-826709106 NUT (#10-32)
    NUT (#10-32)
  • 23
    43325 LEVER-Shift
    LEVER-Shift
  • 24
    12-20722 WASHER
    WASHER
  • 25
    13-26993 LOCKWASHER (5/16 in.)
    LOCKWASHER (5/16 in.)
  • 26
    11-22053 NUT (5/16-24)
    NUT (5/16-24)
  • 27
    47613 SWITCH-Neutral Safety
    SWITCH-Neutral Safety
