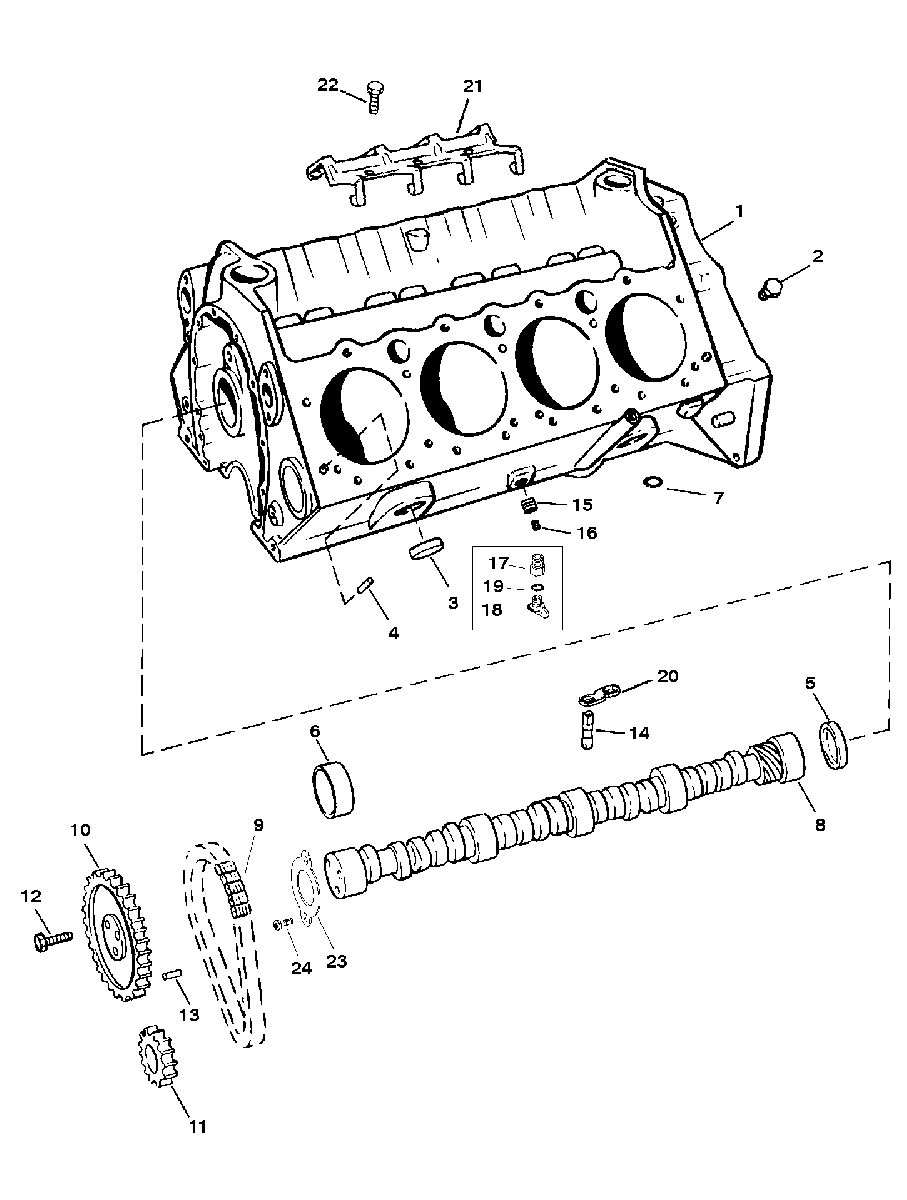

CYLINDER BLOCK AND CAMSHAFT для Mercruiser - 454 MAG. MPI (SKI) GEN. VI GM 454 V-8 1996-1997 0F820100 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    NSS CYLINDER BLOCK
    (ORDER LONG BLOCK 807744A1)
    CYLINDER BLOCK
    (ORDER LONG BLOCK 807744A1)
  • 2
    22-32561 PLUG-Pipe (1/4 in.)
    PLUG-Pipe (1/4 in.)
  • 2
    22-12524 PLUG-Pipe (3/8 in.)
    PLUG-Pipe (3/8 in.)
  • 3
    19-34270 PLUG-Expansion (1-5/8 in. Dia.)
    PLUG-Expansion (1-5/8 in. Dia.)
  • 4
    17-52190 PIN-Dowel
    PIN-Dowel
  • 5
    19-94140 PLUG-Expansion (Rear Camshaft Hole)
    PLUG-Expansion (Rear Camshaft Hole)
  • 6
    23-85684 BEARING SET
    BEARING SET
  • 7
    25-69756 O-RING (1/2 in. Dia.) (Rear Main Cap Oil Passage)
    O-RING (1/2 in. Dia.) (Rear Main Cap Oil Passage)
  • 8
    431-850478T CAMSHAFT
    CAMSHAFT
  • 9
    845796T CHAIN-Timing
    CHAIN-Timing
  • 10
    43-845795T SPROCKET-Camshaft
    SPROCKET-Camshaft
  • 11
    43-845794T SPROCKET-Crankshaft
    SPROCKET-Crankshaft
  • 12
    10-8M0043993 SCREW (5/16-18 x 3/4 in.)
    SCREW (5/16-18 x 3/4 in.)
  • 13
    17-843378 PIN-Dowel (1/4 in. Dia.)
    PIN-Dowel (1/4 in. Dia.)
  • 14
    850466T LIFTER-Roller
    LIFTER-Roller
  • 15
    22-48556 BUSHING-Reducer
    BRASS DRAIN PLUG
    BUSHING-Reducer
    BRASS DRAIN PLUG
  • 16
    22-328022 PLUG-Pipe (1/8 in.)
    BRASS DRAIN PLUG
    PLUG-Pipe (1/8 in.)
    BRASS DRAIN PLUG
  • 17
    22-860088 BUSHING-Reducer
    PLASTIC DRAIN PLUG
    BUSHING-Reducer
    PLASTIC DRAIN PLUG
  • 18
    22-8M0119211 PLUG-Drain
    PLASTIC DRAIN PLUG
    PLUG-Drain
    PLASTIC DRAIN PLUG
  • 19
    25-32509 QUAD RING
    PLASTIC DRAIN PLUG
    QUAD RING
    PLASTIC DRAIN PLUG
  • 20
    845754 GUIDE-Lifter
    GUIDE-Lifter
  • 21
    8M0050807 RETAINER-Lifter Guide
    .
    RETAINER-Lifter Guide
    .
  • 22
    10-841389 SCREW-Retainer
    SCREW-Retainer
  • 23
    845941 RETAINER-Camshaft
    RETAINER-Camshaft
  • 24
    10-845943 BOLT (1/4-20 x 1/2 in.)
    BOLT (1/4-20 x 1/2 in.)
  • -
    807744A1 MARINE LONG BLOCK ENGINE
    (SEE NOTE)
    MARINE LONG BLOCK ENGINE
    (SEE NOTE)
  • -
    27-811572A94 GASKET SET-Overhaul
    GASKET SET-Overhaul
  • -
    92-809825 SEALER-Red RTV
    SEALER-Red RTV
  • -
    92-34227Q02 PERFECT SEAL
    PERFECT SEAL
